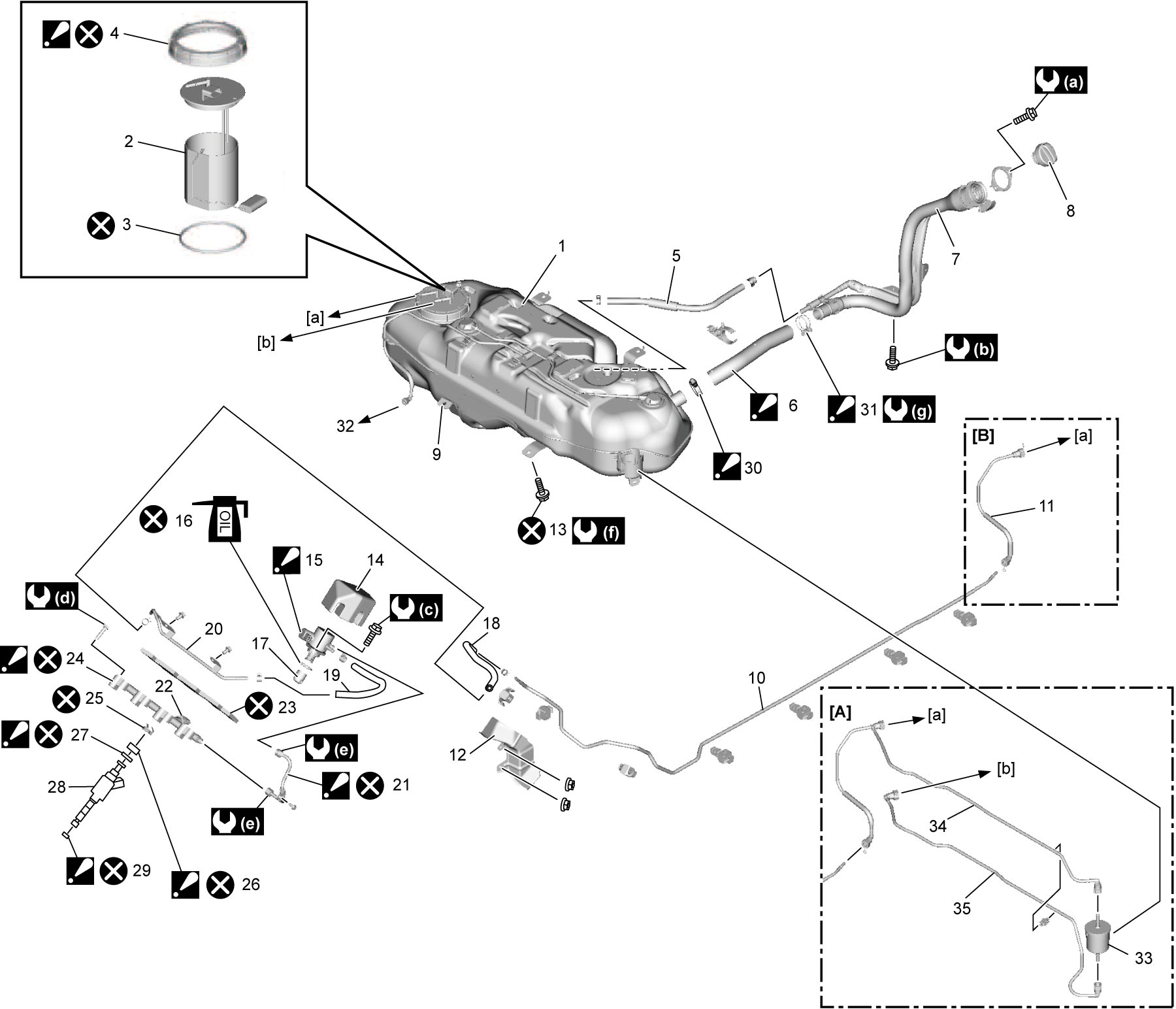

Fuel System Components
Precautions: Precautions for Fuel System Service · General safety (00)
| [A]: | Market code P37 | 14. | High pressure fuel pump cover |
|
Seal ring : For installation, refer to Fuel Injector Removal and Installation:K14C. |
| [B]: | Except P37 |
|
High pressure fuel pump : For installation, refer to High Pressure Fuel Pump Removal and Installation:K14C. |
|
Fuel tank filler hose clamp : For installation, refer to Fuel Hose Disconnection and Reconnection:K14C. |
| 1. | Fuel tank |
|
High pressure fuel pump O-ring : Apply engine oil. |
|
Fuel tank filler clamp : For installation, refer to Fuel Hose Disconnection and Reconnection:K14C. |
| 2. | Fuel pump assembly |
|
Fuel pump tappet : Apply engine oil to roller and periphery of tappet. |
32. | To EVAP canister |
| 3. | O-ring | 18. | Fuel feed hose No.1 | 33. | Fuel filter |
|
|
Fuel pump lock nut : For tightening procedure, refer to Fuel Pump Assembly Removal and Installation:K14C. |
19. | Fuel feed hose No.2 | 34. | Fuel feed pipe (between fuel pump assembly and fuel filter) |
| 5. | Breather hose | 20. | Fuel feed pipe (engine side) | 35. | Fuel pipe (between fuel filter and fuel feed pipe) |
|
|
Fuel tank filler hose : For installation, refer to Fuel Hose Disconnection and Reconnection:K14C. |
|
High pressure pipe : For tightening order, refer to High Pressure Pipe Removal and Installation:K14C. |
|
2.0 N·m (0.20 kgf-m, 1.5 lbf-ft) |
| 7. | Fuel filler neck | 22. | Fuel pressure sensor |
|
5.5 N·m (0.56 kgf-m, 4.0 lbf-ft) |
| 8. | Fuel filler cap | 23. | Fuel delivery pipe silencer |
|
13 N·m (1.3 kgf-m, 9.5 lbf-ft) |
| 9. | Fuel tank belt |
|
Fuel delivery pipe : For installation, refer to Fuel Injector Removal and Installation:K14C. |
|
25 N·m (2.5 kgf-m, 18.5 lbf-ft) |
| 10. | Fuel feed pipe (body side) | 25. | Fuel injector clip |
|
33 N·m (3.4 kgf-m, 24.5 lbf-ft) |
| 11. | Fuel feed pipe (fuel pump side) |
|
Injector O-ring : Apply a bit of gasoline to install. |
|
45 N·m (4.6 kgf-m, 33.5 lbf-ft) |
| 12. | Fuel pipe protector |
|
Back up ring : For installation, refer to Fuel Injector Removal and Installation:K14C. |
|
1.5 N·m (0.15 kgf-m, 1.5 lbf-ft) |
| 13. | Fuel tank bolt | 28. | Fuel injector |
|
Do not reuse. |
