Suzuki Vitara (LY) 2016-2017 · Service Manual Diagnostic Information and Procedures

DTC P2719 / P2720 / P2721

Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)

DTC Detecting Condition and Trouble Area
DTC detecting condition Trouble area
P2719: Pressure Control Solenoid “D” Control Circuit Range / Performance
Difference between measured circuit current of pressure control solenoid valve “D” and commanded circuit current is higher than specified value.
(1 D/C detection logic)
•Pressure control solenoid valve “D”
•Solenoid harness with ATF temperature sensor
•TCM
P2720: Pressure Control Solenoid “D” Control Circuit Low
Pressure control solenoid valve “D” drive circuit is open or shorted to ground.
(1 D/C detection logic)
P2721: Pressure Control Solenoid “D” Control Circuit High
Pressure control solenoid valve “D” drive circuit is shorted to power supply.
(1 D/C detection logic)

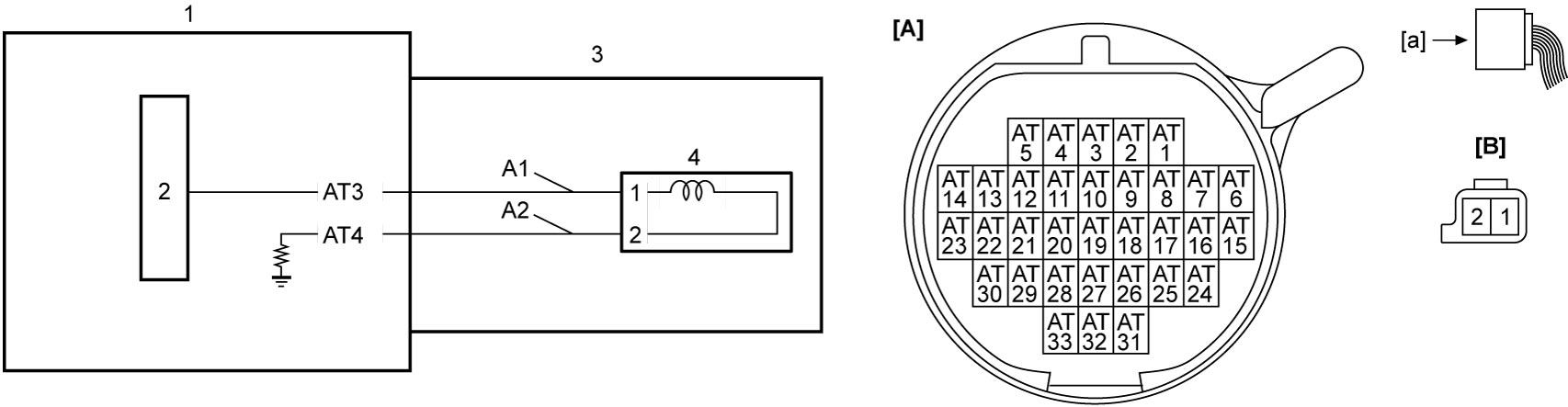

Circuit Diagram
[A]: Solenoid harness connector (View: [a]) A2: Pressure control solenoid valve “D” ground circuit 3. A/T
[B]: Pressure control solenoid valve “D” connector (View: [a]) 1. TCM 4. Pressure control solenoid valve “D”
A1: Pressure control solenoid valve “D” drive circuit 2. CPU
DTC Confirmation Procedure
NOTE:
Check that the following condition is met in this “DTC Confirmation Procedure”.
•DTC U0073 or U0100 is not detected.
1)Start engine.
2)Shift select lever from P to M range.
DTC Troubleshooting
Step Action Yes No
1
Was “A/T Control System Check” performed?
Go to Step 2.
2
Pressure control solenoid valve “D” and solenoid harness check
1)Check pressure control solenoid valve “D” and solenoid harness. icon
Is check result OK?
Check for intermittent trouble. icon
Go to Step 3.
3
Solenoid harness check
1)Remove transaxle side oil pan. icon
2)Disconnect pressure control solenoid valve “D” connector.
3)Check for proper terminal connections to solenoid harness connector and pressure control solenoid valve “D” connector.
4)If connections are OK, check the following points.
•Resistance of “A1” and “A2” circuits: less than 1 Ω
•Resistance between each of “A1” and “A2” circuits and ground: infinity
•Resistance between “A1” circuit terminal and other terminal at solenoid harness connector: infinity
•Resistance between “A2” circuit terminal and other terminal at solenoid harness connector: infinity
•Voltage of “A1” and “A2” circuits: approx. 0 V (When ignition is “ON”)
Is check result OK?
Go to Step 4.
Replace solenoid harness with ATF temperature sensor. icon
4
Pressure control solenoid valve “D” check
1)Check pressure control solenoid valve “D”. icon
Is check result OK?
Substitute a known-good TCM and recheck DTC. icon
Replace valve body assembly. icon
