Transaxle Case Disassembly and Reassembly
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
Disassembly

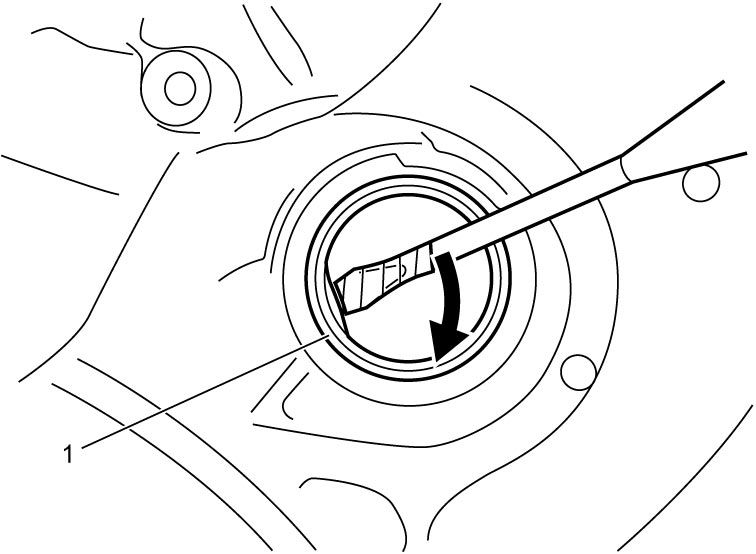

1)Remove differential side oil seal (1) using a flat-bladed screwdriver or the like.

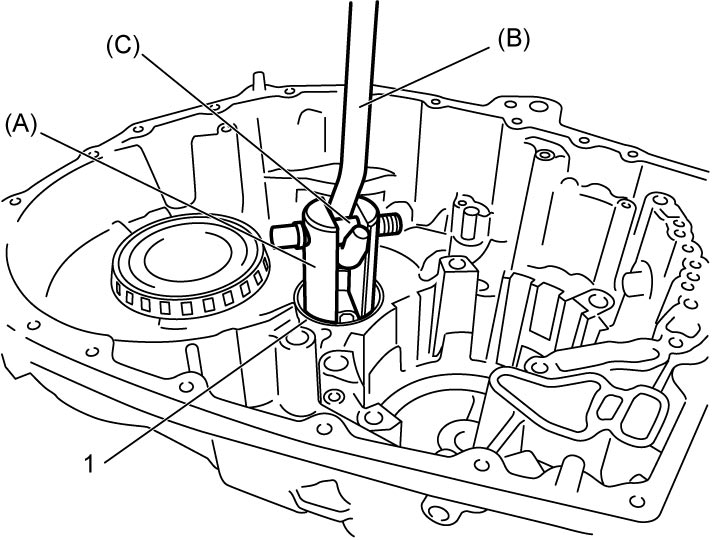

2)Remove pinion and counter driven gear left taper roller bearing outer race (1) and shim using special tools.

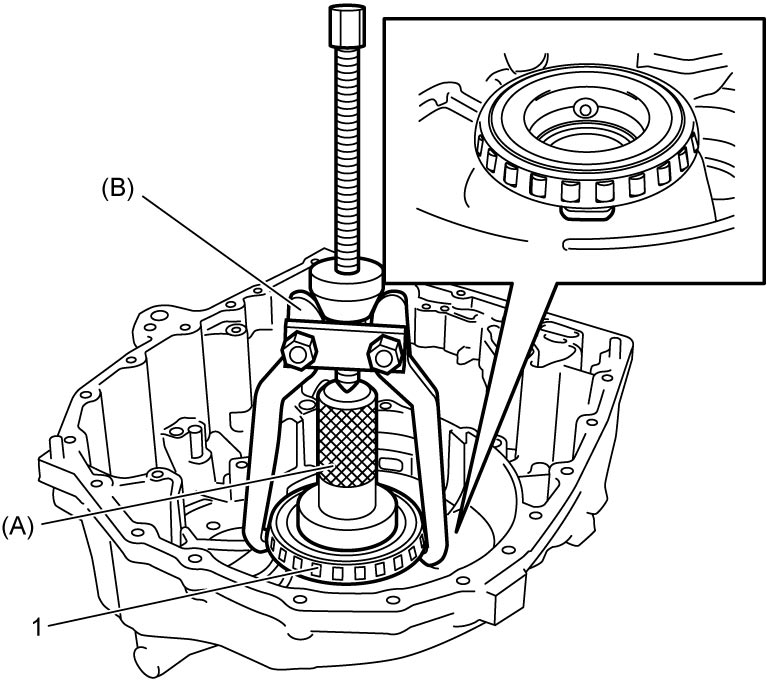

3)Remove differential side left taper roller bearing (1) and shim using special tools.

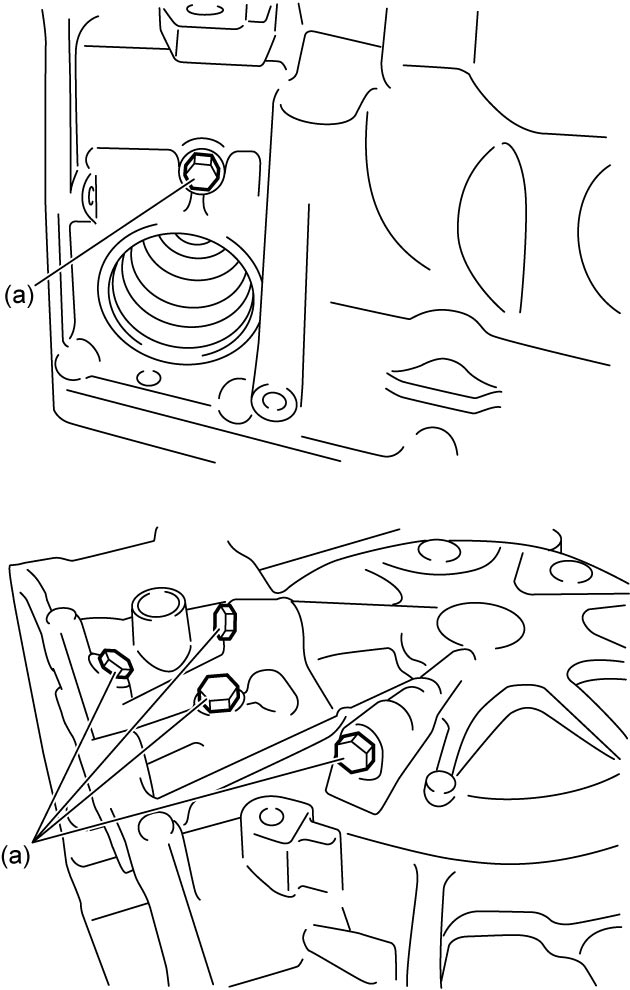

4)Remove transaxle case plugs (1).
Reassembly
1)After applying ATF to new O-rings, fit them to transaxle case plugs. Then install plugs to transaxle case.

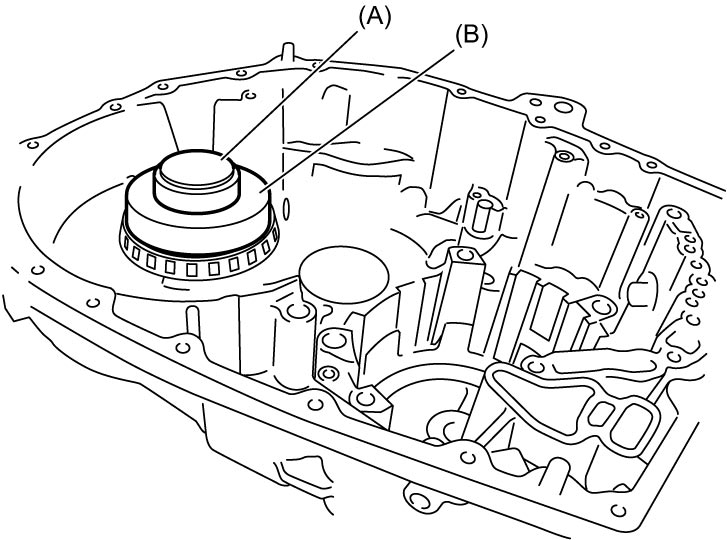

2)Using special tools, assemble shim and differential side left bearing.
NOTE:
Use shim with the same thickness as removed one.

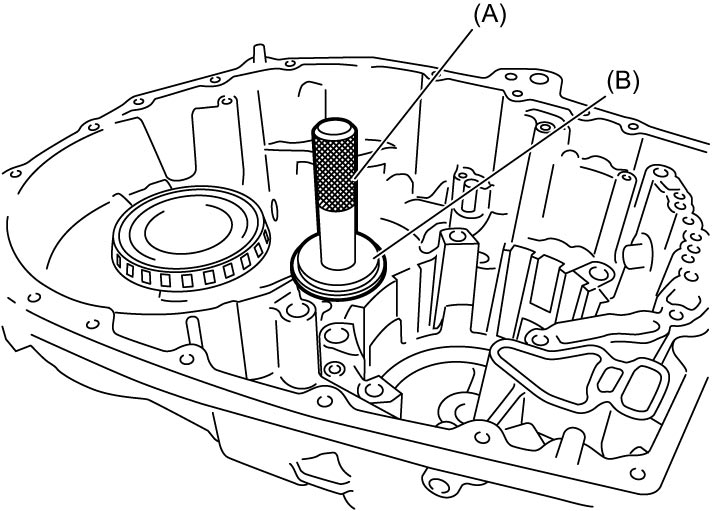

3)Using special tools, install shim and pinion and counter driven gear left bearing outer race.
NOTE:
Use shim with the same thickness as removed one.

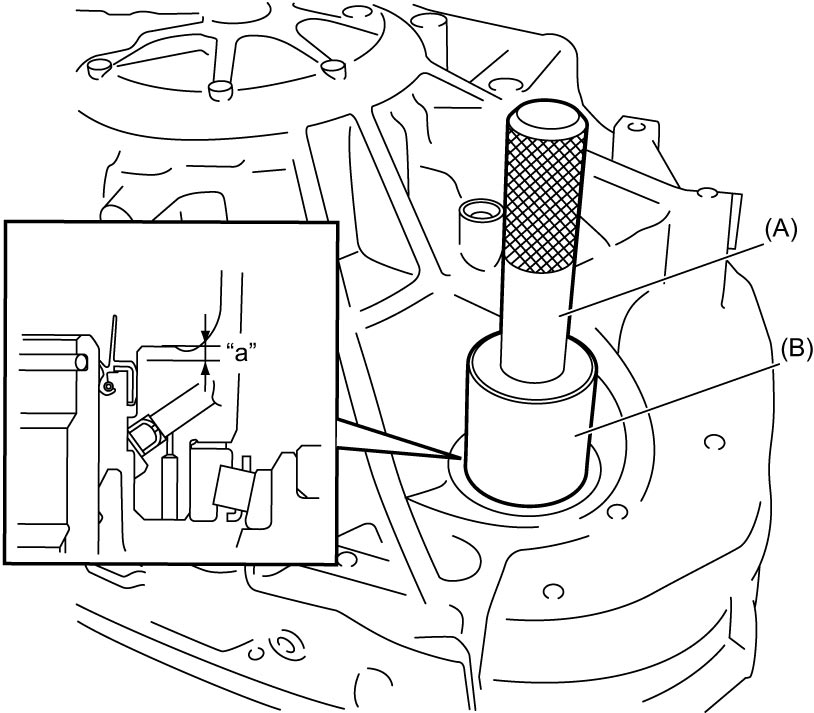

4)Using special tools, install new differential side oil seal to transaxle case evenly at specified position shown in figure.
Differential side oil seal installing depth
“a”: 2.6 – 3.6 mm (0.11 – 0.14 in.)
