DTC C1131
Precautions: Precautions for Diagnosing Trouble · Precautions for Steering · General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detecting condition | Trouble area |
|---|---|
|
C1131: Rotation Angle Sensor Signal Malfunction Rotation angle sensor output signal error continues for more than specified period. |
•Rotation angle sensor (steering column assembly)
•P/S control module (steering column assembly) |

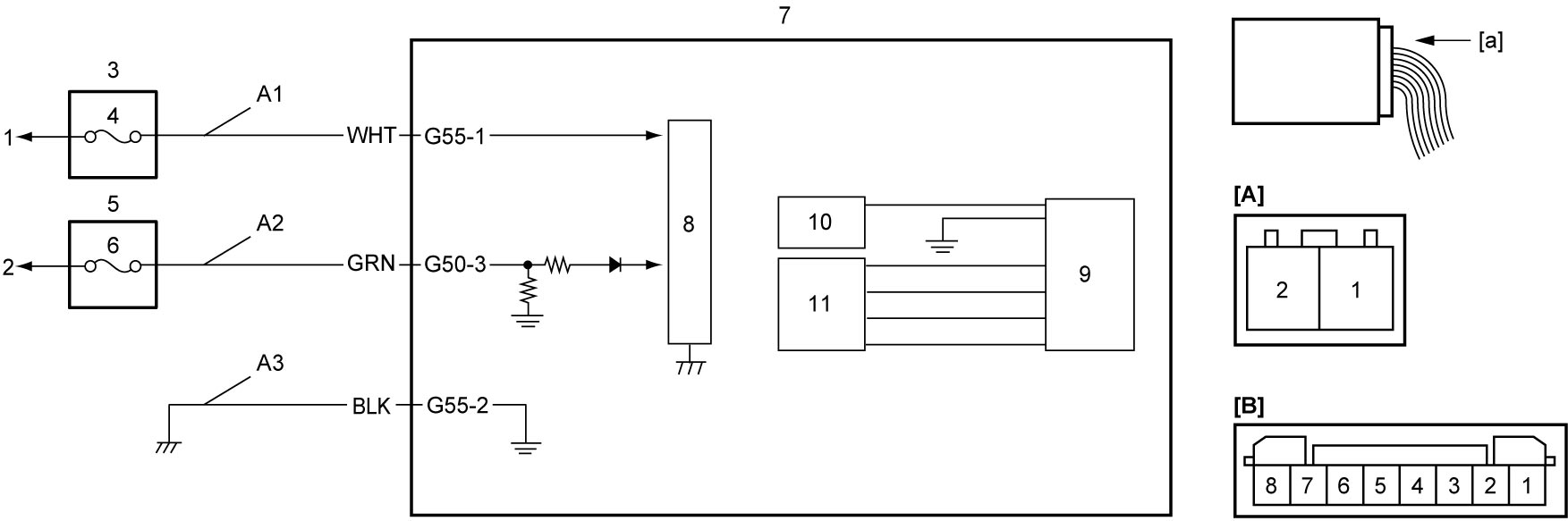

Circuit Diagram
| [A]: | P/S control module connector “G55” (View: [a]) | 2. | To ignition power supply | 8. | CPU |
| [B]: | P/S control module connector “G50” (View: [a]) | 3. | Main fuse box | 9. | Rotation angle sensor |
| A1. | P/S control module power supply circuit | 4. | “P/S” fuse | 10. | Rotation angle sensor exciter circuit |
| A2. | IG1 power supply circuit | 5. | J/B | 11. | Rotation angle sensor signal receive circuit |
| A3. | P/S control module ground circuit | 6. | “IG1 SIG” fuse | ||
| 1. | To continuous power supply | 7. | P/S control module / motor assembly |
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
Was “P/S System Check” performed?
|
Go to Step 2.
|
Go to P/S System Check and recheck DTC.
|
| 2 |
P/S control module power supply and ground circuit check
1)Check P/S control module power supply and ground circuits.
Is check result OK?
|
Substitute a known-good steering column assembly and recheck DTC.
|
Repair or replace defective wire harness.
|
