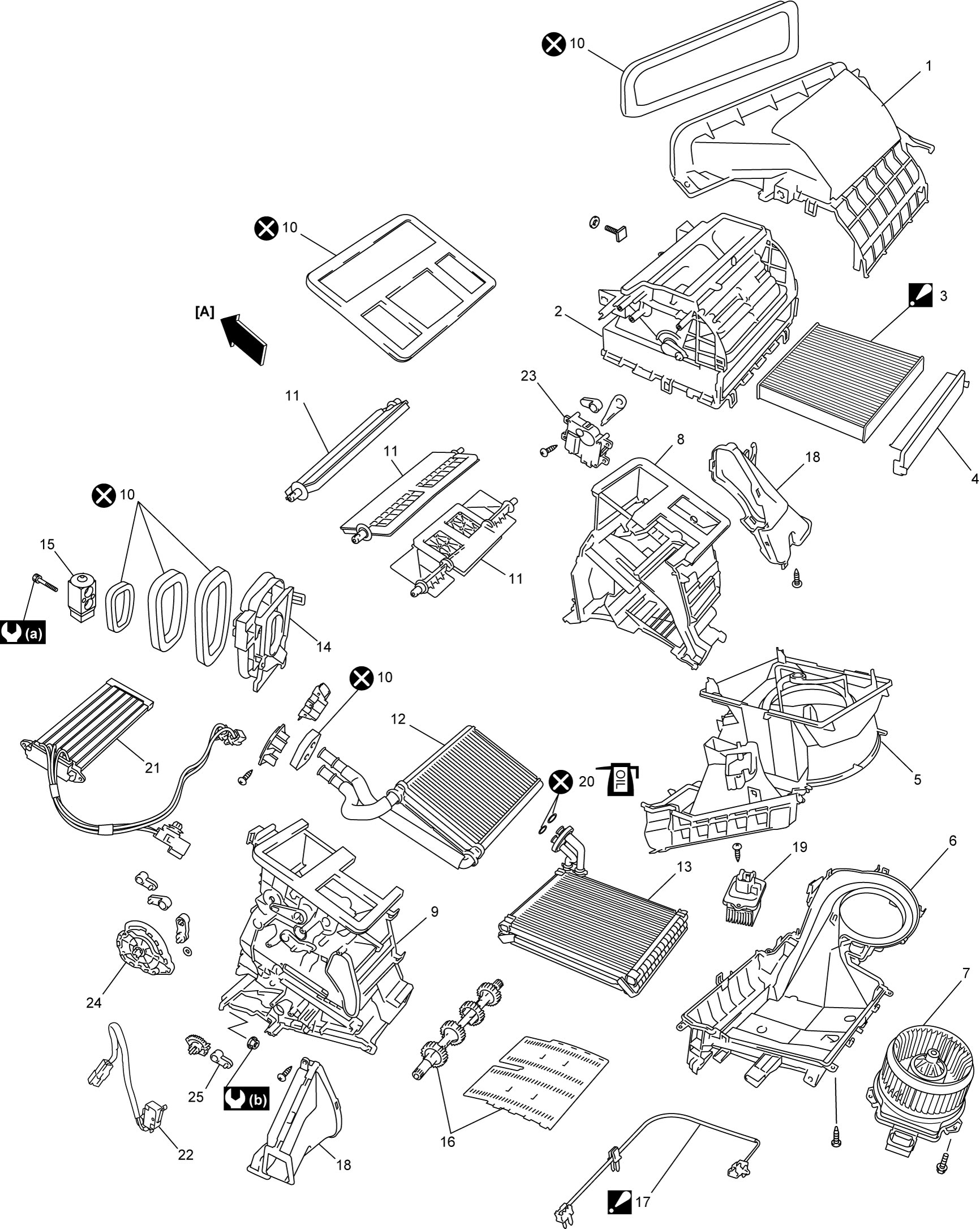

HVAC Unit Components
Precautions: General safety (00)
NOTE:
This figure shows LHD as an example.
| [A]: | Forward | 10. | Packing |
 20. |
O-ring : Apply compressor oil. |
| 1. | Fresh air inlet duct | 11. | Air flow control door assembly | 21. | Additional heater (if equipped) |
| 2. | Air intake case | 12. | Heater core | 22. | Max hot switch (if equipped) |
 3. |
Air filter : For installation, refer to HVAC Air Filter Removal and Installation:Manual Type. |
13. | Evaporator | 23. | Air intake control actuator |
| 4. | Filter cover | 14. | Cover | 24. | Air flow control plate |
| 5. | Blower upper case | 15. | Expansion valve | 25. | Temperature control lever |
| 6. | Blower lower case | 16. | Temperature control door assembly |
 : |
3.5 N·m (0.36 kgf-m, 2.5 lbf-ft) |
| 7. | Blower motor |
17. |
Evaporator temperature sensor : For installation, refer to Evaporator Temperature Sensor Removal and Installation:Manual Type. |
 : |
6.0 N·m (0.61 kgf-m, 4.5 lbf-ft) |
| 8. | Right case | 18. | Foot duct |
 : |
Do not reuse. |
| 9. | Left case | 19. | Blower motor resistor |
