DTC Clearance
Precautions: Precautions for Diagnosing Trouble · Precautions for Replacing Ignition Key (Ignition Switch Model) · Precautions for Transmitter Disposal (Ignition Switch Model) · Precautions for Replacing Keyless Entry Control Module (Ignition Switch Model) · Precautions for Body, Cab and Accessories · General safety (00)
1)Set ignition “OFF”.

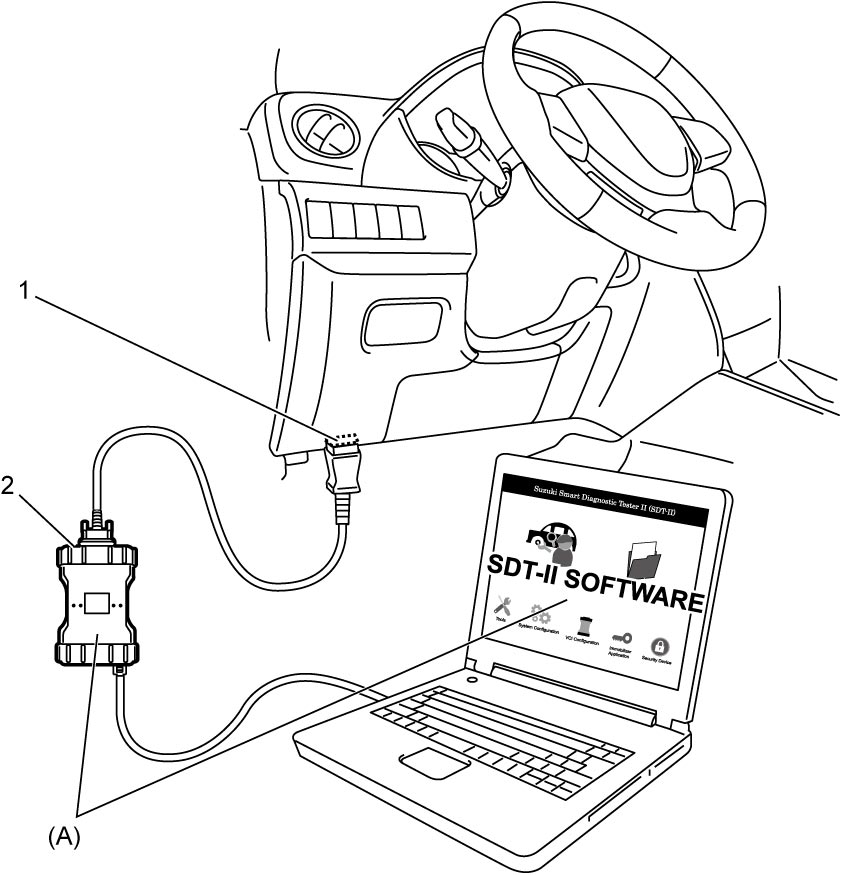

2)Connect SUZUKI scan tool to DLC (1).
3)Set ignition “ON”.
4)Clear DTC according to instructions displayed on SUZUKI scan tool and print it or write it down. Refer to Operator's Manual of SUZUKI scan tool for further details.
NOTE:
•If communication between SUZUKI scan tool and keyless entry control module is not possible, perform the following checks:
—Check communication condition between PC and VCI (2) using SUZUKI scan tool function.
—Check DLC power circuit and ground circuit.
—Check DLC cable. If necessary, check DLC cable by substituting a known-good DLC cable.
—Check CAN communication system. (“Control Module Communication Bus Off” is detected in any control module.)
•Select “Keyless Start” menu on SUZUKI scan tool.—Check DLC power circuit and ground circuit.
—Check DLC cable. If necessary, check DLC cable by substituting a known-good DLC cable.
—Check CAN communication system. (“Control Module Communication Bus Off” is detected in any control module.)
—M16A model:
—D16AA model:
—Check keyless entry control module power circuit and ground circuit. —D16AA model:
5)After completing DTC clearance, set ignition “OFF” and disconnect SUZUKI scan tool from DLC.
