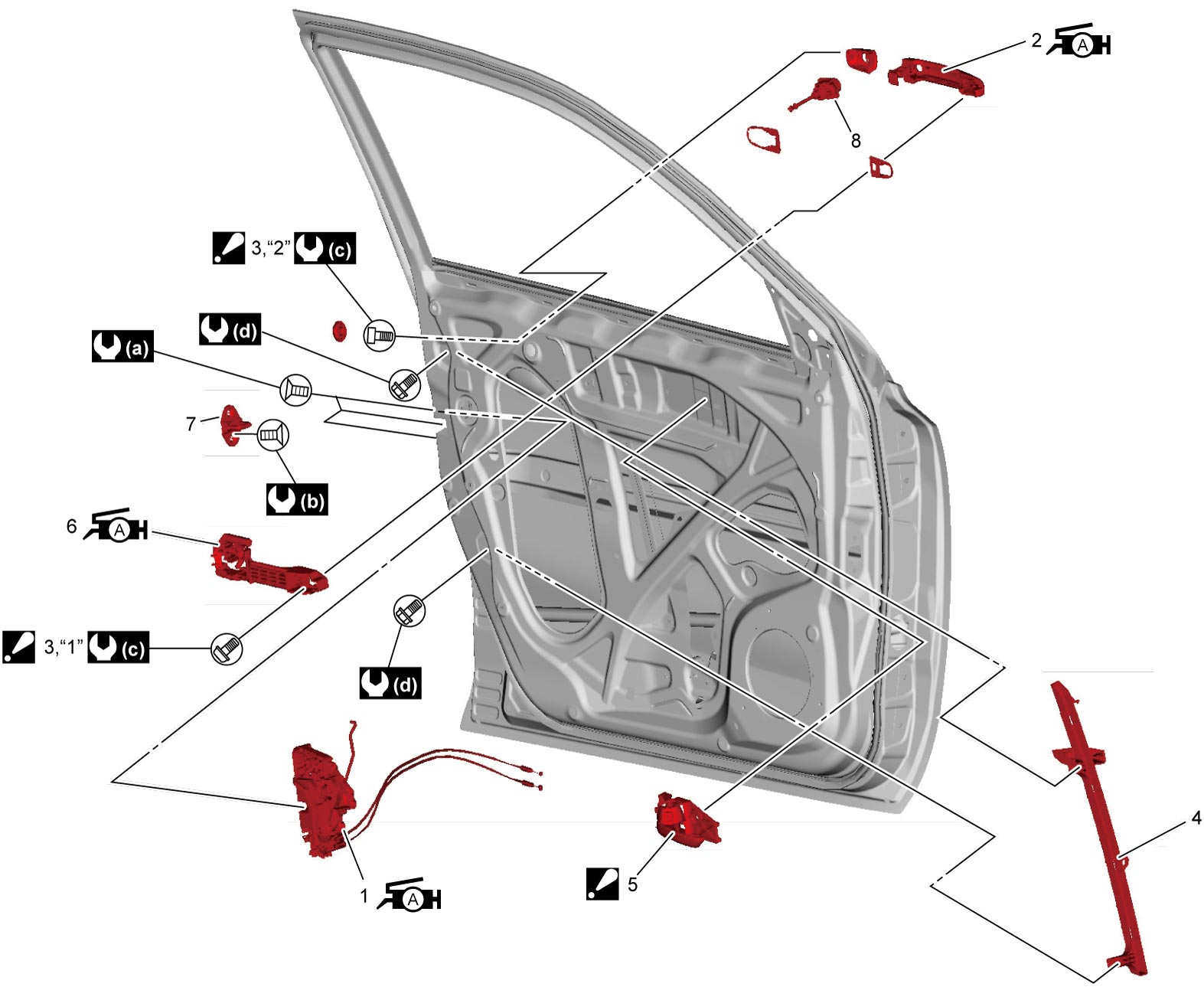

Front Door Lock Components

Precautions: Precautions for Diagnosing Trouble · Precautions for Replacing Ignition Key (Ignition Switch Model) · Precautions for Transmitter Disposal (Ignition Switch Model) · Precautions for Replacing Keyless Entry Control Module (Ignition Switch Model) · Precautions for Body, Cab and Accessories · General safety (00)

1.	Front door lock assembly : Apply grease 99000-25011 to rotation / sliding parts.	5.	Inside door handle : Install screw after installing door trim.	:	4.5 N·m (0.46 kgf-m, 3.5 lbf-ft)
2.	Outside door handle (outer) : Apply grease 99000-25011 to rotation / sliding parts.	6.	Outside door handle (inner) : Apply grease 99000-25011 to rotation / sliding parts.	:	28 N·m (2.9 kgf-m, 21.0 lbf-ft)
3.	Outside door handle screw : Tighten screws in numerical order (“1” – “2”).	7.	Door latch striker	:	5.5 N·m (0.56 kgf-m, 4.0 lbf-ft)
4.	Front door rear sash	8.	Key cylinder	:	8.5 N·m (0.87 kgf-m, 6.5 lbf-ft)
