DTC B116A
Precautions: Precautions for Diagnosing Trouble · Precautions for Replacing Remote Controller · Precautions for Remote Controller Disposal · Precautions for Replacing Keyless Start Control Module · Precautions for Control Systems · General safety (00)
DTC Detecting Condition and Trouble Area
| DTC detecting condition | Trouble area |
|---|---|
|
B116A: Abnormal Vehicle Speed Pulses From ABS / ESP® Control Module Vehicle speed signal is not inputted from ESP® control module. |
•Vehicle speed signal circuit
•ESP® control module •Keyless start control module |

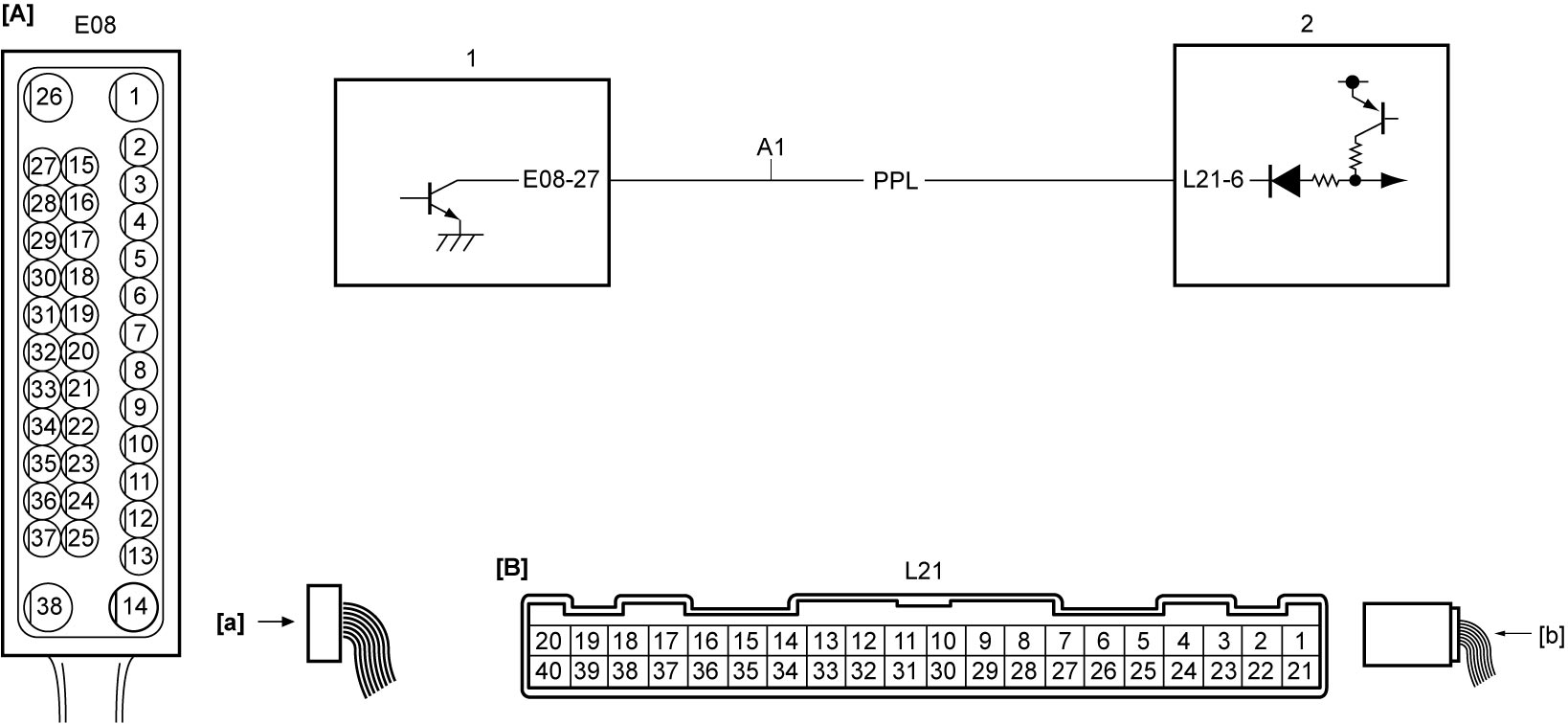

Circuit Diagram
DTC Confirmation Procedure
If you do not select a suitable route and take proper precautions when performing a road test, an accident can occur.
•Select a level road with no traffic to minimize the risk of accident.
•Perform the test extremely carefully.
•Perform the road test with 2 persons, a driver and a tester.
•Perform the test extremely carefully.
•Perform the road test with 2 persons, a driver and a tester.
1)Drive vehicle at 10 km/h (6 mile/h) or more for 1 minute.
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
DTC check
Is there any DTC(s) detected?
|
Go to troubleshooting for applicable DTC.
|
Go to Step 2.
|
| 2 |
Vehicle speed signal circuit check
1)Set ignition “OFF”.
2)Disconnect “E08” and “L21” connectors.
3)Check for proper terminal connection to “E08” and “L21” connectors.
4)If connections are OK, check the following points.
•Resistance of “A1” circuit: less than 1 Ω
•Resistance between “A1” circuit and ground: infinity •Resistance between “A1” circuit terminal and each terminal at “E08” connector: infinity •Voltage of “A1” circuit: approx. 0 V (When ignition is “ON”) Is check result OK?
|
Go to Step 3.
|
Repair or replace defective wire harness.
|
| 3 |
Keyless start control module check
1)Set ignition “OFF”.
2)Connect “L21” connector.
3)Set ignition “ON”.
4)Check that voltage between “A1” circuit and ground is approx. 12 V.
Is check result OK?
|
