Suzuki Vitara (LY) 2016-2017 · Service Manual Repair Instructions

Outside Warning Buzzer Removal and Installation

Precautions: Precautions for Diagnosing Trouble · Precautions for Replacing Remote Controller · Precautions for Remote Controller Disposal · Precautions for Replacing Keyless Start Control Module · Precautions for Control Systems · General safety (00)

Removal
1)Disconnect negative (–) cable at battery.
2)Remove driver side front fender lining. icon

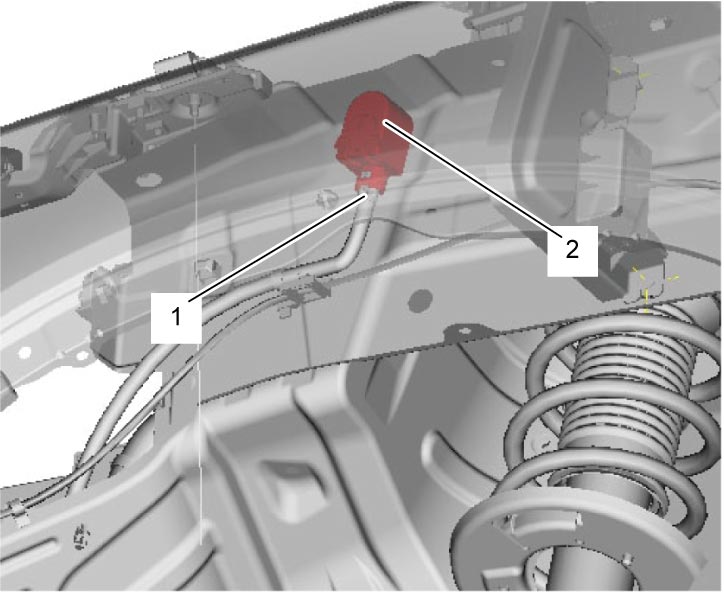

3)Disconnect connector (1), and then remove outside warning buzzer (2).
Installation
Reverse removal procedure.
