RBS System Component Location
Precautions: Precautions for Diagnosing Trouble · Precautions for RBS System · Precautions for Servicing RBS System · Precautions for Removing / Installing and Replacing RBS Control Module · Precautions for Control Systems · General safety (00)
NOTE:

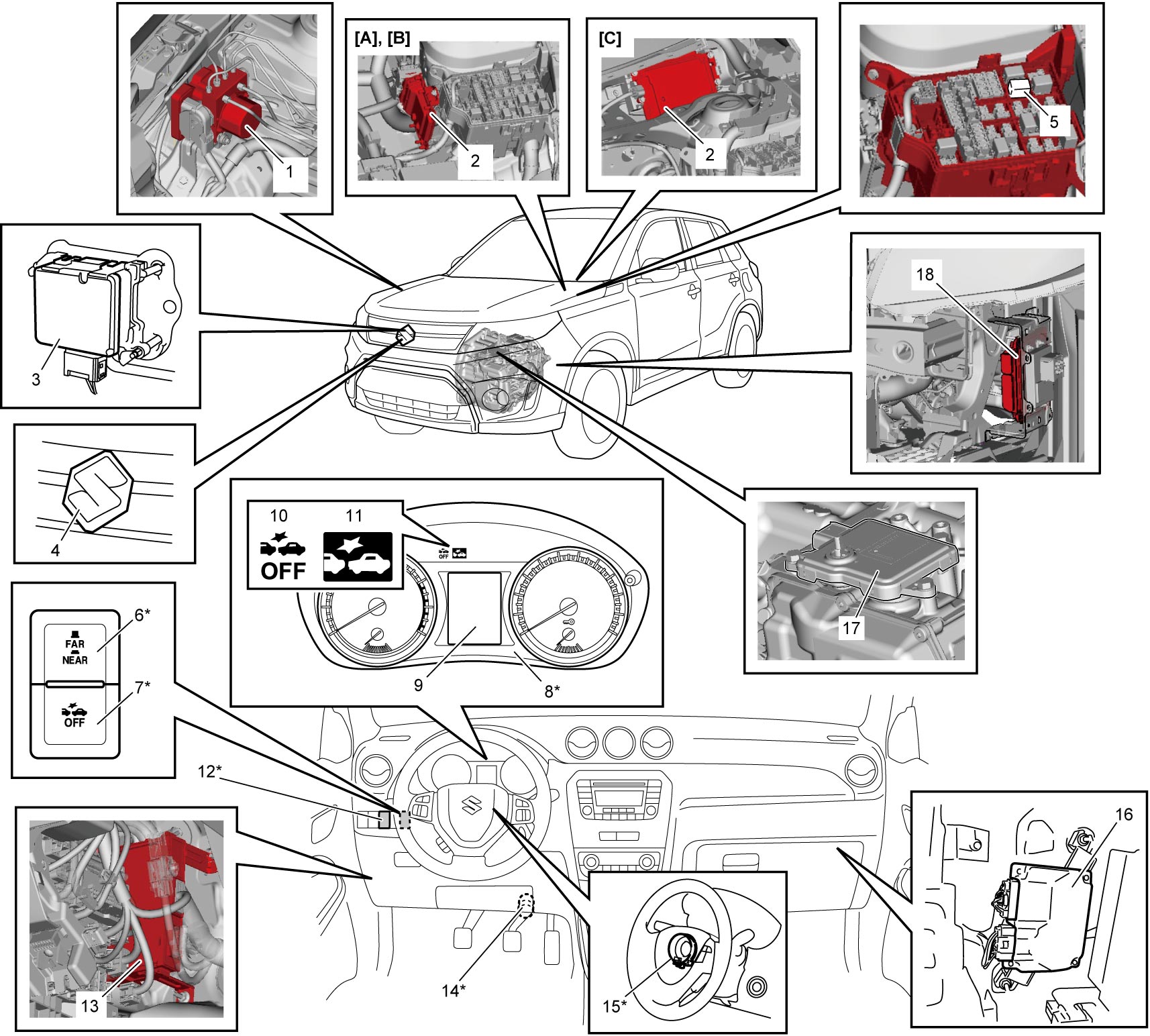

The figure shows LHD. For RHD, parts with (*) are installed on the opposite side.
| [A]: | M16A model | 5. | Brake light relay | 12. | ESP® OFF switch |
| [B]: | K14C model | 6. | FAR/NEAR setting switch | 13. | BCM |
| [C]: | D16AA model | 7. | RBS OFF switch | 14. | Brake light switch |
| 1. | ESP® control module | 8. | Combination meter | 15. | Steering angle sensor |
| 2. | ECM | 9. | Information display | 16. | ENG A-STOP control module |
| 3. | RBS control module | 10. | RBS OFF light | 17. | TCM (A/T model) |
| 4. | Millimeter wave radar cover | 11. | RBS indicator light | 18. | TCM (twin clutch system model) |
