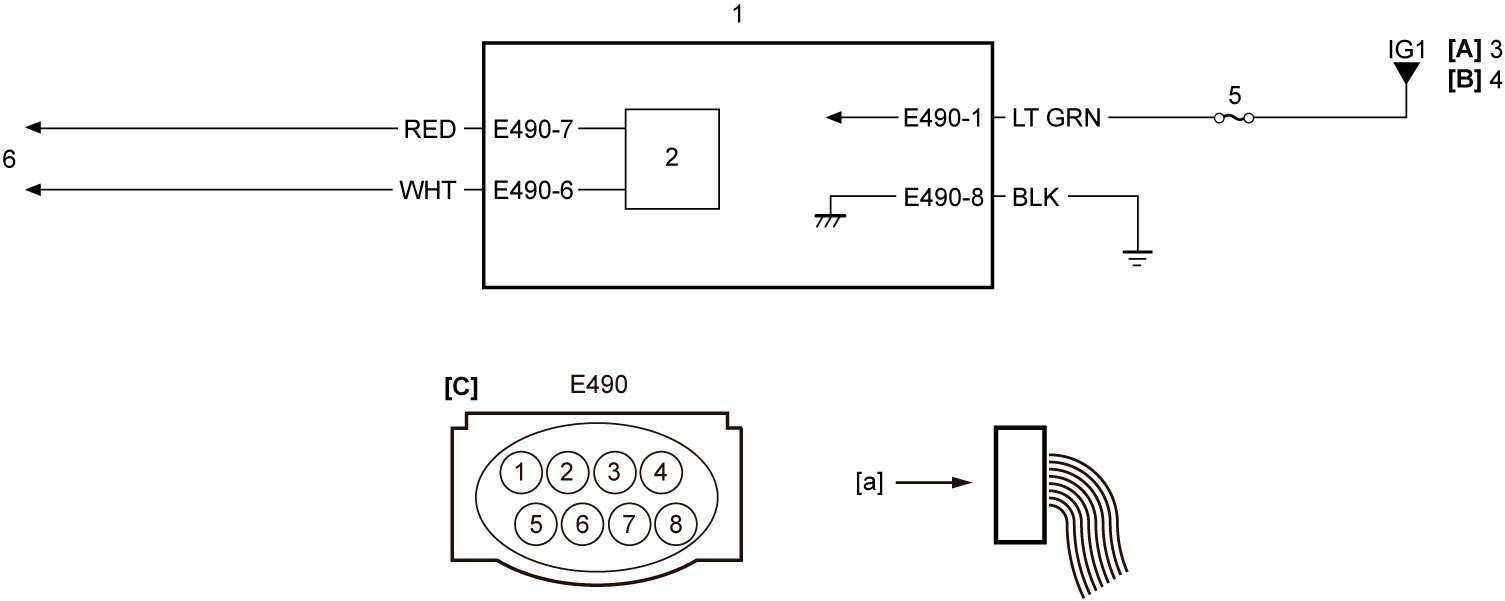

RBS System Circuit Diagram

Precautions: Precautions for Diagnosing Trouble · Precautions for RBS System · Precautions for Servicing RBS System · Precautions for Removing / Installing and Replacing RBS Control Module · Precautions for Control Systems · General safety (00)

[A]:	Ignition switch model	1.	RBS control module	4.	IG1 relay
[B]:	Keyless push start model	2.	CAN driver	5.	“CRUISE” fuse
[C]:	RBS control module connector (View: [a])	3.	Ignition switch	6.	Each control module •M16A model: CAN Communication System Circuit Diagram:M16A Model •K14C model: CAN Communication System Circuit Diagram:K14C Model •D16AA model: CAN Communication System Circuit Diagram:D16AA Model
