RBS OFF Switch and FAR/NEAR Setting Switch Inspection
Precautions: Precautions for Diagnosing Trouble · Precautions for RBS System · Precautions for Servicing RBS System · Precautions for Removing / Installing and Replacing RBS Control Module · Precautions for Control Systems · General safety (00)

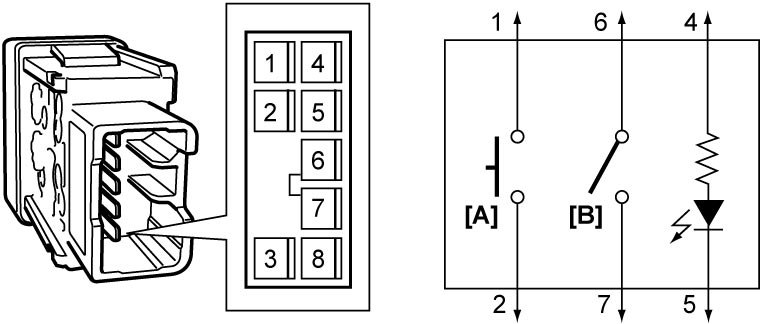

Check continuity between terminals at each switch position. If check result is not as specified, replace RBS OFF switch and FAR/NEAR setting switch.
| [A]: | RBS OFF switch | [B]: | FAR/NEAR setting switch |

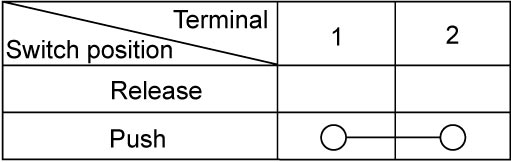

RBS OFF switch continuity

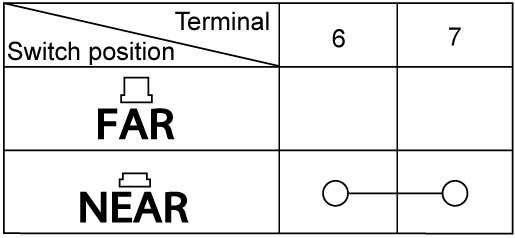

FAR/NEAR setting switch continuity
