RBS OFF Switch and FAR/NEAR Setting Switch Removal and Installation

Precautions: Precautions for Diagnosing Trouble · Precautions for RBS System · Precautions for Servicing RBS System · Precautions for Removing / Installing and Replacing RBS Control Module · Precautions for Control Systems · General safety (00)

Removal

1)Remove switch bezel.

2)Disconnect RBS OFF switch and FAR/NEAR setting switch connector.

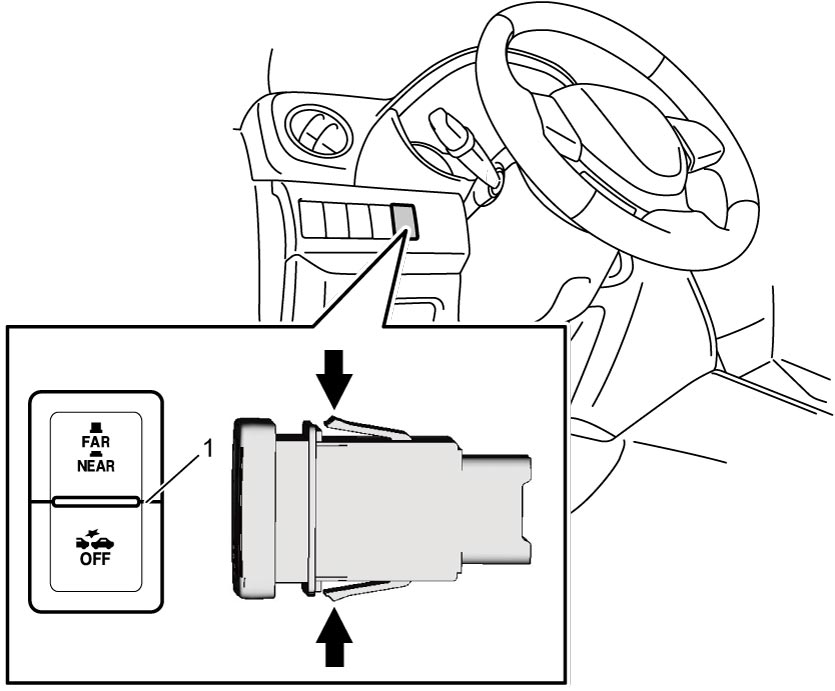

3)Remove RBS OFF switch and FAR/NEAR setting switch (1) from switch bezel.

Installation

Reference: RBS OFF Switch and FAR/NEAR Setting Switch Inspection

Reverse removal procedure.
