Section 3 - Driveline / Axle
Section 3 - Driveline / Axle
Section 3A - Drive Shaft / Axle
Front
| 09913–50121 |
 |
09913–65810 |
 |
| Oil seal remover | Crankshaft bearing puller | ||
 |
|
||
| 09913–75510 |
 |
09913–75520 |
 |
| Bearing installer | Bearing installer | ||
|
|
|
||
| 09913–75810 |
 |
09913–84510 |
 |
| Bearing installer | Bearing installer | ||
|
|
|
||
| 09913–85230 |
 |
09924–74510 |
 |
| Bearing remover tool | Bearing and oil seal handle | ||
|
|
|
||
| 09925–14520 |
 |
09925–98221 |
 |
| Bearing and oil seal installer (80 x 50 mm) | Bearing installer | ||
|
|
|
||
| 09926–27610 |
 |
09927–66010 |
 |
| Oil seal installer | Oil pump aligner | ||
|
|
|
||
| 09942–15511 |
 |
09943–17912 |
 |
| Sliding hammer | Wheel hub remover | ||
|
|
|
||
| 09943–37910 |
 |
09943–57011 |
 |
| Bearing installer & remover | Band compressor | ||
|
|
|
||
| 09943–57021 |
 |
09944–78220 |
 |
| Low-profile clamp pliers | Bearing installer support | ||
|
|
|
||
| 09951–16310 |
 |
||
| Brake disc dust cover installer (ø100) | |||
|
|
Rear
| 09913–84510 |
|
09943–57021 |
|
| Bearing installer | Low-profile clamp pliers | ||
|
|
|
Section 3B - Differential
| 09900–20607 |
 |
09900–20701 |
 |
| Dial gauge | Magnetic stand | ||
|
|
|
||
| 09911–75420 |
 |
09912–34510 |
 |
| Crowfoot flare-nut wrench | Case separator | ||
| 18.17
|
|
||
| 09913–50121 |
|
09913–60910 |
 |
| Oil seal remover | Bearing and gear puller (40 - 60mm) | ||
|
|
|
||
| 09913–70123 |
 |
09913–75510 |
|
| Bearing installer | Bearing installer | ||
|
|
|
||
| 09913–75810 |
|
09913–75830 |
 |
| Bearing installer | Steering pinion bush installer | ||
|
|
|
||
| 09913–80113 |
 |
09913–85210 |
 |
| Bearing installer | Bearing installer | ||
|
|
|
||
| 09922–66010 |
 |
09922–76120 |
 |
| Rear axle remover | Mounting dummy shaft | ||
|
|
|
||
| 09922–76140 |
 |
09922–76150 |
 |
| Bevel pinion shaft | Bevel pinion nut | ||
|
|
|
||
| 09922–76250 |
 |
09922–76330 |
 |
| Bevel gear dummy | Bevel pinion rear collar | ||
|
|
|
||
| 09922–76340 |
 |
09922–76420 |
 |
| Bevel pinion rear collar | Bevel pinion front collar | ||
|
|
|
||
| 09922–76530 |
 |
09922–85811 |
 |
| Bevel pinion gauge block | Spring pin remover (4.5 mm) | ||
|
|
|
||
| 09924–07720 |
 |
09924–74510 |
|
| Synchronizer hub installer | Bearing and oil seal handle | ||
|
|
|
||

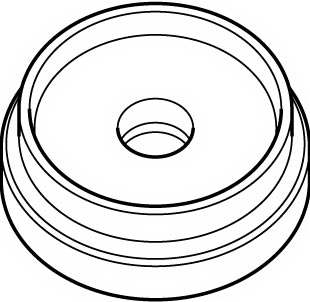

| 09925–17910 |
 |
09925–88210 |
 |
| Oil seal installer | Bearing puller attachment | ||
|
|
|
||
| 09926–37610 |
 |
09926–48010 |
 |
| Bearing remover | Universal joint assembling tool | ||
|
|
|
||
| 09927–27910 |
 |
09930–40113 |
 |
| Holder, bevel pinion | Flywheel rotor holder | ||
|
|
|
||
| 09942–15511 |
|
09944–66040 |
 |
| Sliding hammer | Oil seal installer | ||
|
|
|
||
| 09944–77030 |
 |
09944–78210 |
 |
| Bearing / cover installer support | Bearing installer support | ||
|
|
|
||
| 09945–57910 |
 |
09952–06010 |
 |
| Mounting bracket support | Dial gauge plate No.1 | ||
|
|
|
||
| SUZUKI scan tool (Suzuki SDT-II) |
 |
||
| — | |||
|
|
Section 3C - Transfer
| 09900–20607 |
|
09913–50121 |
|
| Dial gauge | Oil seal remover | ||
|
|
|
||
| 09913–65135 |
 |
09913–75510 |
|
| Bearing puller | Bearing installer | ||
|
|
|
||
| 09913–75520 |
|
09913–84510 |
|
| Bearing installer | Bearing installer | ||
|
|
|
||
| 09913–85230 |
|

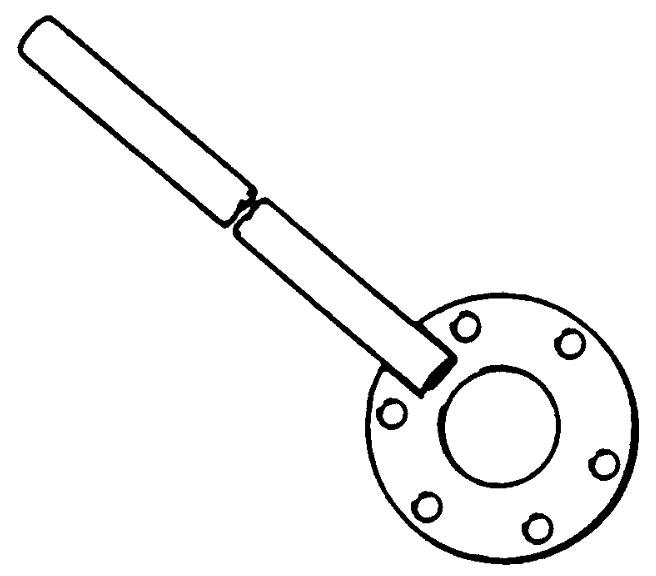

09922–66021 |
 |
| Bearing remover tool | Flange holder | ||
|
|
|
||
| 09922–76140 |
|
09922–76150 |
|
| Bevel pinion shaft | Bevel pinion nut | ||
|
|
|
||
| 09922–76340 |
|
09922–76420 |
|
| Bevel pinion rear collar | Bevel pinion front collar | ||
|
|
|
||
| 09924–07710 |
 |
09924–07730 |
 |
| Synchronizer hub installer | Bearing installer | ||
|
|
|
||
| 09924–74510 |
|

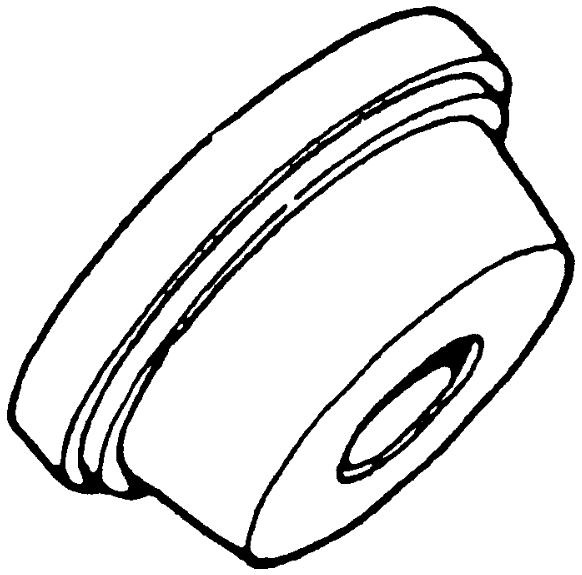

09924–84510–005 |
 |
| Bearing and oil seal handle | Bearing installer attachment (D) | ||
|
|
|
||

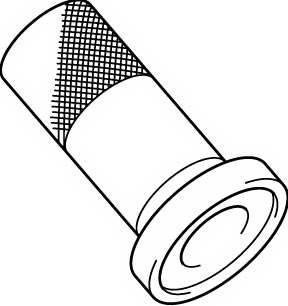

| 09925–15410 |
 |

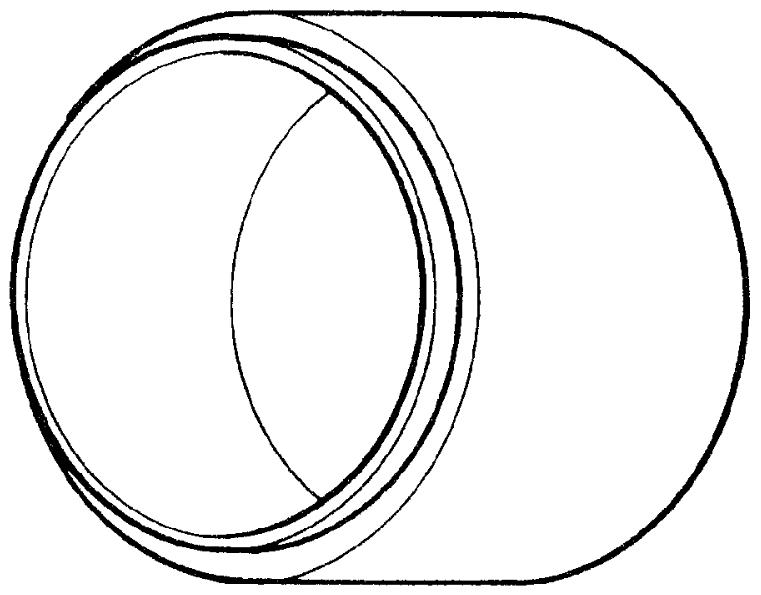

09925–16010 |
 |
| Oil seal installer | Drive gear bearing installer | ||
|
|
|
||
| 09925–98221 |
|
09926–27610 |
|
| Bearing installer | Oil seal installer | ||
|
|
|
||

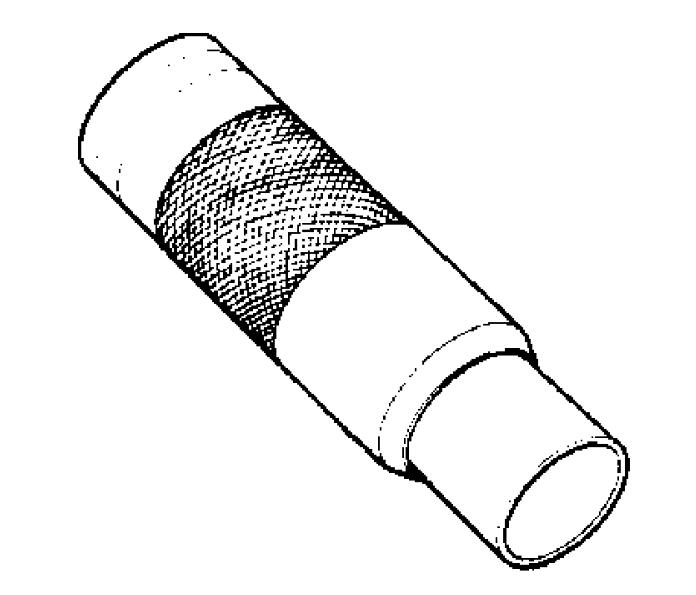

| 09940–51410 |
 |

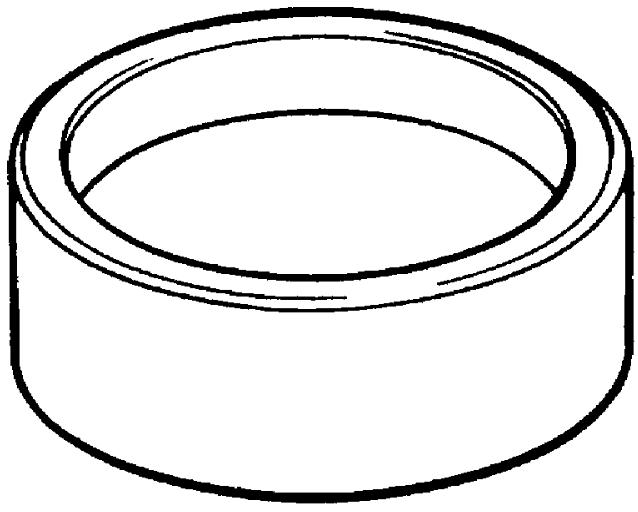

09944–66020 |
 |
| Bearing installer | Bearing installer | ||
|
|
|
||
| 09944–68210 |
 |
||
| Bearing & oil seal installer | |||
|
|
Section 3D - Propeller Shaft
| 09900–20607 |
|
09900–20701 |
|
| Dial gauge | Magnetic stand | ||
|
|
|
