FRONT FENDER
REMOVAL
1. Remove the wheel opening splash shield. (Refer to 23 - BODY/EXTERIOR/FRONT WHEELHOUSE SPLASH SHIELD - REMOVAL)
2. Remove the grille. (Refer to 23 - BODY/EXTERIOR/GRILLE - REMOVAL)
3. Raise and support vehicle.
4. Release the inner support clips from within the fascia between the lights.

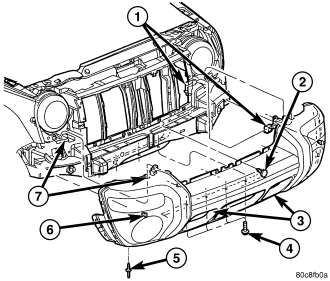

5. Release the support tabs beneath the headlamps and position the fascia assembly aside to access the fender support bracket bolts.
6. Remove the front wheel opening flare moldings. (Refer to 23 - BODY/EXTERIOR/FRONT WHEEL OPENING FLARE MOLDINGS - REMOVAL)
7. Remove the fender support bracket bolts.
8. Remove the bolts and remove the fender.

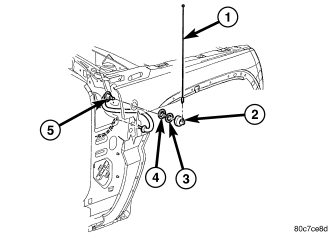

9. Remove the antenna body, if equipped (1). (Refer to 8 - ELECTRICAL/AUDIO/ANTENNA BODY & CABLE - REMOVAL)
INSTALLATION
1. Install the antenna body (1), if equipped. (Refer to 8 - ELECTRICAL/AUDIO/ANTENNA BODY & CABLE - INSTALLATION)

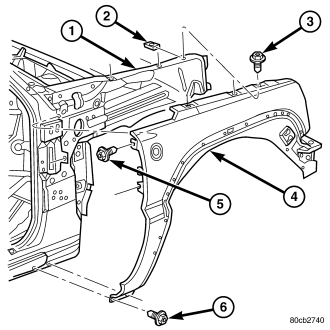

2. Install the fender assembly (4) and install the bolts.

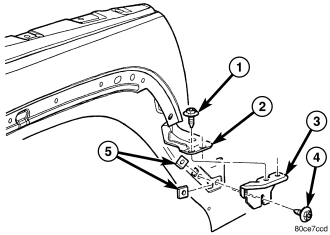

3. Install the fender support bracket (3) and install the bolts.
4. Align the fender with adjacent body parts and tighten the bolts to 12 N·m (9 ft. lbs.). (Refer to 23 - BODY/BODY STRUCTURE/GAP AND FLUSH - SPECIFICATIONS)
5. Install the fascia assembly. (Refer to 13 - FRAME & BUMPERS/BUMPERS/FRONT FASCIA - INSTALLATION)
6. Install the wheelhouse splash shield. (Refer to 23 - BODY/EXTERIOR/FRONT WHEELHOUSE SPLASH SHIELD - INSTALLATION)
