1. INSTALL RADIATOR ASSEMBLY

(a) Set the radiator bracket hooks to the radiator support holes.

(b) Install the radiator with the 4 bolts.

Torque: 18 N·m (184 kgf·cm, 13 ft·lbf)

(c) Connect the 2 oil cooler hoses.

2. INSTALL FAN SHROUD

(a) Install the fan pulley.

(b) Place the shroud together with the coupling fan between the radiator and engine.

NOTICE:

Be careful not to damage the radiator core.

(c) Temporarily install the fluid coupling fan to the fluid coupling bracket with the 4 nuts. Tighten the nuts as much as possible by hand.

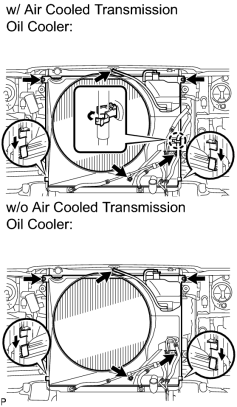

(d) Attach the claws of the shroud to the radiator as shown in the illustration.

(e) Install the shroud with the 2 bolts.

Torque: 8.0 N·m (82 kgf·cm, 71 in·lbf)

(f) Connect the oil cooler tube to the fan shroud with the 2 bolts.

Torque: 5.0 N·m (51 kgf·cm, 44 in·lbf)

(g) w/ Air Cooled Transmission Oil Cooler:

Pass the hose through the flexible hose clamp and close the clamp as shown in the illustration.

(h) Connect the reservoir hose to the upper radiator tank.

3. INSTALL NO. 2 RADIATOR HOSE

4. INSTALL NO. 1 RADIATOR HOSE

11. INSTALL RADIATOR SIDE DEFLECTOR LH

(a) Install the side deflector with the 5 clips.

12. INSTALL RADIATOR SIDE DEFLECTOR RH (w/o Air Cooled Transmission Oil Cooler)

(a) Install the side deflector with the 5 clips.
