| Last Modified: 11-27-2007 | 1.6 A | |
| Service Category: Audio/Visual/Telematics | Section: Audio/Video | |
| Model Year: 2008 | Model: LX570 | Doc ID: RM000003AI7002X |
| Title: AUDIO / VIDEO: STEREO COMPONENT AMPLIFIER: INSTALLATION (2008 LX570) | ||
INSTALLATION

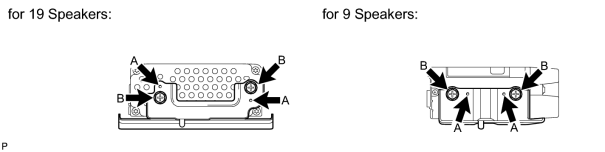

1. INSTALL NO. 2 AMPLIFIER BRACKET
(a) Set the aligning protrusions of the bracket, labeled A, into the holes of the amplifier.
(b) Install the bracket with the 2 screws labeled B.
Torque: 3.0 N·m (30 kgf·cm, 26 in·lbf)

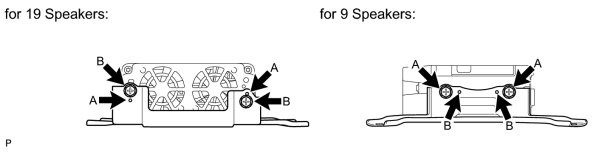

2. INSTALL NO. 1 AMPLIFIER BRACKET
(a) Set the aligning protrusions of the bracket, labeled A, into the holes of the amplifier.
(b) Install the bracket with the 2 screws labeled B.
Torque: 3.0 N·m (30 kgf·cm, 26 in·lbf)
3. INSTALL AMPLIFIER COVER (for 9 Speakers)
|
(a) Attach the 3 clips to install the cover. |

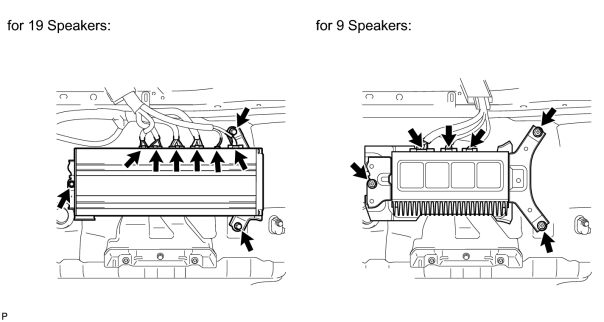

4. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET
(a) Install the amplifier with the 3 bolts.
Torque: 7.5 N·m (76 kgf·cm, 66 in·lbf)
(b) for 19 Speakers:
Connect the 6 connectors.
(c) for 9 Speakers:
Connect the 3 connectors.

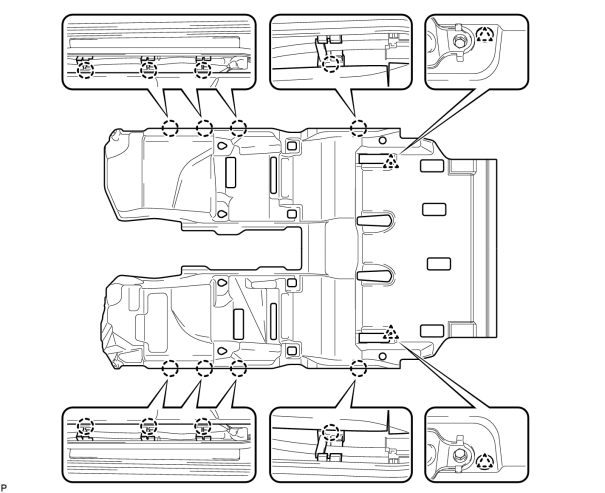

5. INSTALL FRONT FLOOR CARPET ASSEMBLY
|
(a) Open the tail gate and back door, insert the carpet into the cabin from the rear, and install it to the floor. |
(b) Attach the 2 clips and 8 claws.
6. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY (w/o Cool Box)
(a) Install the rear console box
.
7. INSTALL COOLING BOX ASSEMBLY (w/ Cool Box)
(a) Install the cooling box
.
8. INSTALL REAR NO. 2 SEAT PROTECTOR
|
(a) Attach the 4 clips and claw to install the protector. HINT:
Use the same procedures to install the protector on the other side. |
9. INSTALL REAR NO. 1 SEAT PROTECTOR
|
(a) Attach the 4 clips and claw to install the protector. HINT:
Use the same procedures to install the protector on the other side. |
10. INSTALL REAR AIR DUCT GUIDE
HINT:
Use the same procedures for both sides.
|
(a) Attach the claw to install the guide. |
(b) Install the screw.
11. INSTALL AIR DUCT PLUG
|
(a) Attach the 2 claws to install the plug. HINT:
Use the same procedures for both sides. |
12. INSTALL AIR HEATER GUIDE
|
(a) Install the guide with the 2 screws. HINT:
Use the same procedures for both sides. |
13. INSTALL NO. 2 AIR DUCT PLUG
|
(a) Attach the 4 claws to install the 2 plugs. HINT:
Use the same procedures for both sides. |
14. INSTALL REAR DOOR SCUFF PLATE RH
15. INSTALL REAR DOOR SCUFF PLATE LH
16. INSTALL REAR STEP COVER
17. INSTALL COWL SIDE TRIM BOARD RH
18. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
19. INSTALL COWL SIDE TRIM BOARD LH
20. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
21. INSTALL FRONT DOOR SCUFF PLATE RH
22. INSTALL FRONT DOOR SCUFF PLATE LH
23. INSTALL INSTRUMENT SIDE PANEL RH
24. INSTALL INSTRUMENT SIDE PANEL LH
25. INSTALL REAR NO. 1 SEAT ASSEMBLY RH
26. INSTALL REAR NO. 3 SEAT CUSHION HINGE COVER
27. INSTALL REAR NO. 1 SEAT CUSHION HINGE COVER
28. INSTALL REAR NO. 4 SEAT CUSHION HINGE COVER
29. INSTALL REAR NO. 2 SEAT CUSHION HINGE COVER
30. INSTALL REAR NO. 1 SEAT ASSEMBLY LH
31. INSTALL REAR NO. 4 SEAT CUSHION HINGE COVER
32. INSTALL REAR NO. 2 SEAT CUSHION HINGE COVER
33. INSTALL REAR NO. 5 SEAT CUSHION HINGE COVER
34. INSTALL REAR NO. 3 SEAT CUSHION HINGE COVER
35. INSTALL FRONT SEAT ASSEMBLY RH
(a) Install the front seat assembly RH
.
36. INSTALL FRONT SEAT ASSEMBLY LH
(a) Install the front seat assembly LH
.
37. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected
.
38. INSTALL ENGINE ROOM SIDE COVER LH
39. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light
.
|
|
