Sunshade Removal and Installation
Precautions: Precautions for Sun Roof · Precautions for Disassembly and Reassembly · Precautions for Body, Cab and Accessories · General safety (00)
Removal
1)Remove sun roof motor (for sunshade).

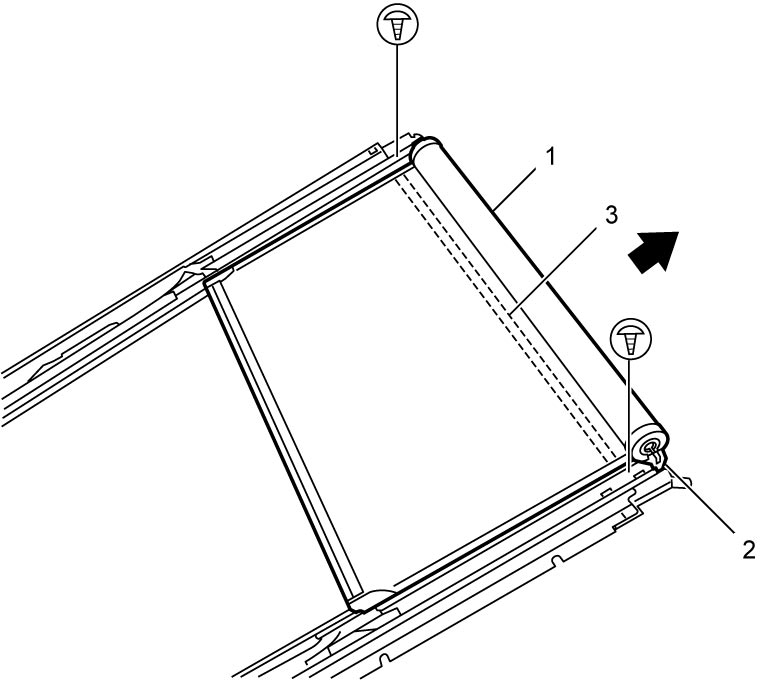

2)Remove 2 screws and then slide sunshade (1) in arrow direction.
3)Remove sunshade bases (2), sunshade stay (3) and sunshade cables from sunshade.
Installation
Reverse removal procedure noting the following points.
•Use new screws.
•Check sunshade cables and sun roof motor gear (for sunshade) for wear and damage.
•Apply grease to sliding parts.
•Check sunshade cables and sun roof motor gear (for sunshade) for wear and damage.
•Apply grease to sliding parts.
