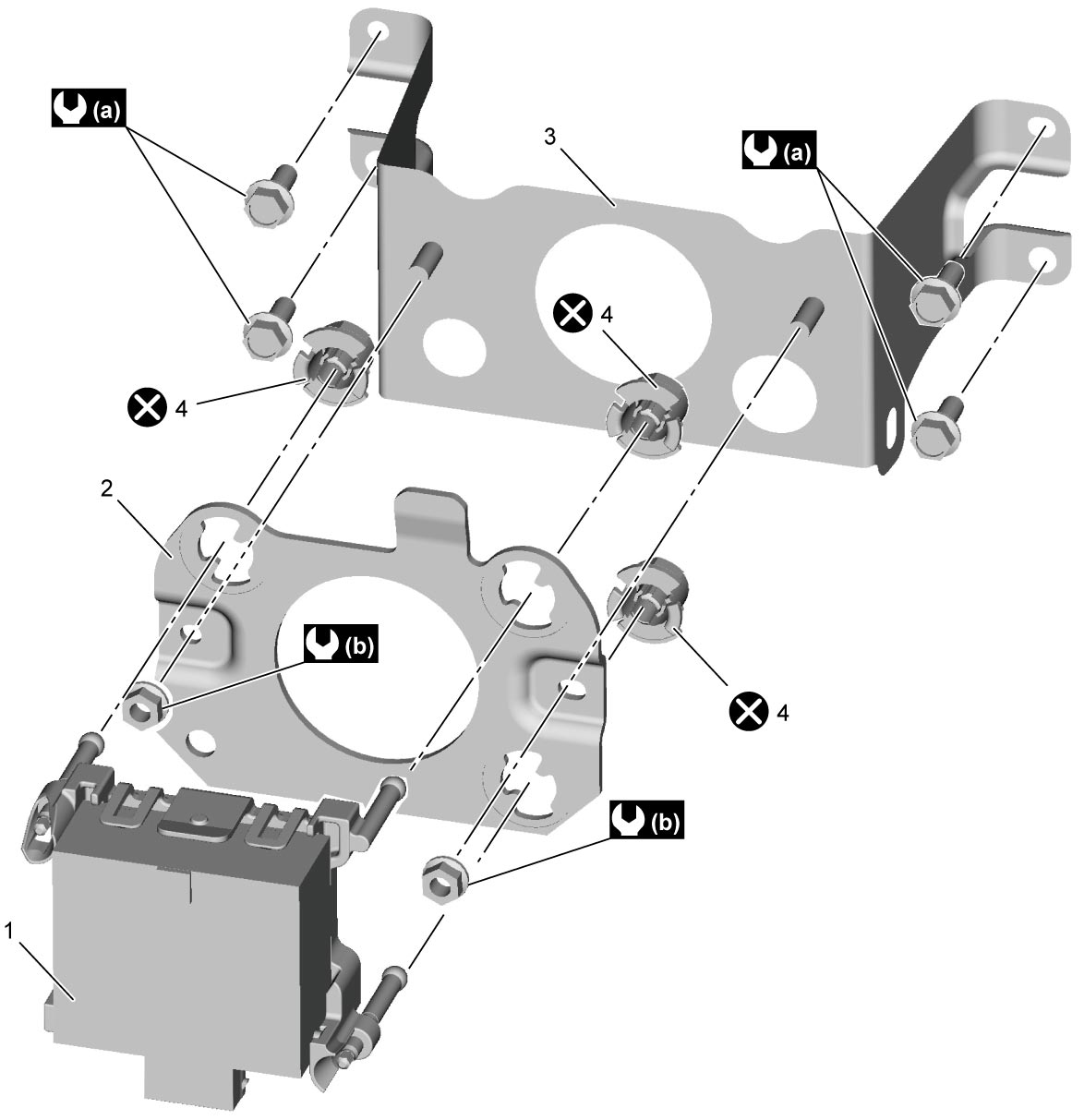

RBS Control Module Components
Precautions: Precautions for Diagnosing Trouble · Precautions for RBS System · Precautions for Servicing RBS System · Precautions for Removing / Installing and Replacing RBS Control Module · Precautions for Control Systems · General safety (00)
| 1. | RBS control module | 4. | Clip |
 : |
Do not reuse. |
| 2. | RBS control module No.1 bracket |
 : |
10 N·m (1.0 kgf-m, 7.5 lbf-ft) | ||
| 3. | RBS control module No.2 bracket |
 : |
12 N·m (1.2 kgf-m, 9.0 lbf-ft) |
