DTC P0671 / P0672 / P0673 / P0674
Precautions: General safety (00)
NOTE:
For identification of each cylinder, refer to Statement on Cleanliness and Care:D16AA.
DTC Detecting Condition and Trouble Area
| DTC detection condition | Trouble area |
|---|---|
|
P0671: Cylinder 1 Glow Plug Circuit / Open Any of the following conditions is met.
•Glow plug No.1 circuit is open. (1 D/C detection logic but MIL does not light up)•Glow plug No.1 circuit is shorted to ground. |
•Glow plug and/or its circuit
•Glow plug control module •ECM |
|
P0672: Cylinder 2 Glow Plug Circuit / Open Any of the following conditions is met.
•Glow plug No.2 circuit is open. (1 D/C detection logic but MIL does not light up)•Glow plug No.2 circuit is shorted to ground. |
|
|
P0673: Cylinder 3 Glow Plug Circuit / Open Any of the following conditions is met.
•Glow plug No.3 circuit is open. (1 D/C detection logic but MIL does not light up)•Glow plug No.3 circuit is shorted to ground. |
|
|
P0674: Cylinder 4 Glow Plug Circuit / Open Any of the following conditions is met.
•Glow plug No.4 circuit is open. (1 D/C detection logic but MIL does not light up)•Glow plug No.4 circuit is shorted to ground. |

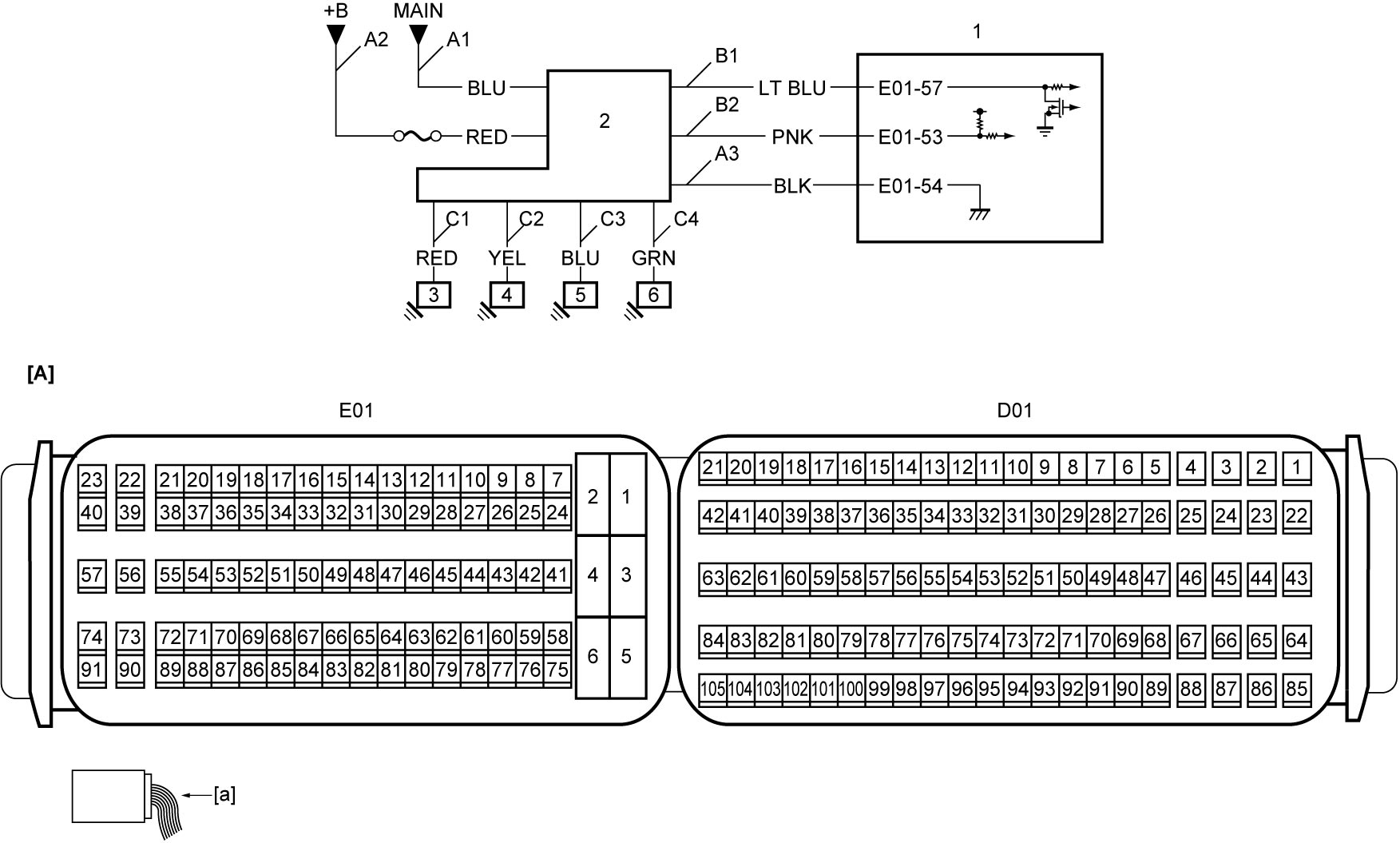

Circuit Diagram
| [A]: | ECM connector (View: [a]) | C1: | Glow plug No.1 drive circuit | 3. | Glow plug No.1 |
| A1: | Glow plug control module power supply circuit | C2: | Glow plug No.2 drive circuit | 4. | Glow plug No.2 |
| A2: | Glow plug control module power supply circuit | C3: | Glow plug No.3 drive circuit | 5. | Glow plug No.3 |
| A3: | Glow plug control module ground circuit | C4: | Glow plug No.4 drive circuit | 6. | Glow plug No.4 |
| B1: | Glow plug control module drive circuit | 1. | ECM | ||
| B2: | Glow plug control module communication circuit | 2. | Glow plug control module |
DTC Troubleshooting
| Step | Action | Yes | No |
|---|---|---|---|
| 1 |
Was “Engine and Emission Control System Check” performed?
|
Go to Step 2.
|
|
| 2 |
Glow plug drive circuit check
1)Check “C1”, “C2”, “C3” and “C4” circuits according to Step 7 of Glow Plug Operation Check:D16AA.
Is check result OK?
|
Go to Step 3.
|
Repair or replace defective wire harness.
|
| 3 |
Glow plug check
1)Check all glow plugs.
Is check result OK?
|
Go to Step 4.
|
Replace glow plugs.
|
| 4 |
Glow plug control module replacement
1)Replace glow plug control module.
2)Clear DTC.
3)Set ignition “OFF”.
4)Check DTCs.
Is DTC P0671, P0672, P0673 or P0674 still detected?
|
Replace ECM and recheck DTC.
|
End.
|
