Special Tool
Precautions: General safety (00)
| 09367–06002 |
 |
09911–98410 |
 |

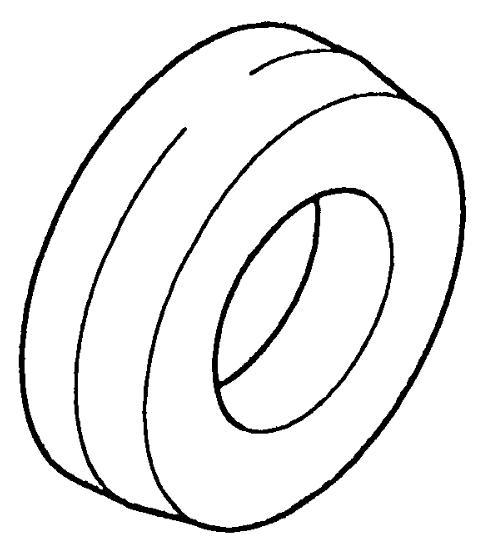

| T-type joint (Reference) | Oil seal installer | ||
 |
|
||
| 09913–75810 |
 |
09914–88410 |
 |

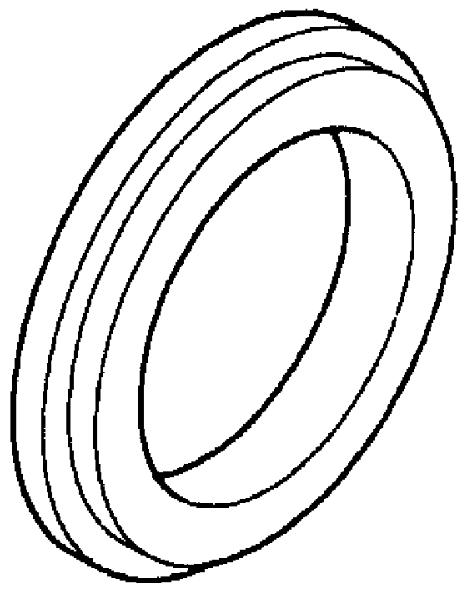

| Bearing installer | Oil seal installer | ||
|
|
|
||
| 09915–64512 |
 |
09915–64530 |
 |
| Compression gauge | Compression gauge hose | ||
|
|
|
||
| 09915–64550 |
 |
09915–67311 |
 |

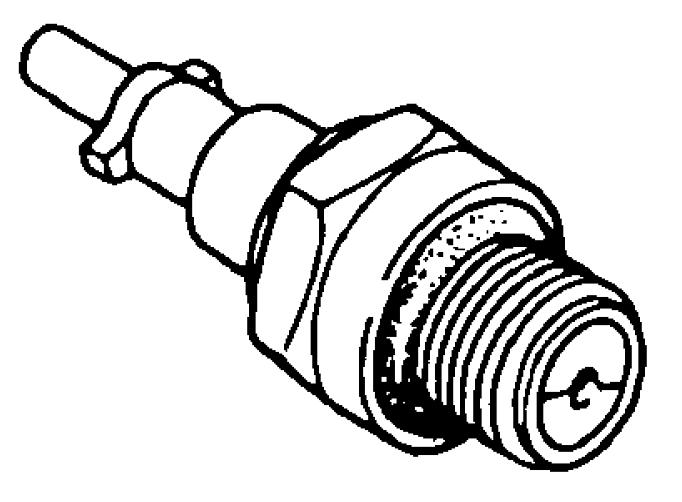

| Compression gauge attachment (B) | Vacuum gauge | ||
|
|
|
||
| 09916–14510 |
 |
09916–14530 |
 |
| Valve lifter | Valve spring compressor attachment | ||
|
|
|
||
| 09916–34542 |
 |
09916–34570 |
 |
| Reamer handle | Valve guide reamer (5 mm) | ||
|
|
|
||
| 09916–37320 |
 |
09916–43211 |
 |
| Valve guide outer reamer (10.5 mm) | Valve guide remover (4.4 mm) | ||
|
|
|
||
| 09916–43220 |
 |
09916–44310 |
 |
| Valve guide installer attachment | Valve guide remover (5 mm) | ||
|
|
|
||
| 09916–56011 |
 |
09916–57330 |
 |
| Valve guide installer attachment (protrusion: 11.5 mm) | Valve guide installer handle | ||
|
|
|
||
| 09916–77310 |
 |
09916–84511 |
 |
| Piston ring compressor (50 - 125 mm) | Forceps | ||
|
|
|
||
| 09917–47011 |
 |
09917–68222 |
 |
| Vacuum pump gauge | Crankshaft pulley holder | ||
|
|
|
||
| 09917–98221 |
 |
09919–56510 |
 |
| Valve guide stem attachment | Tightening angle gauge | ||
|
|
|
||
| 09924–17811 |
 |
09926–58010 |
 |
| Flywheel holder | Bearing remover attachment | ||
|
|
|
||
| 09944–36011 |
 |
||
| Steering wheel remover | |||
|
|
