CARPET - PASSENGER FLOOR
REMOVAL
1. Disconnect and isolate battery negative cable.

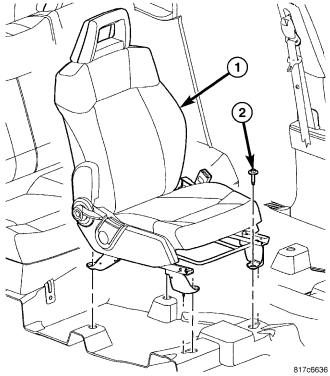

2. Remove the front seats (1), (Refer to 23 - BODY/SEATS/SEAT - FRONT - REMOVAL).

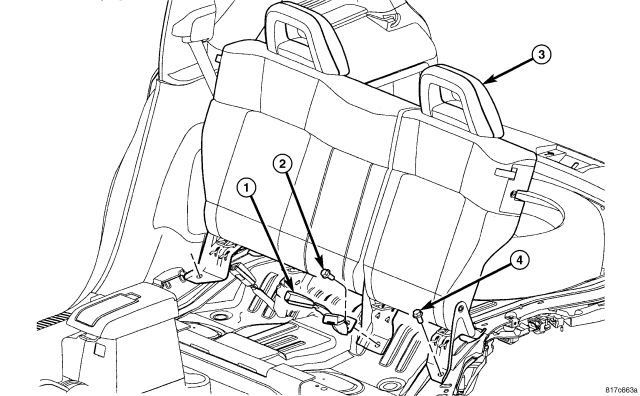

3. Remove the rear seat backs (3), (Refer to 23 - BODY/SEATS/SEAT BACK - REAR - REMOVAL).

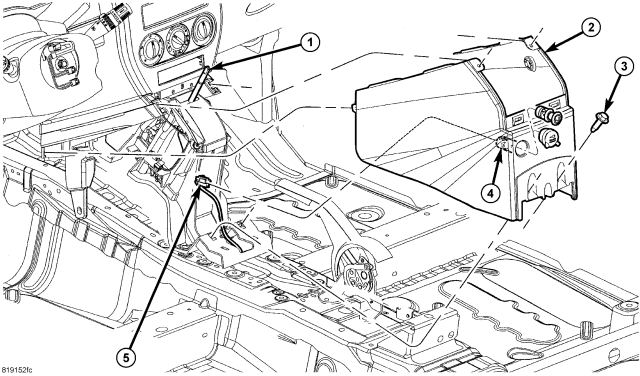

4. Remove the floor console (1), (Refer to 23 - BODY/INTERIOR/CONSOLE - FLOOR - REMOVAL)
5. Remove the shifter housing (2), (Refer to 23 - BODY/INTERIOR/CONSOLE - SHIFTER HOUSING - REMOVAL).

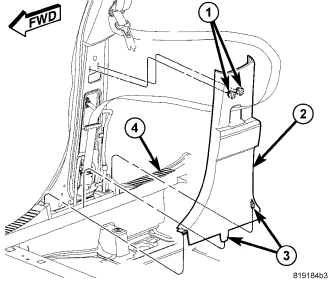

6. Remove the lower B-pillar trim (2), (Refer to 23 - BODY/INTERIOR/PANEL - B-PILLAR TRIM, UPPER - REMOVAL).

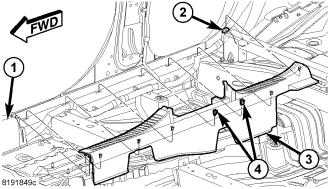

7. Remove the door scuff plates (3), (Refer to 23 - BODY/INTERIOR/PLATE - DOOR SCUFF - REMOVAL).

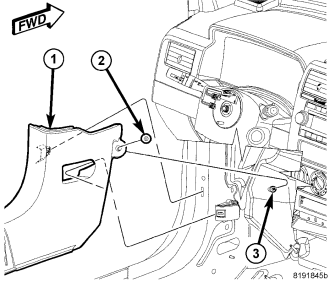

8. Remove the cowl side trim panels (1), (Refer to 23 - BODY/INTERIOR/PANEL - COWL SIDE - REMOVAL).

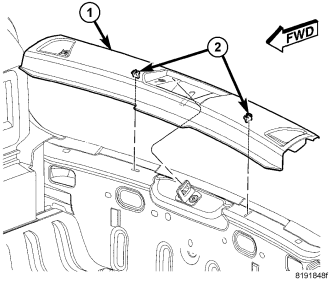

9. Remove the liftgate scuff plate (1), (Refer to 23 - BODY/INTERIOR/PLATE - LIFTGATE SCUFF - REMOVAL).
10. Remove the quarter trim panels (2), (Refer to 23 - BODY/INTERIOR/PANEL - QUARTER TRIM - REMOVAL).

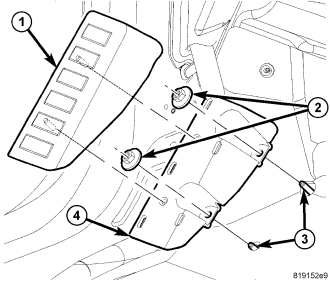

11. Remove the foot rest cover (1).
12. Remove the nuts (2) and the footrest (4), if equipped.

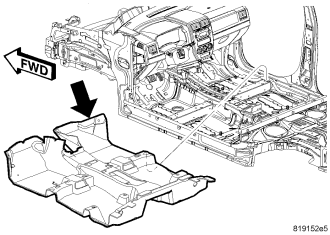

13. Remove the carpet.
INSTALLATION
1. Install the carpet,
2. Install the footrest (4), the nuts (2), and the cover (1).
3. Install the quarter trim panels (2), (Refer to 23 - BODY/INTERIOR/PANEL - QUARTER TRIM - INSTALLATION).
4. Install the liftgate scuff plate (1), (Refer to 23 - BODY/INTERIOR/PLATE - LIFTGATE SCUFF - INSTALLATION).
5. Install the cowl side trim panels (1), (Refer to 23 - BODY/INTERIOR/PANEL - COWL SIDE - INSTALLATION).
6. Install the door scuff plates (3), (Refer to 23 - BODY/INTERIOR/PLATE - DOOR SCUFF - INSTALLATION).
7. Install the lower B-pillar trim (2), (Refer to 23 - BODY/INTERIOR/PANEL - B-PILLAR TRIM, UPPER - INSTALLATION)
8. Install the shifter housing (2), (Refer to 23 - BODY/INTERIOR/CONSOLE - SHIFTER HOUSING - INSTALLATION).
9. Install the floor console (1), (Refer to 23 - BODY/INTERIOR/CONSOLE - FLOOR - INSTALLATION).
10. Install the rear seat backs (3), (Refer to 23 - BODY/SEATS/SEAT BACK - REAR - INSTALLATION).
11. Install the front seats (1), (Refer to 23 - BODY/SEATS/SEAT - FRONT - INSTALLATION).
12. Connect battery negative cable.
