Fail-Safe Table
Precautions: Precautions for Diagnosing Trouble · Precautions for Disassembly and Reassembly · Precautions for Transmission / Transaxle · General safety (00)
This function is provided by the safe mechanism that assures safe driveability even when the solenoid valve, sensor or its circuit fails. The following table shows the fail-safe function for each fail condition of sensor, solenoid valve or its circuit.
| DTC | DTC name | Fail-safe operation | Fail-safe cancel condition |
|---|---|---|---|
P0562
|
System Voltage Low |
•TCM stops the following control / function.
—Learning control
•Gear shifts to 3rd and remains in 3rd when the failure occurs in 1st, 2nd or 3rd gear.—Lock-up function —Slip controlled lock-up function —Garage shift control —Reverse control —Engine auto stop and start control (ENG A-STOP model) •Gear shifts to 5th and remains in 5th when the failure occurs in 4th, 5th or 6th gear. •Gear remains in R range when the failure occurs in R range. •Emergency mode 5 |
After switching ignition from “OFF” to “ON” or when vehicle is stopped after TCM judges the system to be normal. |
| P0563
|
System Voltage High |
•TCM stops learning control.
•Emergency mode 3 |
After switching ignition from “OFF” to “ON” or when vehicle is stopped after TCM judges the system to be normal. |
 P0602
|
Control Module Programming Error | — | — |
| P0604
|
Internal Control Module Random Access Memory (RAM) Error | Emergency mode 3
|
After switching ignition from “OFF” to “ON”. |
| P062F
|
Internal Control Module EEPROM Error | TCM controls with default value. | After switching ignition from “OFF” to “ON”. |
| P0706
|
Transmission Range Sensor “A” Circuit Range / Performance |
•TCM stops the following control / function.
—Learning control
•Gear remains in current position when the failure occurs.—Start-lock control —Adaptive shift control •Emergency mode 4 |
After switching ignition from “OFF” to “ON” or when vehicle is stopped after TCM judges the system to be normal. |
| P0707
|
Transmission Range Sensor “A” Circuit Low |
•TCM stops the following control / function.
—Learning control
•Gear remains in current position when the failure occurs.—Start-lock control —Adaptive shift control •Emergency mode 4 |
After switching ignition from “OFF” to “ON” or when vehicle is stopped after TCM judges the system to be normal. |
| P0708
|
Transmission Range Sensor “A” Circuit High |
•TCM stops the following control / function.
—Learning control
•Gear remains in current position when the failure occurs.—Start-lock control —Adaptive shift control •Emergency mode 4 |
After switching ignition from “OFF” to “ON” or when vehicle is stopped after TCM judges the system to be normal. |
| P0711
|
Transmission Fluid Temperature Sensor “A” Circuit Range / Performance |
•TCM controls actuators assuming that ATF temperature is 80 °C (176 °F).
•TCM stops the following control / function.
—Learning control
—Slip controlled lock-up function —Engine auto stop and start control (ENG A-STOP model) |
After switching ignition from “OFF” to “ON” or when vehicle is stopped after TCM judges the system to be normal. |
| P0712
|
Transmission Fluid Temperature Sensor “A” Circuit Low |
•TCM controls actuators assuming that ATF temperature is 80 °C (176 °F).
•TCM stops the following control / function.
—Learning control
—Slip controlled lock-up function —Engine auto stop and start control (ENG A-STOP model) |
After switching ignition from “OFF” to “ON” or when vehicle is stopped after TCM judges the system to be normal. |
| P0713
|
Transmission Fluid Temperature Sensor “A” Circuit High |
•TCM controls actuators assuming that ATF temperature is 80 °C (176 °F).
•TCM stops the following control / function.
—Learning control
—Slip controlled lock-up function —Engine auto stop and start control (ENG A-STOP model) |
After switching ignition from “OFF” to “ON” or when vehicle is stopped after TCM judges the system to be normal. |
| P0717
|
Input / Turbine Speed Sensor “A” Circuit No Signal |
•TCM stops the following control / function.
—Learning control
•TCM calculates input shaft speed by output shaft speed sensor.—Slip controlled lock-up function —Lock-up function —Garage shift control —Multiplex shift control —Engine auto stop and start control (ENG A-STOP model) •Emergency mode 3 |
After switching ignition from “OFF” to “ON” or when vehicle is stopped after TCM judges the system to be normal. |
| P0722
|
Output Speed Sensor Circuit No Signal |
•TCM stops the following control / function.
—Learning control
•TCM calculates output shaft speed by input shaft speed sensor.—Adaptive shift control —Garage shift control —Reverse control —Engine auto stop and start control (ENG A-STOP model) •Emergency mode 2 |
After switching ignition from “OFF” to “ON” or when vehicle is stopped after TCM judges the system to be normal. |
| P0729
|
Gear 6 Incorrect Ratio |
•TCM stops the following control / function.
—Learning control
•Emergency mode 2 —Engine auto stop and start control (ENG A-STOP model) |
After switching ignition from “OFF” to “ON”. |
| P072A
|
Stuck in Neutral | — | — |
| P0731
|
Gear 1 Incorrect Ratio |
•TCM stops the following control / function.
—Learning control
•Emergency mode 2 —Adaptive shift control —Engine auto and start stop control (ENG A-STOP model) |
After switching ignition from “OFF” to “ON”. |
| P0732
|
Gear 2 Incorrect Ratio |
•TCM stops the following control / function.
—Learning control
•Emergency mode 2 —Engine auto stop and start control (ENG A-STOP model) |
After switching ignition from “OFF” to “ON”. |
| P0733
|
Gear 3 Incorrect Ratio |
•TCM stops the following control / function.
—Learning control
•Emergency mode 2 —Engine auto stop and start control (ENG A-STOP model) |
After switching ignition from “OFF” to “ON”. |
| P0734
|
Gear 4 Incorrect Ratio |
•TCM stops the following control / function.
—Learning control
•Emergency mode 2 —Engine auto stop and start control (ENG A-STOP model) |
After switching ignition from “OFF” to “ON”. |
| P0735
|
Gear 5 Incorrect Ratio |
•TCM stops the following control / function.
—Learning control
•Emergency mode 2 —Engine auto stop and start control (ENG A-STOP model) |
After switching ignition from “OFF” to “ON”. |
| P073E
|
Unable to Engage Reverse | TCM stops the following control / function.
•Learning control
•Engine auto stop and start control (ENG A-STOP model) |
After switching ignition from “OFF” to “ON”. |
| P073F
|
Unable to Engage Gear 1 |
•TCM stops the following control / function.
—Slip controlled lock-up function
•Emergency mode 2 —Lock-up function —Gear shift control —Adaptive shift control —Engine auto stop and start control (ENG A-STOP model) |
After switching ignition from “OFF” to “ON”. |
| P0741
|
Torque Converter Clutch Circuit Performance / Stuck Off | TCM stops the following control / function.
•Learning control
•Slip controlled lock-up function •Lock-up function |
After switching ignition from “OFF” to “ON”. |
| P0742
|
Torque Converter Clutch Circuit Stuck On | TCM stops the following control / function.
•Learning control
•Slip controlled lock-up function •Lock-up function •Engine auto stop and start control (ENG A-STOP model) |
After switching ignition from “OFF” to “ON”. |
| P0747
|
Pressure Control Solenoid “A” Stuck On |
•TCM stops the following control / function.
—Learning control
•Emergency mode 2 —Engine auto stop and start control (ENG A-STOP model) |
After switching ignition from “OFF” to “ON”. |
| P074A
|
Unable To Engage Gear 2 | TCM stops the following control / function.
•Learning control
•Adaptive shift control •Engine auto stop and start control (ENG A-STOP model) |
After switching ignition from “OFF” to “ON”. |
| P074B
|
Unable To Engage Gear 3 | TCM stops the following control / function.
•Learning control
•Adaptive shift control •Engine auto stop and start control (ENG A-STOP model) |
After switching ignition from “OFF” to “ON”. |
| P074C
|
Unable To Engage Gear 4 | TCM stops the following control / function.
•Learning control
•Adaptive shift control •Engine auto stop and start control (ENG A-STOP model) |
After switching ignition from “OFF” to “ON”. |
| P074D
|
Unable To Engage Gear 5 | TCM stops the following control / function.
•Learning control
•Adaptive shift control •Engine auto stop and start control (ENG A-STOP model) |
After switching ignition from “OFF” to “ON”. |
| P074E
|
Unable To Engage Gear 6 | TCM stops the following control / function.
•Learning control
•Adaptive shift control •Engine auto stop and start control (ENG A-STOP model) |
After switching ignition from “OFF” to “ON”. |
| P0777
|
Pressure Control Solenoid “B” Stuck On |
•TCM stops the following control / function.
—Adaptive shift control
•Emergency mode 2 —Engine auto stop and start control (ENG A-STOP model) |
After switching ignition from “OFF” to “ON”. |
| P0797
|
Pressure Control Solenoid “C” Stuck On |
•TCM stops the following control / function.
—Adaptive shift control
•Emergency mode 2 —Engine auto stop and start control (ENG A-STOP model) |
After switching ignition from “OFF” to “ON”. |
| P0961
|
Pressure Control Solenoid “A” Control Circuit Range / Performance |
•TCM stops learning control.
•Emergency mode 1 |
After switching ignition from “OFF” to “ON”. |
| P0962
|
Pressure Control Solenoid “A” Control Circuit Low |
•TCM stops learning control.
•Emergency mode 1 |
After switching ignition from “OFF” to “ON”. |
| P0963
|
Pressure Control Solenoid “A” Control Circuit High |
•TCM stops learning control.
•Emergency mode 1 |
After switching ignition from “OFF” to “ON”. |
| P0965
|
Pressure Control Solenoid “B” Control Circuit Range / Performance |
•TCM stops learning control.
•Emergency mode 1 |
After switching ignition from “OFF” to “ON”. |
| P0966
|
Pressure Control Solenoid “B” Control Circuit Low |
•TCM stops learning control.
•Emergency mode 1 |
After switching ignition from “OFF” to “ON”. |
| P0967
|
Pressure Control Solenoid “B” Control Circuit High |
•TCM stops learning control.
•Emergency mode 1 |
After switching ignition from “OFF” to “ON”. |
| P0969
|
Pressure Control Solenoid “C” Control Circuit Range / Performance |
•TCM stops learning control.
•Emergency mode 1 |
After switching ignition from “OFF” to “ON”. |
| P0970
|
Pressure Control Solenoid “C” Control Circuit Low |
•TCM stops learning control.
•Emergency mode 1 |
After switching ignition from “OFF” to “ON”. |
| P0971
|
Pressure Control Solenoid “C” Control Circuit High |
•TCM stops learning control.
•Emergency mode 1 |
After switching ignition from “OFF” to “ON”. |
| P0973
|
Shift Solenoid “A” Control Circuit Low |
•TCM stops learning control.
•Emergency mode 3 |
After switching ignition from “OFF” to “ON”. |
| P0974
|
Shift Solenoid “A” Control Circuit High |
•TCM stops learning control.
•Emergency mode 3 |
After switching ignition from “OFF” to “ON”. |
| P0976
|
Shift Solenoid “B” Control Circuit Low |
•TCM stops learning control.
•Gear shifts to 2nd when engine brake working in 1st gear |
After switching ignition from “OFF” to “ON”. |
| P0977
|
Shift Solenoid “B” Control Circuit High |
•TCM stops learning control.
•Gear shifts to 2nd when engine brake working in 1st gear |
After switching ignition from “OFF” to “ON”. |
| P1702
|
Internal Control Module Memory Check Sum Error | Emergency mode 3
|
After switching ignition from “OFF” to “ON”. |
| P1706
|
Torque Request Communication Error From TCM | — | — |
| P1718
|
Unable To Engage Gear 1 With Engine Brake | TCM stops learning control. | After switching ignition from “OFF” to “ON”. |
| P1719
|
Gear 1 With Engine Brake Incorrect Ratio |
•TCM stops learning control.
•Gear shifts to 2nd when engine brake working in 1st gear (except 4th gear) |
After switching ignition from “OFF” to “ON”. |
| P1727
|
Reverse Lamp Control Circuit Low | — | — |
| P1728
|
Reverse Lamp Control Circuit High | — | — |
| P1736
|
Output Speed Sensor Circuit Low |
•TCM stops the following control / function.
—Learning control
•TCM calculates output shaft speed by input shaft speed sensor.—Adaptive shift control —Garage shift control —Reverse control —Engine auto stop and start control (ENG A-STOP model) •Emergency mode 3 |
After switching ignition from “OFF” to “ON” or when vehicle is stopped after TCM judges the system to be normal. |
| P1737
|
Output Speed Sensor Circuit High |
•TCM stops the following control / function.
—Learning control
•TCM calculates output shaft speed by input shaft speed sensor.—Adaptive shift control —Garage shift control —Reverse control —Engine auto stop and start control (ENG A-STOP model) •Emergency mode 3 |
After switching ignition from “OFF” to “ON” or when vehicle is stopped after TCM judges the system to be normal. |
| P1738
|
Input / Turbine Speed Sensor “A” Circuit Low |
•TCM stops the following control / function.
— Learning control
•TCM calculates input shaft speed by output shaft speed sensor.—Slip controlled lock-up function —Lock-up function —Garage shift control —Multiplex shift control —Engine auto stop and start control (ENG A-STOP model) •Emergency mode 3 |
After switching ignition from “OFF” to “ON” or when vehicle is stopped after TCM judges the system to be normal. |
| P1739
|
Input / Turbine Speed Sensor “A” Circuit High |
•TCM stops the following control / function.
—Learning control
•TCM calculates input shaft speed by output shaft speed sensor.—Slip controlled lock-up function —Lock-up function —Garage shift control —Multiplex shift control —Engine auto stop and start control (ENG A-STOP model) •Emergency mode 3 |
After switching ignition from “OFF” to “ON” or when vehicle is stopped after TCM judges the system to be normal. |
| P1742
|
Auxiliary Transmission Fluid Pump Supply Voltage Low | TCM stops engine auto stop and start control. | After switching ignition from “OFF” to “ON” or when vehicle is stopped after TCM judges the system to be normal. |
| P1743
|
Auxiliary Transmission Fluid Pump Supply Voltage High | TCM stops engine auto stop and start control. | After switching ignition from “OFF” to “ON” or when vehicle is stopped after TCM judges the system to be normal. |
| P184C
|
Solenoid Driver “A” circuit Range / Performance |
•TCM stops learning control.
•Emergency mode 1 |
After switching ignition from “OFF” to “ON”. |
| P185E
|
TCM Safety Function Failure |
•TCM stops torque control.
•TCM controls neutral. |
After switching ignition from “OFF” to “ON”. |
| P185F
|
TCM Safety Integrity Function Failure | Emergency mode 5
|
After switching ignition from “OFF” to “ON”. |
| P2715
|
Pressure Control Solenoid “D” Stuck On |
•TCM stops the following control / function.
—Adaptive shift control
•Emergency mode 2 —Engine auto stop and start control (ENG A-STOP model) |
After switching ignition from “OFF” to “ON”. |
| P2719
|
Pressure Control Solenoid “D” Control Circuit Range / Performance |
•TCM stops learning control.
•Emergency mode 1 |
After switching ignition from “OFF” to “ON”. |
| P2720
|
Pressure Control Solenoid “D” Control Circuit Low |
•TCM stops learning control.
•Emergency mode 1 |
After switching ignition from “OFF” to “ON”. |
| P2721
|
Pressure Control Solenoid “D” Control Circuit High |
•TCM stops learning control.
•Emergency mode 1 |
After switching ignition from “OFF” to “ON”. |
| P2728
|
Pressure Control Solenoid “E” Control Circuit Range / Performance |
•TCM stops learning control.
•Emergency mode 1 |
After switching ignition from “OFF” to “ON”. |
| P2729
|
Pressure Control Solenoid “E” Control Circuit Low |
•TCM stops learning control.
•Emergency mode 1 |
After switching ignition from “OFF” to “ON”. |
| P2730
|
Pressure Control Solenoid “E” Control Circuit High |
•TCM stops learning control.
•Emergency mode 1 |
After switching ignition from “OFF” to “ON”. |
| P2762
|
Torque Converter Clutch Pressure Control Solenoid Control Circuit Range / Performance |
•TCM stops learning control.
•Emergency mode 1 |
After switching ignition from “OFF” to “ON”. |
| P2763
|
Torque Converter Clutch Pressure Control Solenoid Control Circuit High | TCM stops the following control / function.
•Learning control
•Slip controlled lock-up function •Lock-up function •Engine auto stop and start control (ENG A-STOP model) |
After switching ignition from “OFF” to “ON”. |
| P2764
|
Torque Converter Clutch Pressure Control Solenoid Control Circuit Low | TCM stops the following control / function.
•Learning control
•Slip controlled lock-up function •Lock-up function •Engine auto stop and start control (ENG A-STOP model) |
After switching ignition from “OFF” to “ON”. |
| P2797
|
Auxiliary Transmission Fluid Pump Performance | TCM stops engine auto stop and start control. | After switching ignition from “OFF” to “ON”. |
| P2798
|
Auxiliary Transmission Fluid Pump Control Circuit Low | TCM stops engine auto stop and start control. | After switching ignition from “OFF” to “ON”. |
| P2799
|
Auxiliary Transmission Fluid Pump Control Circuit High | TCM stops engine auto stop and start control. | After switching ignition from “OFF” to “ON”. |
| P2806
|
Transmission Range Sensor Alignment | TCM prevents engine from starting. | After switching ignition from “OFF” to “ON”. |
| U0073 | Control Module Communication Bus Off |
•TCM stops the following control / function.
—Learning Control
•Emergency mode 3 —Slip controlled lock-up function —Lock-up function —Adaptive shift control |
After switching ignition from “OFF” to “ON” or when vehicle is stopped after TCM judges the system to be normal. |
| U0100 | Lost Communication With ECM |
•TCM stops the following control / function.
—Learning Control
•Emergency mode 3 —Slip controlled lock-up function —Lock-up function —Adaptive shift control |
After switching ignition from “OFF” to “ON” or when vehicle is stopped after TCM judges the system to be normal. |
| U0121 | Lost Communication With ABS / ESP® Control Module | TCM stops the following control / function.
•Learning control
•Adaptive shift control |
After switching ignition from “OFF” to “ON” or when vehicle is stopped after TCM judges the system to be normal. |
| U0140 | Lost Communication With Body Control Module | — | — |
| U1082 | Lost Communication With ENG A-STOP Control Module | TCM stops engine auto stop and start control. | After switching ignition from “OFF” to “ON” or when vehicle is stopped after TCM judges the system to be normal. |
Emergency Mode
When a DTC is detected, TCM switches the emergency mode status of A/T control between emergency modes 1, 2, 3, 4 and 5. The emergency mode is deactivated when the faulty condition is corrected.
Emergency mode 1

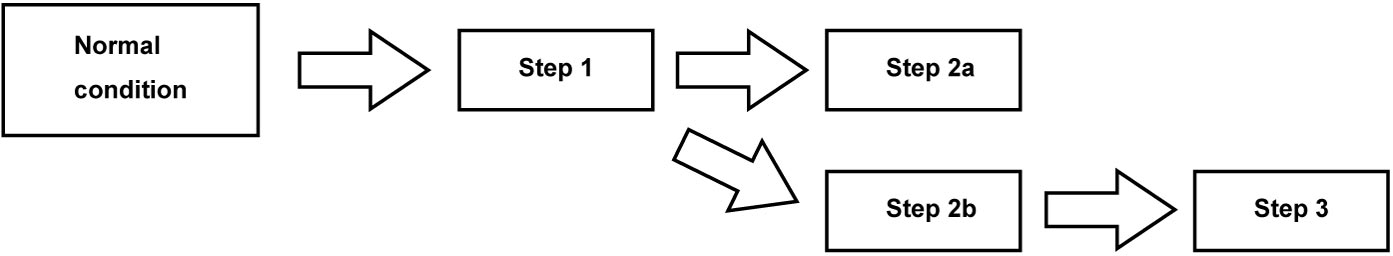

When TCM detects a DTC, emergency mode 1 shifts to step 1.
After that, if the detected DTC is any of P0963, P0967, P0971, P0977, P2721 or P2730, the mode shifts from step 1 to step 2a. If any other DTC is detected and the system recovers from solenoid current cut status in step 1, the mode shifts from step 1 to step 2b. When the vehicle is stopped, the mode shifts from step 2b to step 3.
| Emergency mode 1 | Step 1 | Step 2a | Step 2b | Step 3 | |
|---|---|---|---|---|---|
| Trouble area | Gear position when trouble is detected. | ||||
| — | Reverse | Reverse | Gear remains in current position. | Reverse | Reverse |
| Pressure control solenoid valve “A” | 1st | Solenoid current cut (shifts to 3rd) | Shifts to 1st | Shifts to 3rd | |
| 2nd | Shifts to 2nd | ||||
| 3rd | Shifts to 3rd | ||||
| 4th | Solenoid current cut (shifts to 5th) | Shifts to 4th | |||
| 5th | |||||
| 6th | |||||
| Pressure control solenoid valve “B” | 1st | Solenoid current cut (shifts to 3rd) | Shifts to 4th | Shifts to 4th | |
| 2nd | |||||
| 3rd | |||||
| 4th | Solenoid current cut (shifts to 5th) | ||||
| 5th | Shifts to 5th | ||||
| 6th | Shifts to 6th | ||||
| Pressure control solenoid valve “D” | 1st | Solenoid current cut (shifts to 3rd) | Shifts to 3rd | Shifts to 3rd | |
| 2nd | |||||
| 3rd | |||||
| 4th | Solenoid current cut (shifts to 5th) | Shifts to 5th | |||
| 5th | |||||
| 6th | |||||
| Pressure control solenoid valve “C” | 1st | Solenoid current cut (shifts to 3rd) | Shifts to 2nd | Shifts to 2nd | |
| 2nd | |||||
| 3rd | Shifts to 6th | ||||
| 4th | Solenoid current cut (shifts to 5th) | ||||
| 5th | |||||
| 6th | |||||
| Line pressure control solenoid valve | 1st | Solenoid current cut (shifts to 3rd) | Shifts to 1st | Shifts to 2nd | |
| 2nd | Shifts to 2nd | ||||
| 3rd | Shifts to 3rd | ||||
| 4th | Solenoid current cut (shifts to 5th) | Shifts to 4th | |||
| 5th | Shifts to 5th | ||||
| 6th | Shifts to 6th | ||||
| TCC solenoid valve | 1st | Solenoid current cut (shifts to 3rd) | — | — | |
| 2nd | |||||
| 3rd | |||||
| 4th | Solenoid current cut (shifts to 5th) | ||||
| 5th | |||||
| 6th | |||||
| Linear IC | 1st | Solenoid current cut (shifts to 3rd) | — | — | |
| 2nd | |||||
| 3rd | |||||
| 4th | Solenoid current cut (shifts to 5th) | ||||
| 5th | |||||
| 6th | |||||
| Reverse control | Possible | Possible | Possible | Possible | |
| Other fail-safe controls * | Inhibited | Inhibited | Inhibited | Inhibited | |
*: Learning control inhibited, Slope shift control inhibited, Garage shift control inhibited, Slip controlled lock-up control inhibited, Lock-up control inhibited, Engine speed control inhibited, Adaptive shift control inhibited, Manual mode control inhibited, ENG A-STOP control inhibited
Emergency mode 2

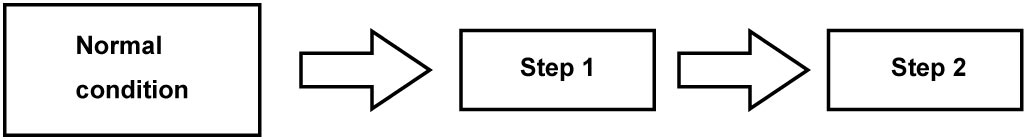

When TCM detects a DTC, emergency mode 2 shifts to step 1. After that, when the vehicle is stopped, the mode shifts from step 1 to step 2.
| Emergency mode 2 | Step 1 | Step 2 | |
|---|---|---|---|
| Oil pressure when trouble is detected. | Gear position when trouble is detected. | ||
| Pressure control solenoid valve “A”: MAX | — | Gear remains in current position. | Shifts to 3rd |
| Pressure control solenoid valve “A”: MIN | — | After solenoid current is cut off, shifts to 3rd if possible. Shifts to 5th if shifting to 3rd is not possible. |
|
| Pressure control solenoid valve “B”: MAX | — | Shifts to 4th | |
| Pressure control solenoid valve “B”: MIN | — | Shifts to 3rd | |
| Pressure control solenoid valve “C”: MAX | — | Shifts to 2nd | |
| Pressure control solenoid valve “C”: MIN | — | Shifts to 3rd | |
| Pressure control solenoid valve “D”: MAX | — | Shifts to 3rd | |
| Pressure control solenoid valve “D”: MIN | — | Shifts to 2nd | |
| Reverse control | Possible | Possible | |
| Other fail-safe controls * | Inhibited | Inhibited | |
*: Learning control inhibited, Slope shift control inhibited, Garage shift control inhibited, Slip controlled lock-up control inhibited, Lock-up control inhibited, Engine speed control inhibited, Adaptive shift control inhibited, Manual mode control inhibited, ENG A-STOP control inhibited
Emergency mode 3
When TCM detects a DTC, emergency mode 3 shifts to step 1. After that, when the vehicle is stopped, the mode shifts from step 1 to step 2.
| Emergency mode 3 | Step 1 | Step 2 | |
|---|---|---|---|
| Trouble area | Gear position when trouble is detected. | ||
| Other than shift solenoid valve “A” | Reverse | Gear remains in current position. | Reverse |
| 1st | Shifts to 3rd | ||
| 2nd | |||
| 3rd | |||
| 4th | |||
| 5th | |||
| 6th | |||
| Shift solenoid valve “A” | Reverse | Gear remains in current position. | Reverse |
| 1st | Shifts to 2nd | ||
| 2nd | |||
| 3rd | Shifts to 4th | ||
| 4th | Gear remains in current position. | ||
| 5th | Shifts to 6th | ||
| 6th | Gear remains in current position. | ||
| Reverse control | Possible | Possible | |
| Other fail-safe controls * | Inhibited | Inhibited | |
*: Learning control inhibited, Slope shift control inhibited, Garage shift control inhibited, Slip controlled lock-up control inhibited, Lock-up control inhibited, Engine speed control inhibited, Adaptive shift control inhibited, Manual mode control inhibited, ENG A-STOP control inhibited
Emergency mode 4
When TCM detects a DTC, emergency mode 4 shifts to step 1. After that, when the vehicle is stopped, the mode shifts from step 1 to step 2.
| Emergency mode 4 | Step 1 | Step 2 |
|---|---|---|
| Gear position when trouble is detected. | ||
| Reverse | Gear remains in current position. | Reverse |
| 1st | Shifts to 3rd | |
| 2nd | ||
| 3rd | Shifts to 4th | |
| 4th | Gear remains in current position. | |
| 5th | Shifts to 6th | |
| 6th | Gear remains in current position. | |
| Reverse control | Impossible | Impossible |
| Other fail-safe controls * | Inhibited | Inhibited |
*: Learning control inhibited, Slope shift control inhibited, Garage shift control inhibited, Slip controlled lock-up control inhibited, Lock-up control inhibited, Engine speed control inhibited, Adaptive shift control inhibited, Manual mode control inhibited, ENG A-STOP control inhibited
Emergency mode 5

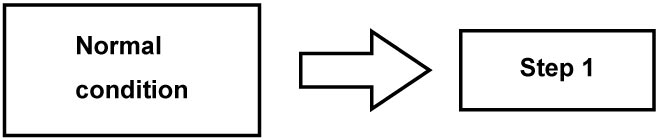

When TCM detects a DTC, emergency mode 5 shifts to step 1.
| Emergency mode 5 | Step 1 |
|---|---|
| Gear position when trouble is detected. | |
| Reverse | Reverse |
| 1st | Shifts to 3rd |
| 2nd | |
| 3rd | |
| 4th | Shifts to 5th |
| 5th | |
| 6th | |
| Reverse control | Impossible |
| Other fail-safe controls * | Inhibited |
*: Learning control inhibited, Slope shift control inhibited, Garage shift control inhibited, Slip controlled lock-up control inhibited, Lock-up control inhibited, Engine speed control inhibited, Adaptive shift control inhibited, Manual mode control inhibited, ENG A-STOP control inhibited
