Section 5 - Transmission / Transaxle
Section 5 - Transmission / Transaxle
Section 5A - Automatic Transmission/Transaxle
| 09900–20605 |
 |
09900–20607 |
 |
| Dial calipers (1/100 mm, 10 - 34 mm) | Dial gauge | ||
 |
|
||
| 09900–20701 |
 |
09913–65135 |
 |
| Magnetic stand | Bearing puller | ||
|
|
|
||
| 09913–75510 |
 |
09913–75520 |
 |
| Bearing installer | Bearing installer | ||
|
|
|
||
| 09913–75830 |
 |
09913–85210 |
 |
| Steering pinion bush installer | Bearing installer | ||
|
|
|
||
| 09921–26010 |
 |
09924–74510 |
 |
| Bearing outer race remover collar | Bearing and oil seal handle | ||
|
|
|
||
| 09925–14520 |
 |
09925–16510 |
 |
| Bearing and oil seal installer (80 x 50 mm) | Oil seal installer | ||
|
|
|
||
| 09925–37811–001 |
 |
09925–86010 |
 |
| Oil pressure gauge | Bearing puller attachment | ||
|
|
|
||
| 09928–06070 |
 |
09928–06080 |
 |
| Differential preload adapter | Differential preload adapter | ||
|
|
|
||
| 09942–15511 |
 |
09944–68210 |
 |
| Sliding hammer | Bearing & oil seal installer | ||
|
|
|
||
| 09944–88220 |
 |
09944–96013 |
 |
| Oil seal installer | Bearing outer race remover | ||
|
|
|
||
| 09945–56510 |
 |
09951–18211 |
 |
| Trailing rod bush remover | Oil seal remover & installer No. 2 | ||
|
|
|
||
| SUZUKI scan tool (Suzuki SDT-II) |
 |
||
| — | |||
|
|
Section 5B - Manual Transmission/Transaxle
5 M/T
| 09900–20607 |
|
09900–20701 |
|
| Dial gauge | Magnetic stand | ||
|
|
|
||
| 09912–34510 |
 |
09913–50121 |
 |
| Case separator | Oil seal remover | ||
|
|
|
||
| 09913–65135 |
|
09913–70123 |
 |
| Bearing puller | Bearing installer | ||
|
|
|
||
| 09913–75821 |
 |
09913–76010 |
 |
| Bearing installer attachment | Bearing installer | ||
|
|
|
||
| 09913–80113 |
 |
09913–84510 |
 |
| Bearing installer | Bearing installer | ||
|
|
|
||
| 09913–85210 |
|
09913–85230 |
 |
| Bearing installer | Bearing remover tool | ||
|
|
|
||
| 09921–26010 |
|
09921–96510 |
 |
| Bearing outer race remover collar | Oil pan seal cutter | ||
|
|
|
||
| 09922–76340 |
 |
09922–85811 |
 |
| Bevel pinion rear collar | Spring pin remover (4.5 mm) | ||
|
|
|
||
| 09923–78210 |
 |

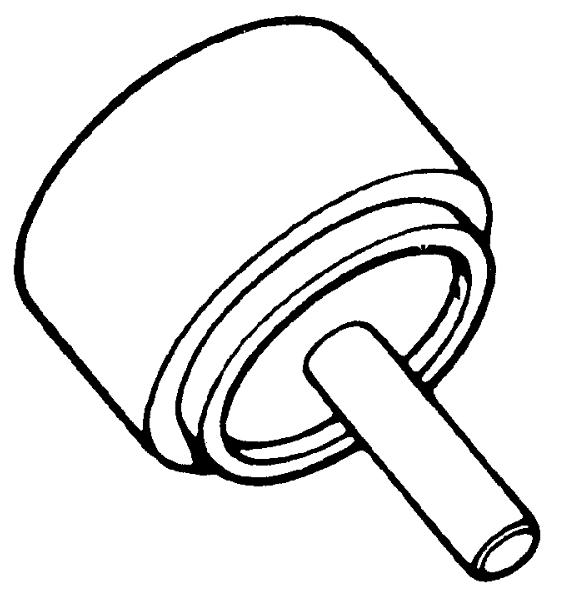

09924–07710 |
 |
| Bearing installer | Synchronizer hub installer | ||
|
|
|
||
| 09924–74510 |
|

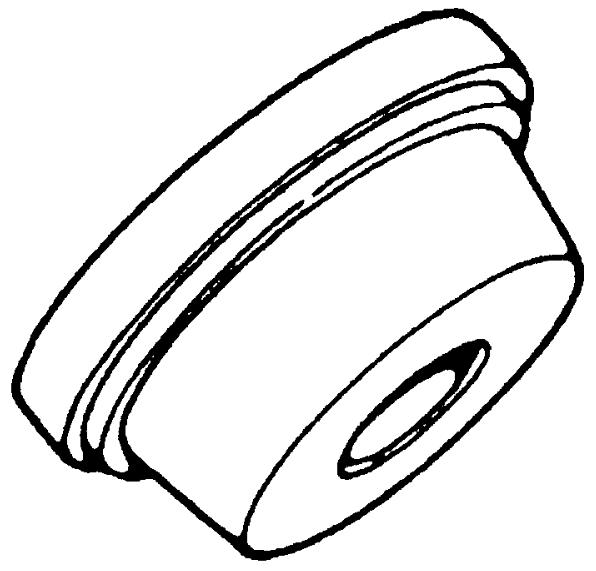

09924–84510–004 |
 |
| Bearing and oil seal handle | Bearing installer attachment | ||
|
|
|
||
| 09925–14520 |
|
09927–76060 |
 |

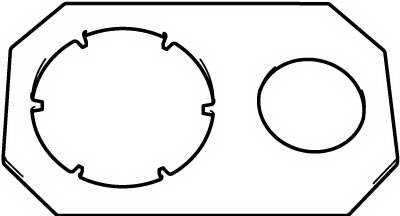

| Bearing and oil seal installer (80 x 50 mm) | Gear holder | ||
|
|
|
||
| 09930–30104 |
 |

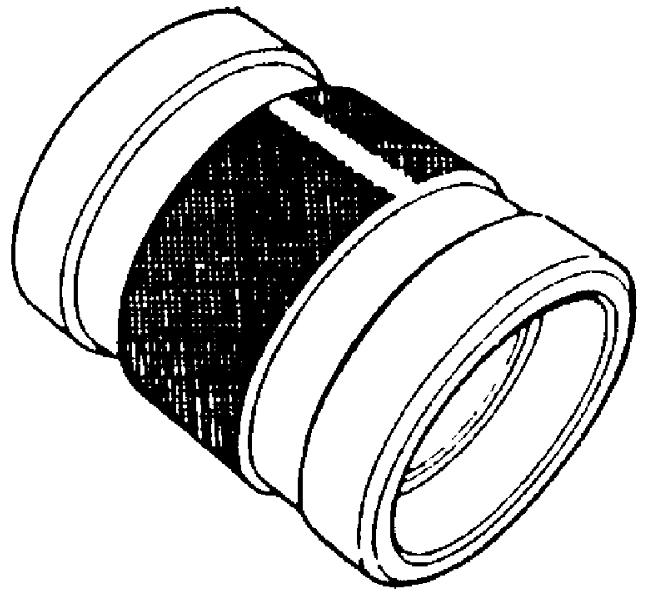

09940–54910 |
 |
| Sliding shaft | Front fork oil seal install driver | ||
|
|
|
||
| 09941–64511 |
 |
09942–15511 |
|

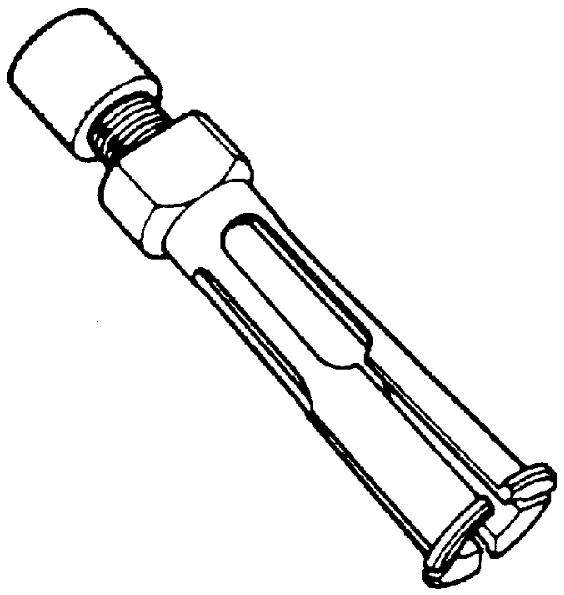

| Bearing and oil seal remover (30 mm min.) | Sliding hammer | ||
|
|
|
||
| 09944–66010 |
 |
09944–96013 |
|
| Oil seal installer | Bearing outer race remover | ||
|
|
|
||

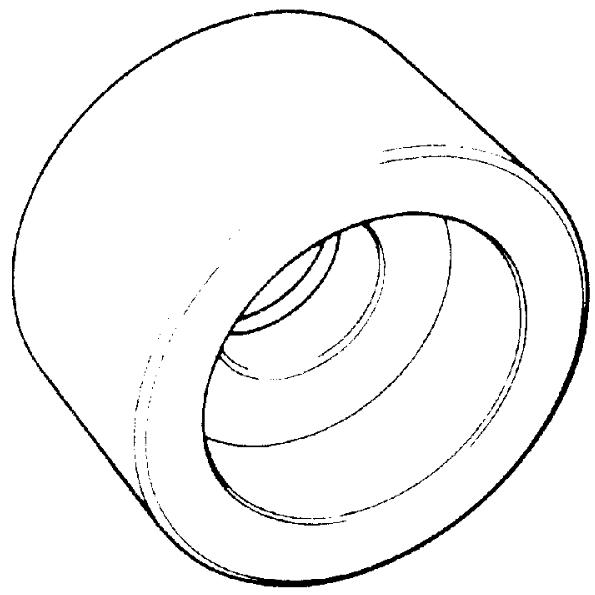

| 09951–16060 |
 |

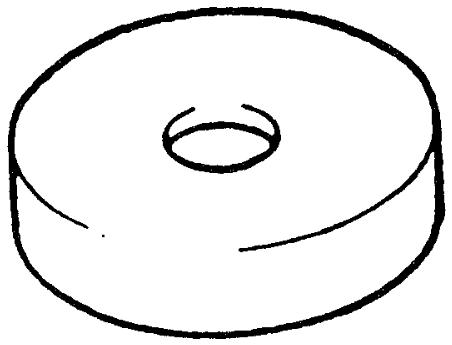

09951–46010 |
 |
| Control arm bush remover | Drive shaft oil seal installer | ||
|
|
|
||
| 09951–76010 |
 |
09952–06010 |
 |
| Bearing installer | Dial gauge plate No.1 | ||
|
|
|
K14C-6M/T Model
| 09900–06107 |
 |
09900–20607 |
|

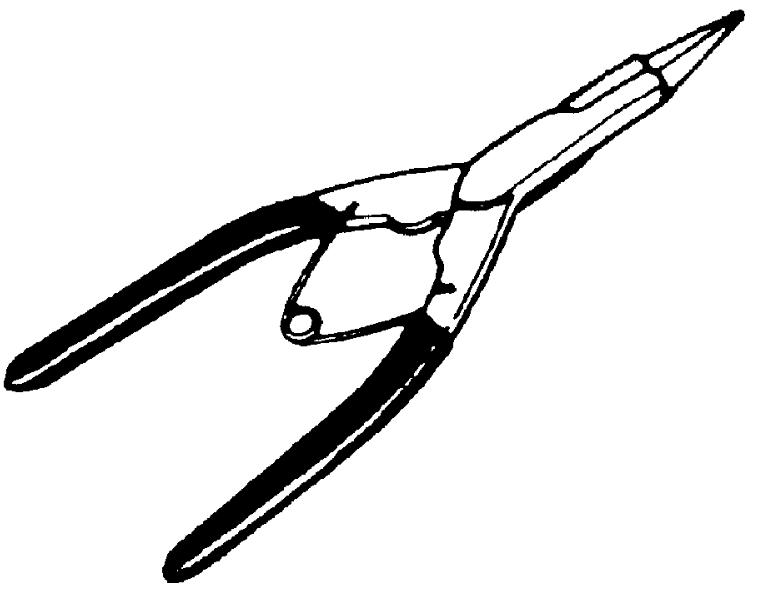

| Snap ring pliers (opening type) | Dial gauge | ||
|
|
|
||
| 09900–20701 |
|
09912–34510 |
|
| Magnetic stand | Case separator | ||
|
|
|
||
| 09913–50121 |
|
09913–65135 |
|
| Oil seal remover | Bearing puller | ||
|
|
|
||
| 09913–70123 |
|
09913–75830 |
|
| Bearing installer | Steering pinion bush installer | ||
|
|
|
||
| 09913–84510 |
|
09913–85210 |
|
| Bearing installer | Bearing installer | ||
|
|
|
||
| 09913–85230 |
|
09921–26010 |
|
| Bearing remover tool | Bearing outer race remover collar | ||
|
|
|
||
| 09922–28030 |
 |
09922–85811 |
|

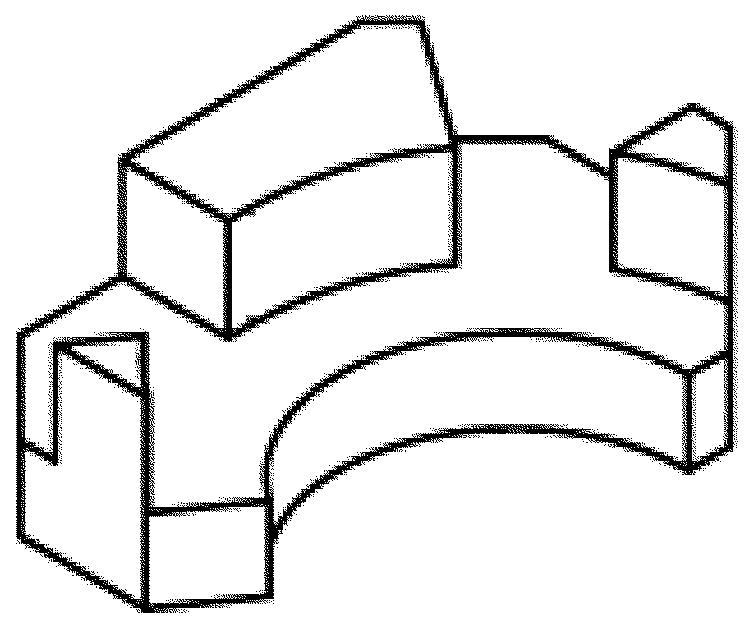

| Shift cable lever stopper | Spring pin remover (4.5 mm) | ||
|
|
|
||
| 09922–89810 |
 |
09924–07720 |
 |
| Shifter lock pin remover (3.5 mm) | Synchronizer hub installer | ||
|
|
|
||
| 09924–74510 |
|
09925–14520 |
|
| Bearing and oil seal handle | Bearing and oil seal installer (80 x 50 mm) | ||
|
|
|
||
| 09925–15410 |
 |
09925–78210 |
 |
| Oil seal installer | Spring pin remover (6 mm) | ||
|
|
|
||
| 09940–54910 |
|

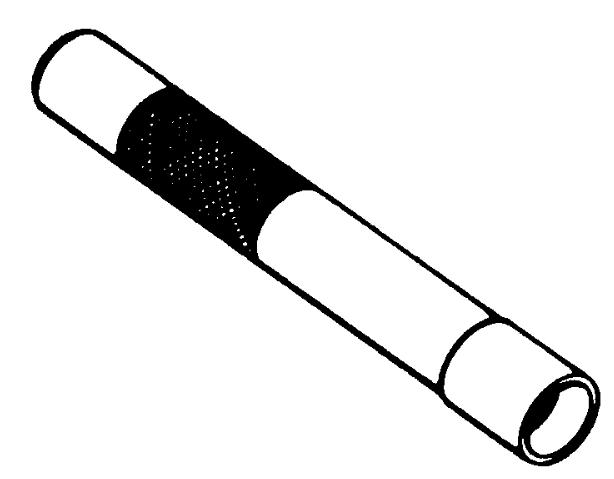

09941–74910 |
 |
| Front fork oil seal install driver | Steering stem bearing remover and installer | ||
|
|
|
||
| 09942–15511 |
|
09944–66010 |
|
| Sliding hammer | Oil seal installer | ||
|
|
|
||
| 09944–77030 |
 |
09944–88220 |
|
| Bearing / cover installer support | Oil seal installer | ||
|
|
|
||
| 09944–96013 |
|
09945–55410 |
 |
| Bearing outer race remover | Bushing installer | ||
|
|
|
||
| 09952–06010 |
|
||
| Dial gauge plate No.1 | |||
|
|
D16AA-6M/T Model
| 09900–06107 |
|
09900–20607 |
|
| Snap ring pliers (opening type) | Dial gauge | ||
|
|
|
||
| 09900–20701 |
|
09912–34510 |
|
| Magnetic stand | Case separator | ||
|
|
|
||
| 09913–50121 |
|
09913–65135 |
|
| Oil seal remover | Bearing puller | ||
|
|
|
||
| 09913–70123 |
|
09913–75830 |
|
| Bearing installer | Steering pinion bush installer | ||
|
|
|
||
| 09913–76010 |
|
09913–85210 |
|
| Bearing installer | Bearing installer | ||
|
|
|
||
| 09913–85230 |
|
09921–26010 |
|
| Bearing remover tool | Bearing outer race remover collar | ||
|
|
|
||
| 09922–28030 |
|
09922–85811 |
|
| Shift cable lever stopper | Spring pin remover (4.5 mm) | ||
|
|
|
||
| 09922–89810 |
|
09924–07720 |
|
| Shifter lock pin remover (3.5 mm) | Synchronizer hub installer | ||
|
|
|
||
| 09924–74510 |
|
09925–14520 |
|
| Bearing and oil seal handle | Bearing and oil seal installer (80 x 50 mm) | ||
|
|
|
||
| 09925–15410 |
|
09925–78210 |
|
| Oil seal installer | Spring pin remover (6 mm) | ||
|
|
|
||
| 09926–27610 |
 |
09940–54910 |
|
| Oil seal installer | Front fork oil seal install driver | ||
|
|
|
||
| 09941–74910 |
|
09942–15511 |
|
| Steering stem bearing remover and installer | Sliding hammer | ||
|
|
|
||
| 09944–66010 |
|
09944–77030 |
|
| Oil seal installer | Bearing / cover installer support | ||
|
|
|
||
| 09944–96013 |
|
09945–55410 |
|

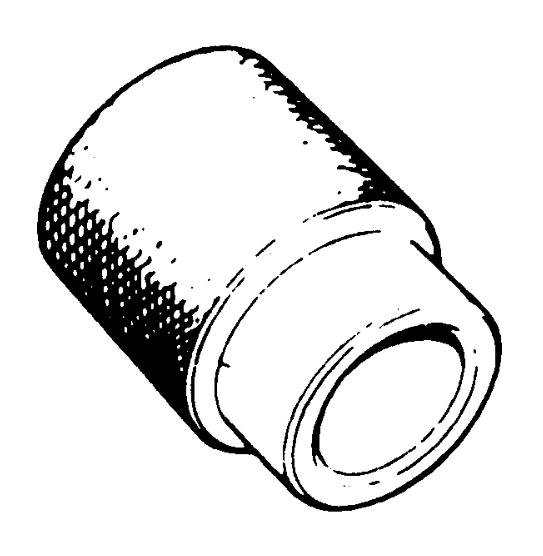

| Bearing outer race remover | Bushing installer | ||
|
|
|
||
| 09952–06010 |
|
||
| Dial gauge plate No.1 | |||
|
|
Section 5C - Clutch
5 M/T
| 09923–36320 |
 |
09924–17811 |
 |
| Clutch center guide (15 mm) | Flywheel holder | ||
|
|
|
K14C-6M/T Model
| 09923–36340 |
 |
09924–17811 |
|
| Clutch center guide | Flywheel holder | ||
|
|
|
D16AA-6M/T Model

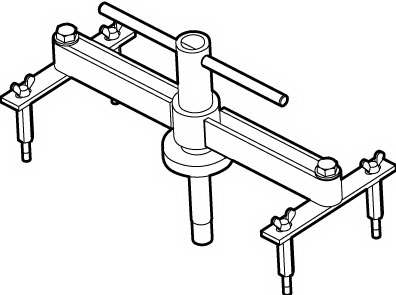

| 09920–47910 |
 |

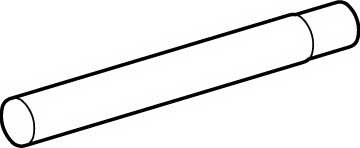

09923–37910 |
 |
| Clutch cover installer | Clutch center guide | ||
|
|
|
||
| 09923–87910 |
 |
09924–17811 |
|
| Clutch cover holder | Flywheel holder | ||
|
|
|
Section 5F - Twin Clutch Transmission/Transaxle
| 09912–34510 |
|
09913–50121 |
|
| Case separator | Oil seal remover | ||
|
|
|
||
| 09913–65135 |
|
09913–70123 |
|
| Bearing puller | Bearing installer | ||
|
|
|
||
| 09913–76110 |
 |
09913–76120 |
 |
| Bearing installer | Bearing installer | ||
|
|
|
||
| 09913–76130 |
 |
09913–76140 |
 |
| Bearing installer | Bearing installer | ||
|
|
|
||
| 09913–85210 |
|

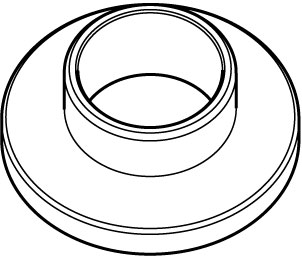

09914–87210 |
 |
| Bearing installer | Oil seal installer | ||
|
|
|
||
| 09915–66110 |
 |
09915–66120 |
 |
| Inner shaft gauge | Lower countershaft gauge | ||
|
|
|
||
| 09915–66130 |
 |
09915–66140 |
 |
| Upper countershaft gauge | Differential gauge | ||
|
|
|
||

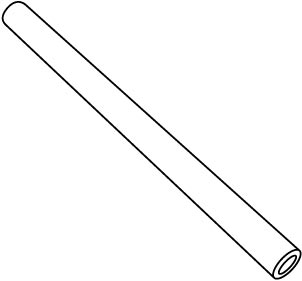

| 09916–66110 |
 |
09916–66120 |
 |
| Transaxle spacer | Threaded shaft | ||
|
|
|
||
| 09921–26010 |
|
09921–96510 |
|
| Bearing outer race remover collar | Oil pan seal cutter | ||
|
|
|
||
| 09923–74510 |
 |
09924–07710 |
|

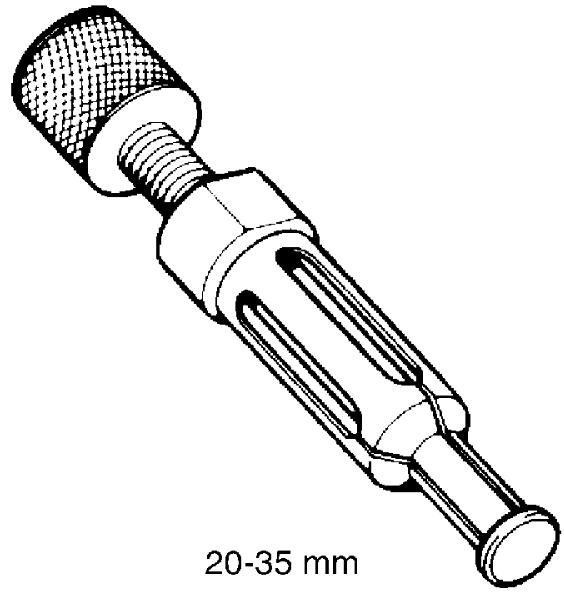

| Bearing puller (20 - 35 mm) | Synchronizer hub installer | ||
|
|
|
||

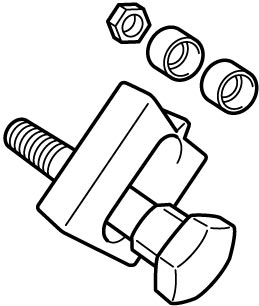

| 09924–16110 |
 |
09924–74510 |
|
| Flywheel holder | Bearing and oil seal handle | ||
|
|
|
||
| 09925–14520 |
|
09925–16010 |
 |
| Bearing and oil seal installer (80 x 50 mm) | Drive gear bearing installer | ||
|
|
|
||

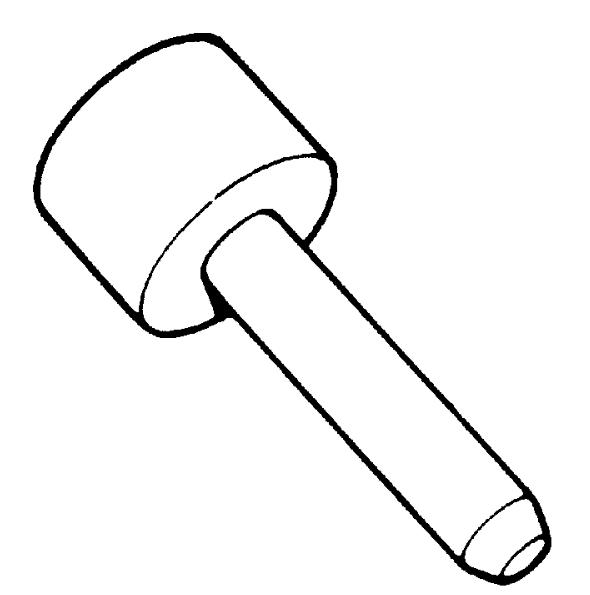

| 09925–58210 |
 |
09925–86010 |
|
| Gear shift shaft oil seal installer | Bearing puller attachment | ||
|
|
|
||
| 09925–86110 |
 |

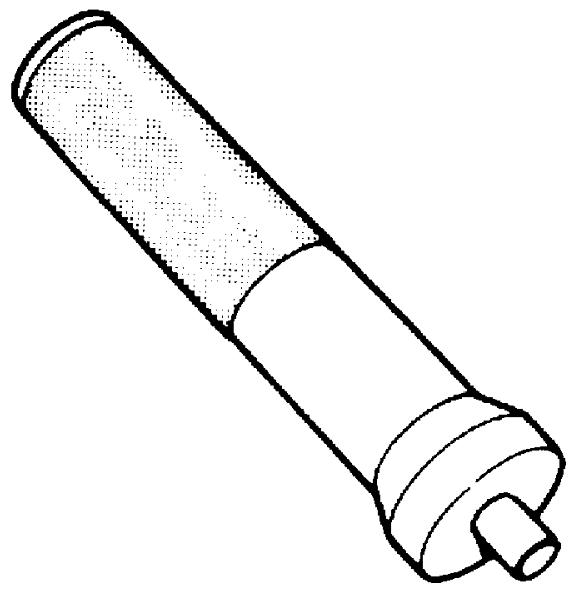

09925–98210 |
 |
| Bearing puller attachment | Input shaft bearing installer | ||
|
|
|
||
| 09925–98221 |
 |
09926–26110 |
 |
| Bearing installer | Oil seal installer | ||
|
|
|
||
| 09926–26120 |
 |
09926–26130 |
 |
| Oil seal installer | Oil seal installer | ||
|
|
|
||
| 09926–27910 |
 |

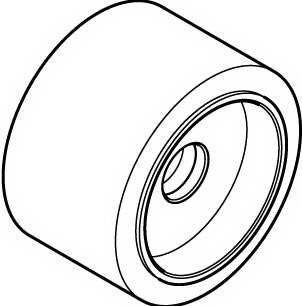

09928–06110 |
 |

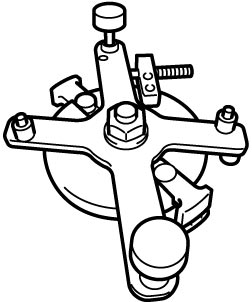

| Oil seal installer | Flywheel preload adapter | ||
|
|
|
||
| 09930–16110 |
 |

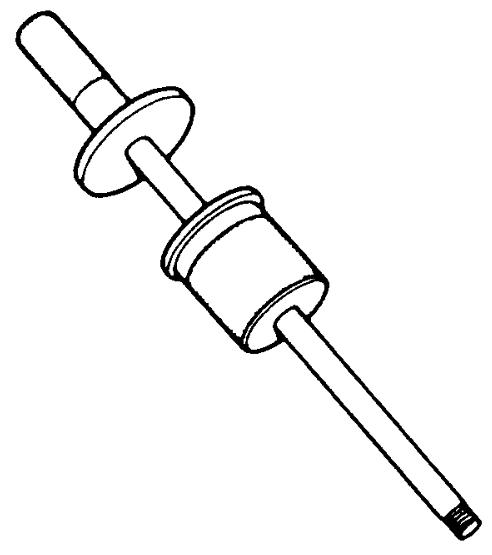

09930–30104 |
|
| Adapter | Sliding shaft | ||
|
|
|
||
| 09940–16110 |
 |

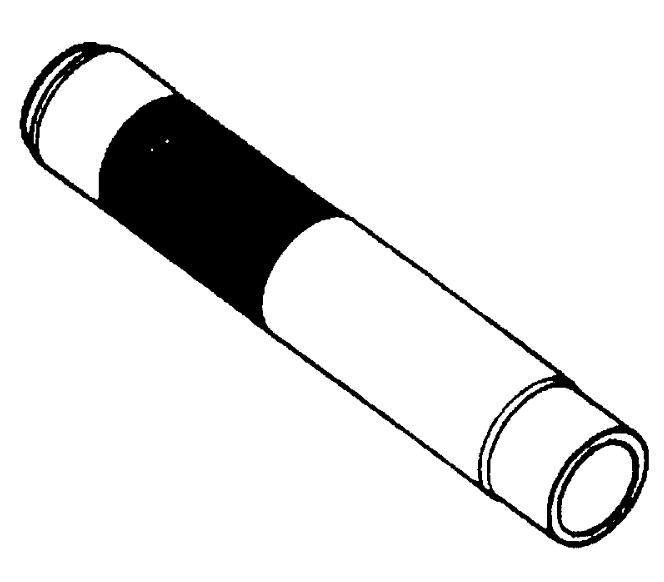

09940–51710 |
 |
| Nut & washer | Bearing installer | ||
|
|
|
||
| 09940–54910 |
|
09942–15511 |
|
| Front fork oil seal install driver | Sliding hammer | ||
|
|
|
||
| 09944–66010 |
|
09944–78210 |
 |
| Oil seal installer | Bearing installer support | ||
|
|
|
||
| 09944–96013 |
|

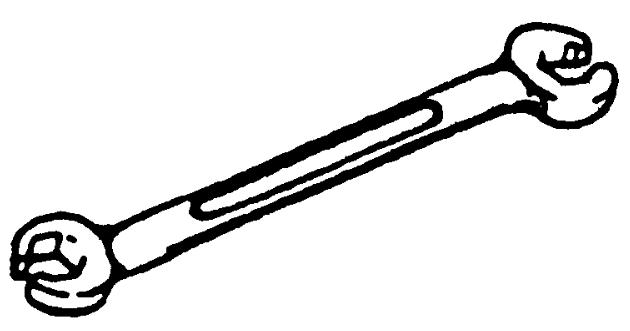

09950–78230 |
 |
| Bearing outer race remover | Flare nut wrench (10 - 11 mm) | ||
|
|
|
||

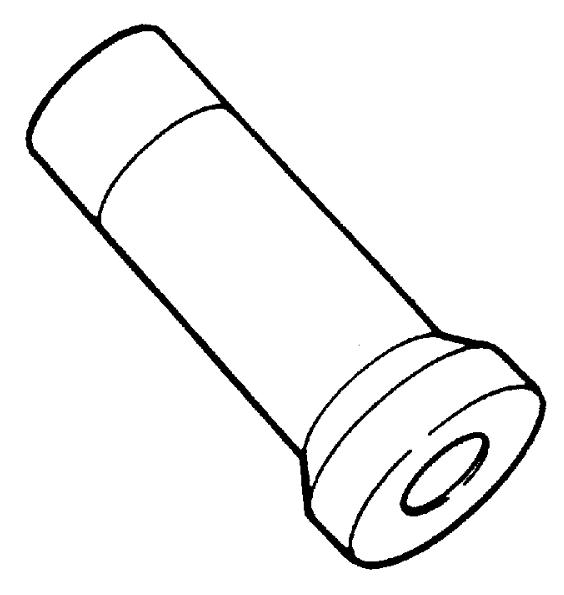

| 09951–76010 |
|
SUZUKI scan tool (Suzuki SDT-II) |
|
| Bearing installer | — | ||
|
|
|
