Section 1 - Engine
Section 1 - Engine
Section 1A - Engine General Information and Diagnosis
M16A

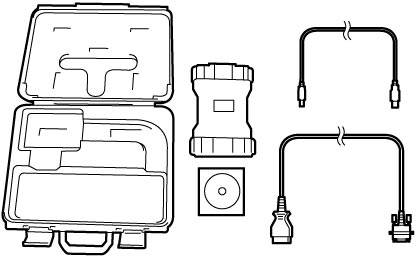

| SUZUKI scan tool (Suzuki SDT-II) |
 |
||
| — | |||
 |
K14C
| SUZUKI scan tool (Suzuki SDT-II) |
|
||
| — | |||
|
|
D16AA
| SUZUKI scan tool (Suzuki SDT-II) |
|
||
| — | |||
|
|
Section 1B - Aux. Emission Control Devices
M16A

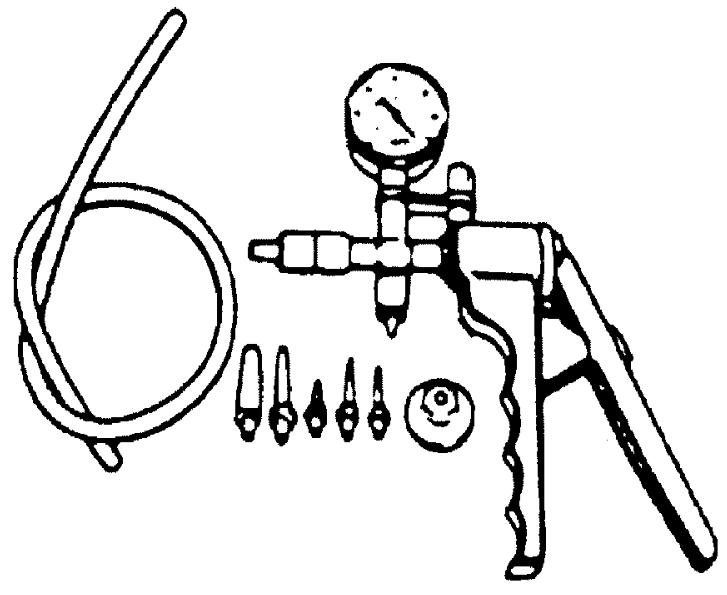

| 09917–47011 |
 |
SUZUKI scan tool (Suzuki SDT-II) |
|
| Vacuum pump gauge | — | ||
|
|
|
K14C
| 09917–47011 |
|
SUZUKI scan tool (Suzuki SDT-II) |
|
| Vacuum pump gauge | — | ||
|
|
|
D16AA
| 09355–35754–601 |
 |

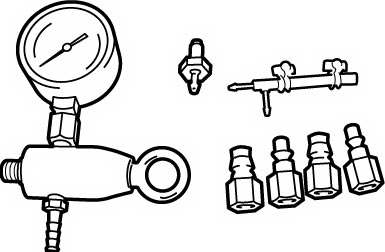

09918–18111 |
 |

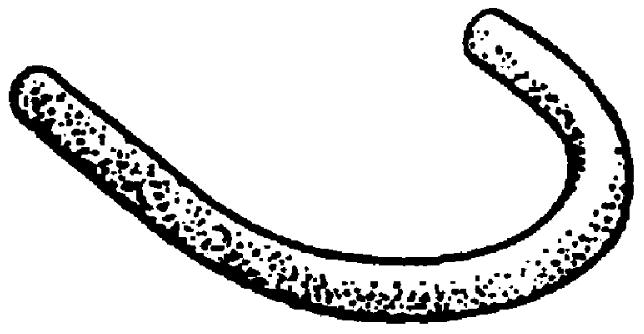

| Hose | Air pressure regulator | ||
|
|
|
||

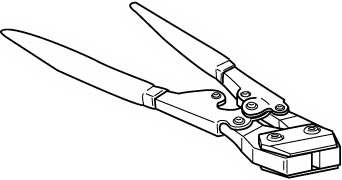

| 09943–57011 |
 |
||
| Band compressor | |||
|
|
Section 1C - Engine Electrical Devices
M16A
| 09917–47011 |
|
SUZUKI scan tool (Suzuki SDT-II) |
|
| Vacuum pump gauge | — | ||
|
|
|
K14C
| 09917–47011 |
|
SUZUKI scan tool (Suzuki SDT-II) |
|
| Vacuum pump gauge | — | ||
|
|
|
D16AA
| 09917–47011 |
|
09918–18111 |
|
| Vacuum pump gauge | Air pressure regulator | ||
|
|
|
||
| SUZUKI scan tool (Suzuki SDT-II) |
|
||
| — | |||
|
|
Section 1D - Engine Mechanical
M16A

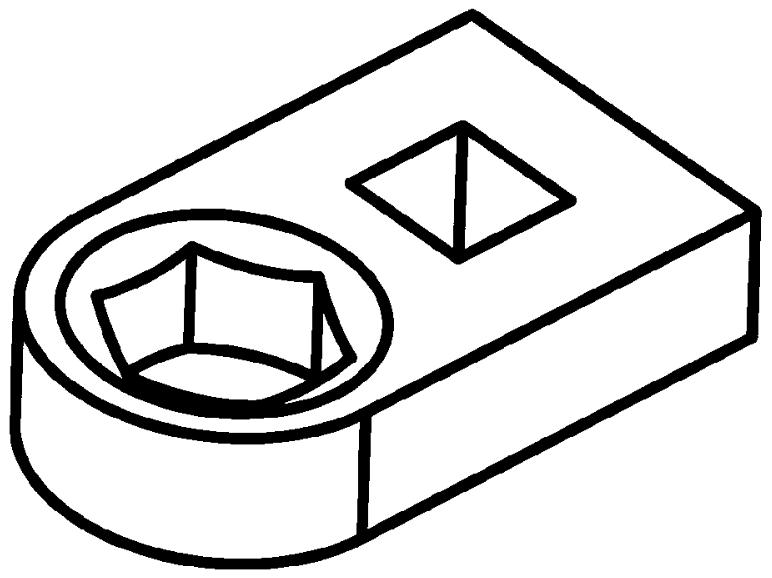

| 09911–05120 |
 |
09911–97720 |
 |
| Box end wrench (14 mm) | Oil seal installer | ||
|
|
|
||
| 09911–97830 |
 |

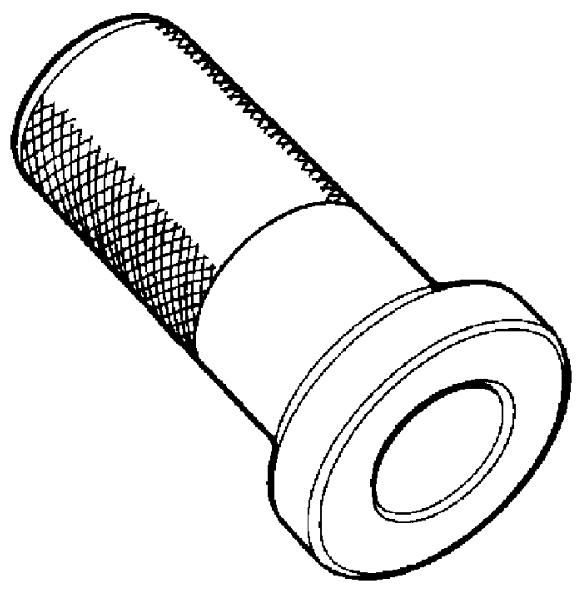

09913–75810 |
 |
| Oil seal installer | Bearing installer | ||
|
|
|
||

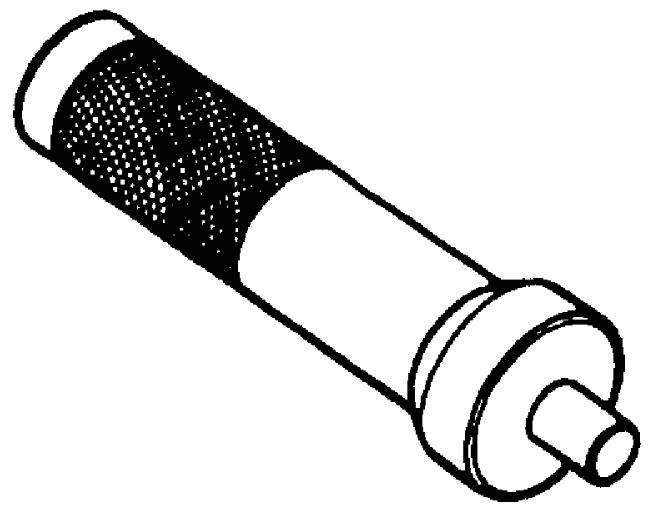

| 09913–75821 |
 |
09915–64512 |
 |

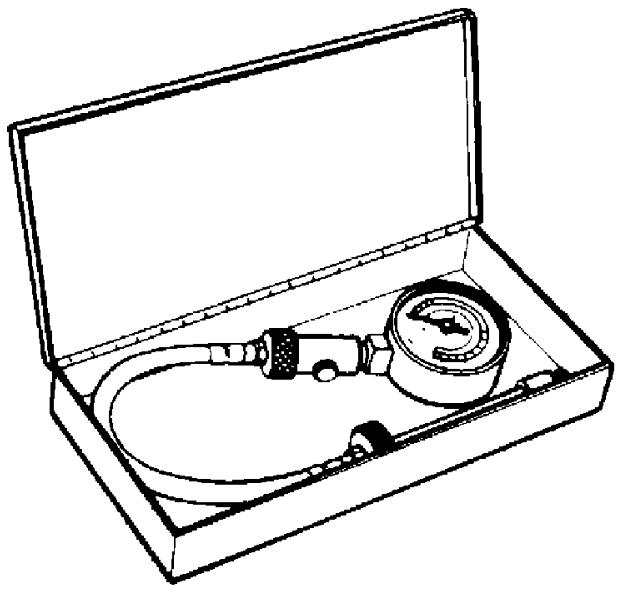

| Bearing installer attachment | Compression gauge | ||
|
|
|
||

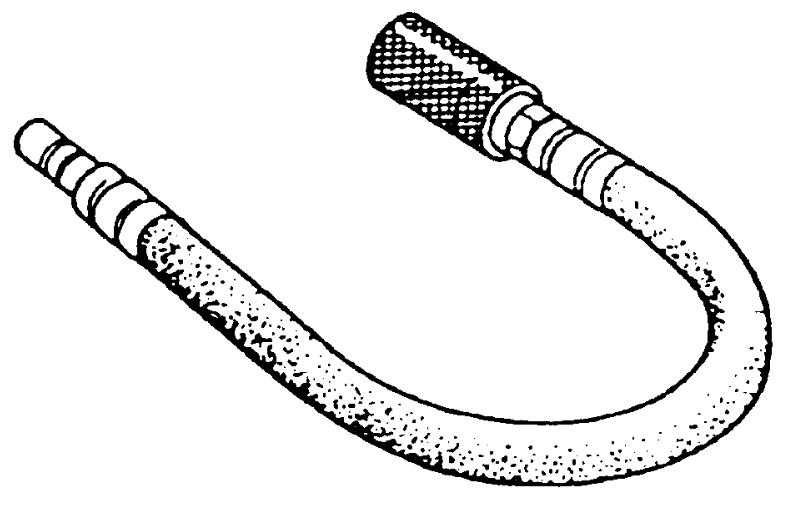

| 09915–64530 |
 |
09915–67010 |
 |

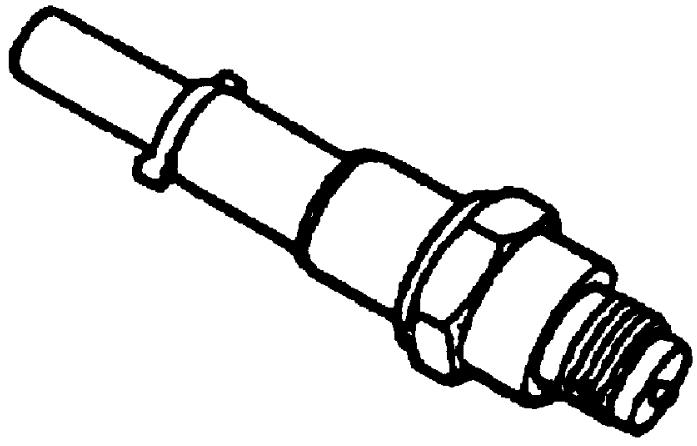

| Compression gauge hose | Compression gauge attachment (C) | ||
|
|
|
||

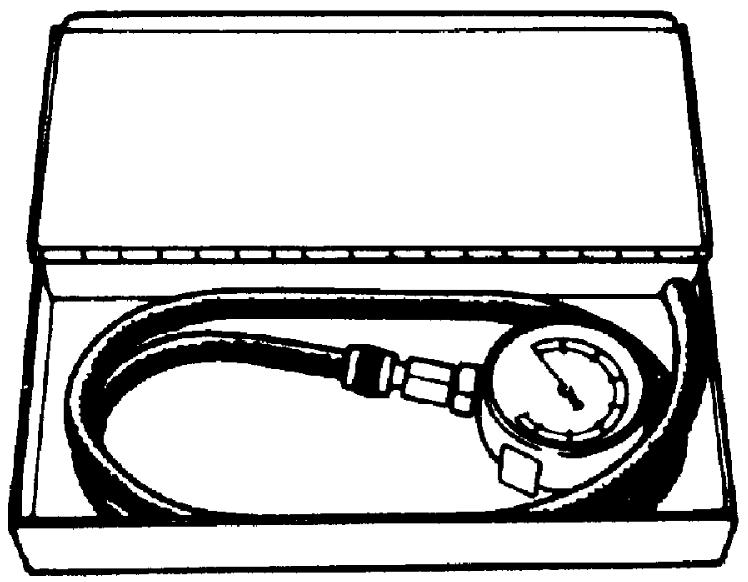

| 09915–67311 |
 |

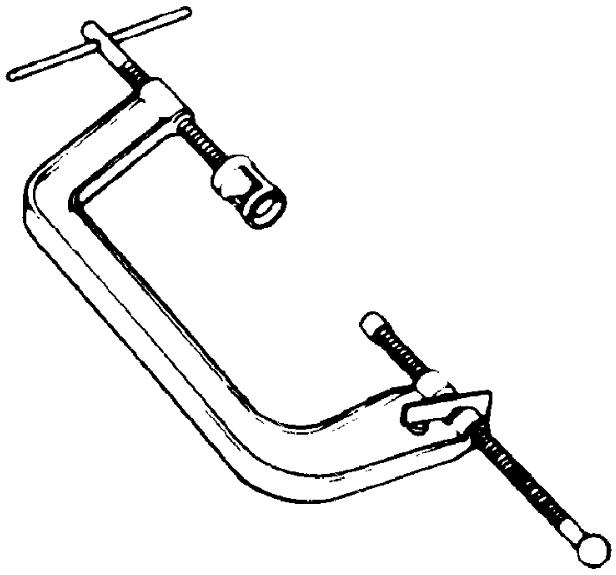

09916–14510 |
 |
| Vacuum gauge | Valve lifter | ||
|
|
|
||
| 09916–14522 |
 |

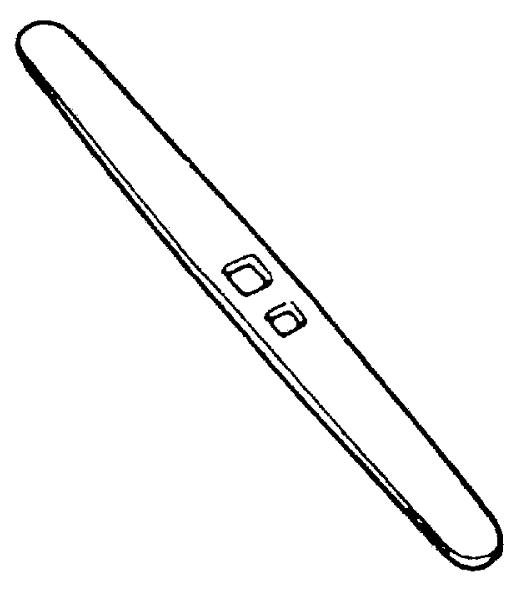

09916–34542 |
 |

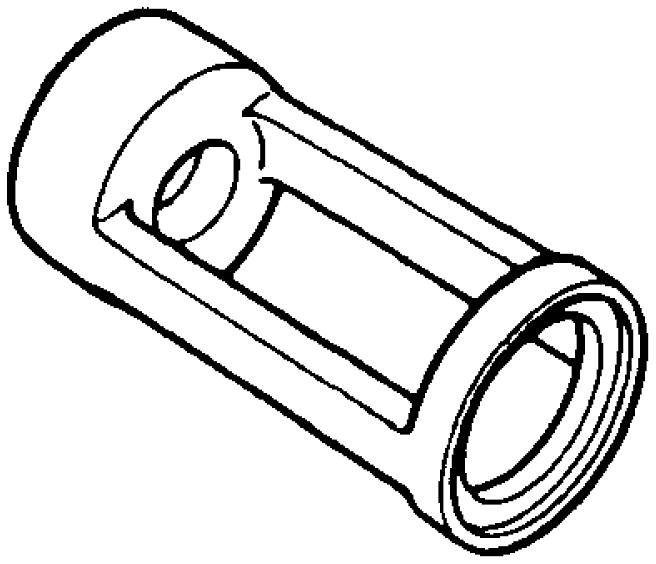

| Valve spring compressor attachment | Reamer handle | ||
|
|
|
||

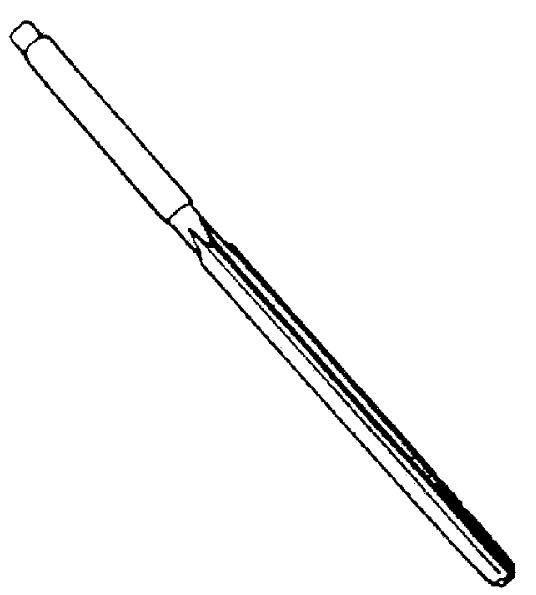

| 09916–34550 |
 |

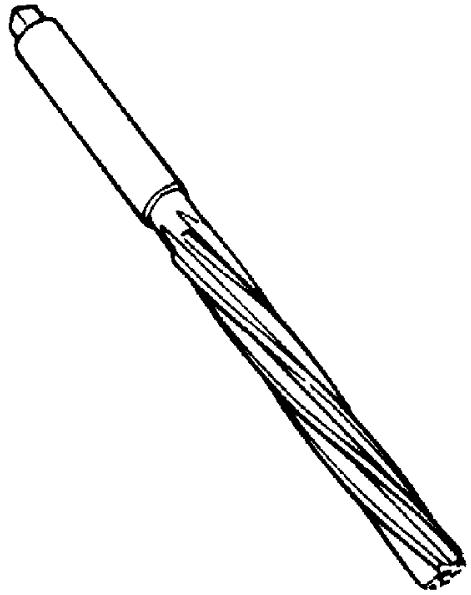

09916–37320 |
 |
| Valve guide reamer (5.5 mm) | Valve guide outer reamer (10.5 mm) | ||
|
|
|
||

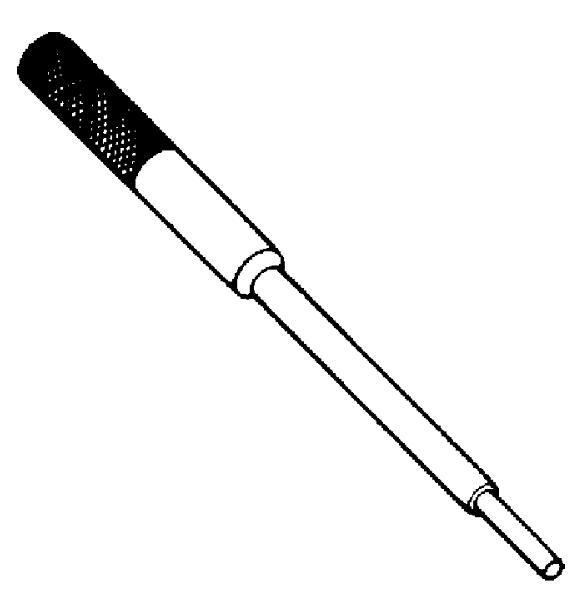

| 09916–44910 |
 |
09916–56011 |
 |

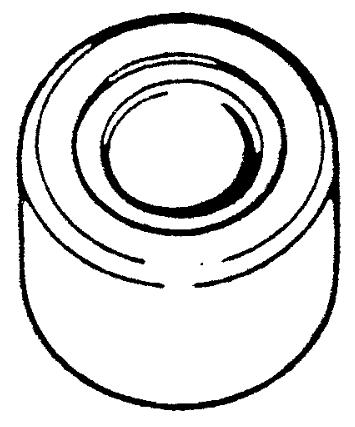

| Valve guide installer / remover | Valve guide installer attachment (protrusion: 11.5 mm) | ||
|
|
|
||
| 09916–58210 |
 |
09916–67021 |
 |

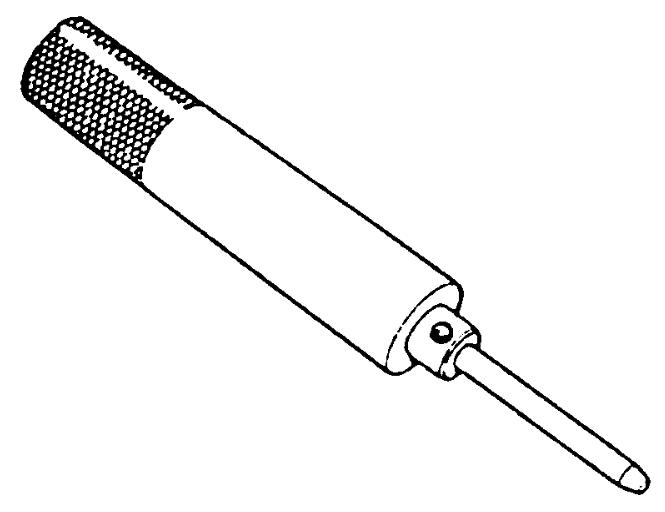

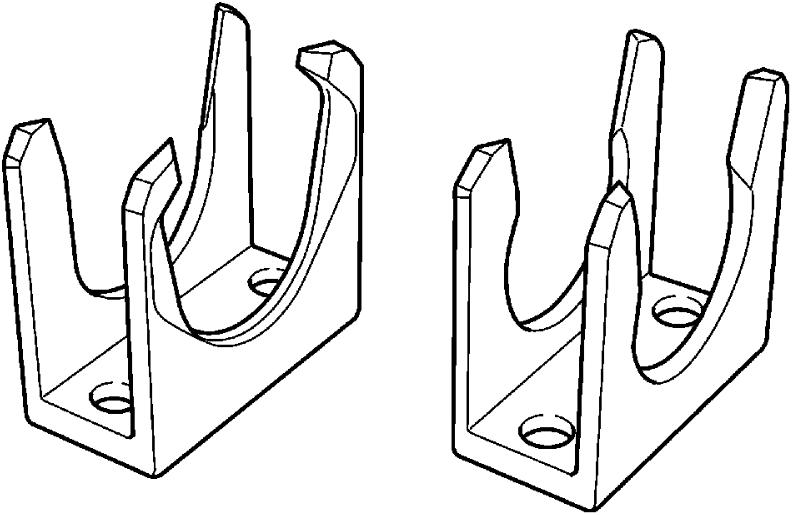

| Valve guide installer handle | Tappet holder | ||
|
|
|
||
| 09916–68010 |
 |
09916–77310 |
 |

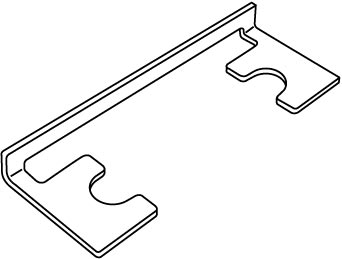

| Tappet holder spacer | Piston ring compressor (50 - 125 mm) | ||
|
|
|
||

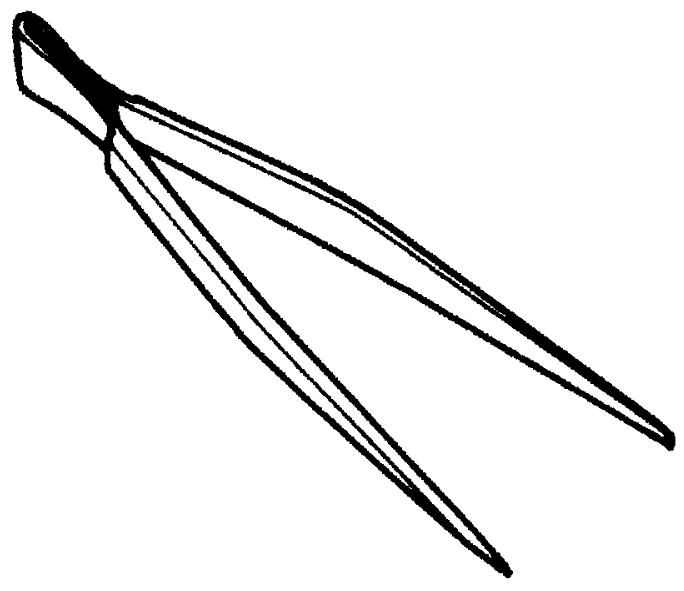

| 09916–84511 |
 |

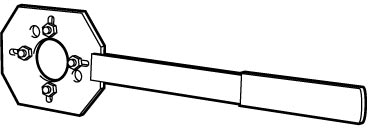

09917–68222 |
 |
| Forceps | Crankshaft pulley holder | ||
|
|
|
||

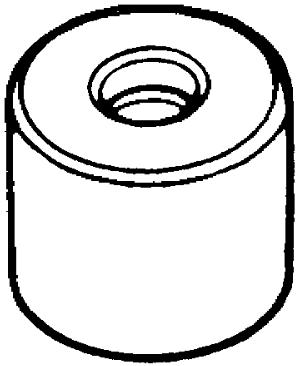

| 09917–98221 |
 |

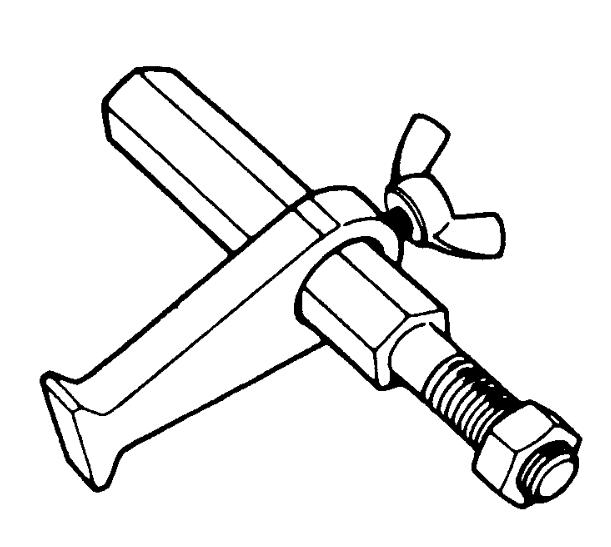

09924–17811 |
 |
| Valve guide stem attachment | Flywheel holder | ||
|
|
|
||
| 09926–58010 |
 |
09944–36011 |
 |

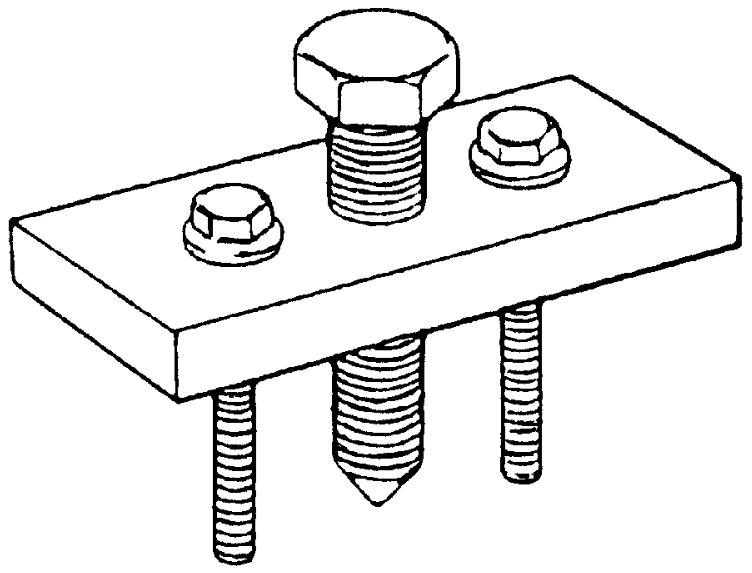

| Bearing remover attachment | Steering wheel remover | ||
|
|
|
K14C

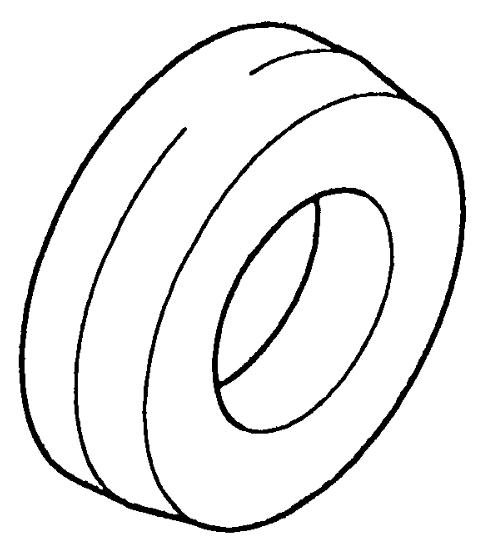

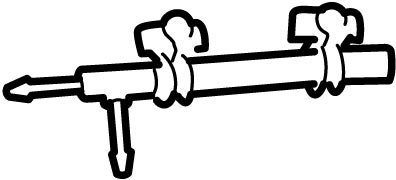

| 09367–06002 |
 |
09911–98410 |
 |
| T-type joint (Reference) | Oil seal installer | ||
|
|
|
||

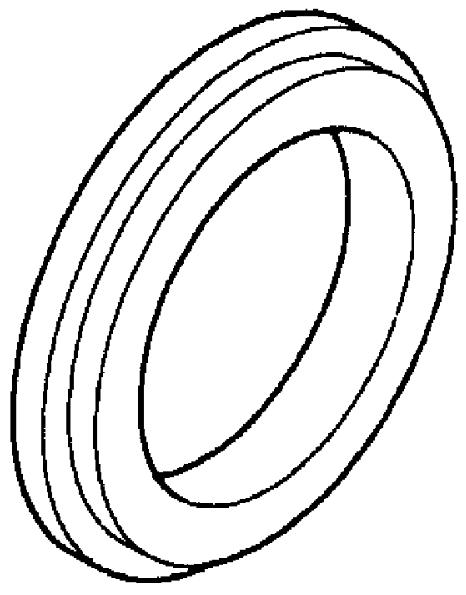

| 09913–75810 |
|
09914–88410 |
 |
| Bearing installer | Oil seal installer | ||
|
|
|
||
| 09915–64512 |
|
09915–64530 |
|
| Compression gauge | Compression gauge hose | ||
|
|
|
||

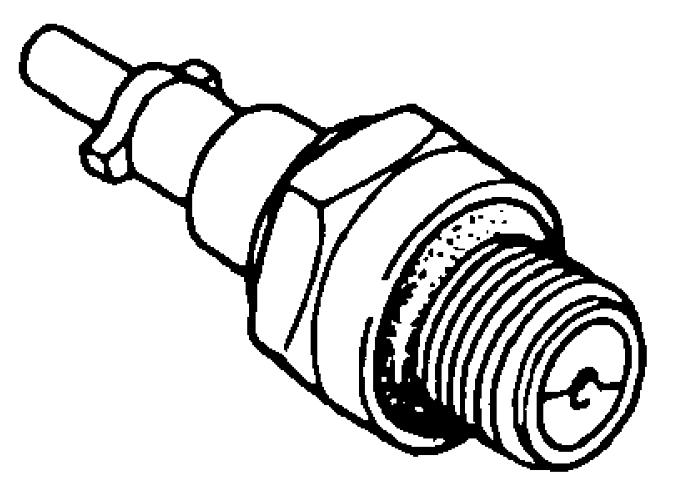

| 09915–64550 |
 |
09915–67311 |
|
| Compression gauge attachment (B) | Vacuum gauge | ||
|
|
|
||
| 09916–14510 |
|
09916–14530 |
 |

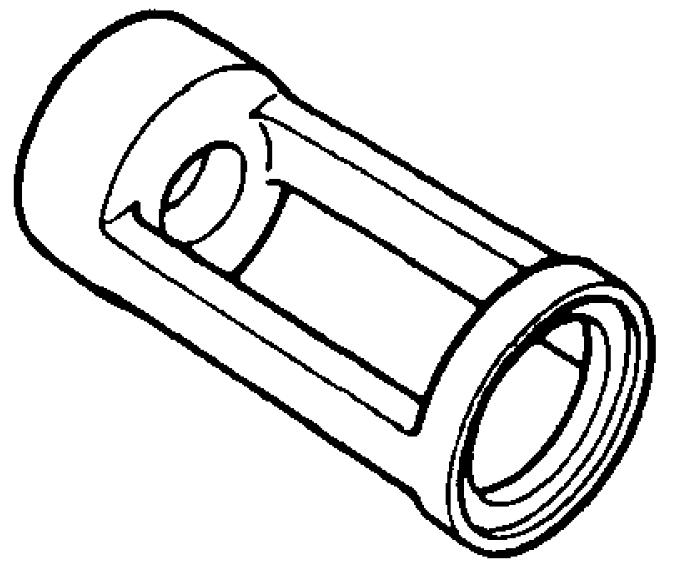

| Valve lifter | Valve spring compressor attachment | ||
|
|
|
||

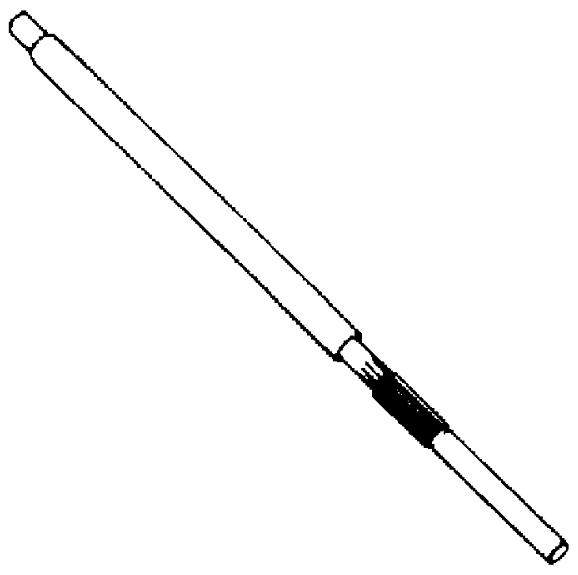

| 09916–34542 |
|
09916–34570 |
 |
| Reamer handle | Valve guide reamer (5 mm) | ||
|
|
|
||
| 09916–37320 |
|
09916–43211 |
 |

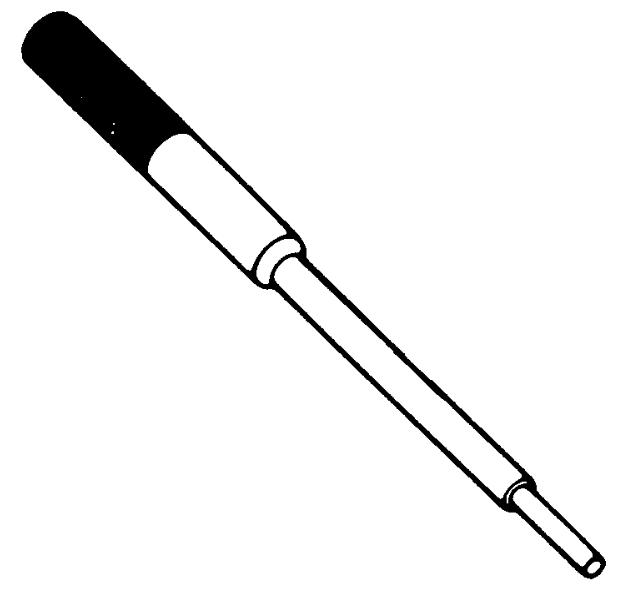

| Valve guide outer reamer (10.5 mm) | Valve guide remover (4.4 mm) | ||
|
|
|
||

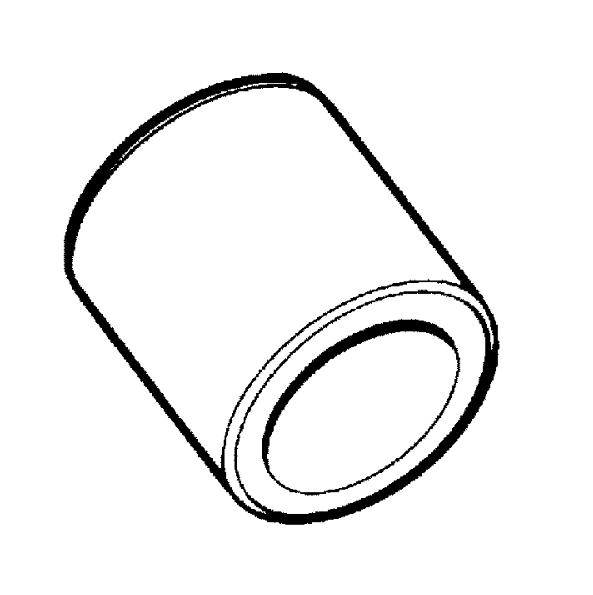

| 09916–43220 |
 |

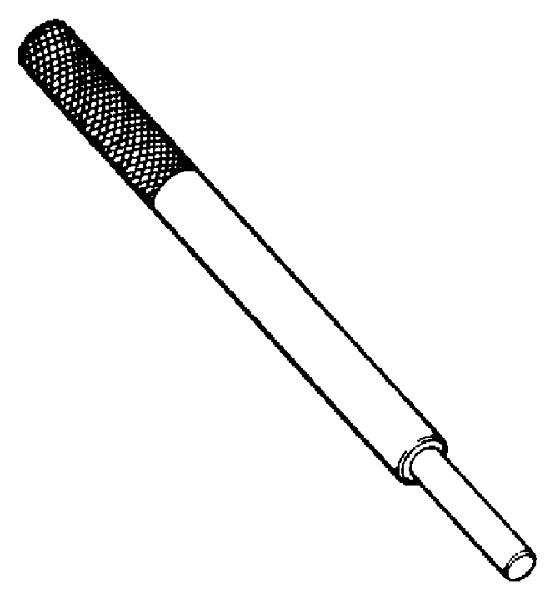

09916–44310 |
 |
| Valve guide installer attachment | Valve guide remover (5 mm) | ||
|
|
|
||

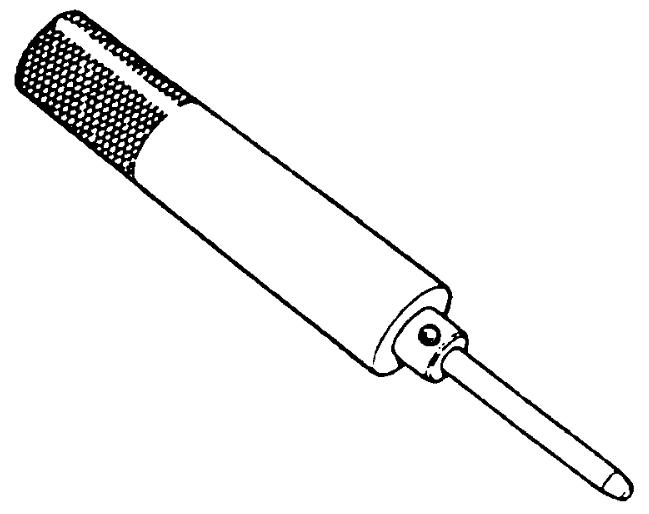

| 09916–56011 |
|
09916–57330 |
 |
| Valve guide installer attachment (protrusion: 11.5 mm) | Valve guide installer handle | ||
|
|
|
||
| 09916–77310 |
|
09916–84511 |
|
| Piston ring compressor (50 - 125 mm) | Forceps | ||
|
|
|
||
| 09917–47011 |
|
09917–68222 |
|
| Vacuum pump gauge | Crankshaft pulley holder | ||
|
|
|
||
| 09917–98221 |
|
09919–56510 |
 |

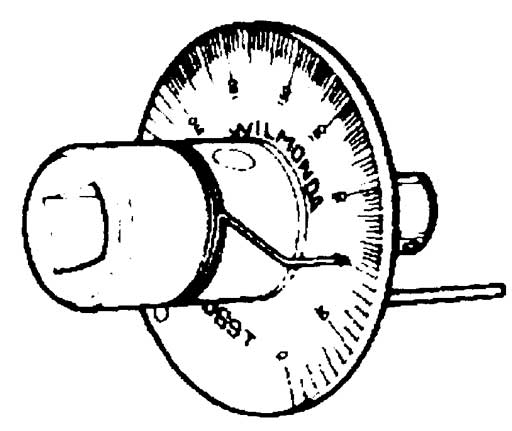

| Valve guide stem attachment | Tightening angle gauge | ||
|
|
|
||
| 09924–17811 |
|
09926–58010 |
|
| Flywheel holder | Bearing remover attachment | ||
|
|
|
||
| 09944–36011 |
|
||
| Steering wheel remover | |||
|
|
D16AA
| 09910–26510 |
 |
09911–97920 |
 |

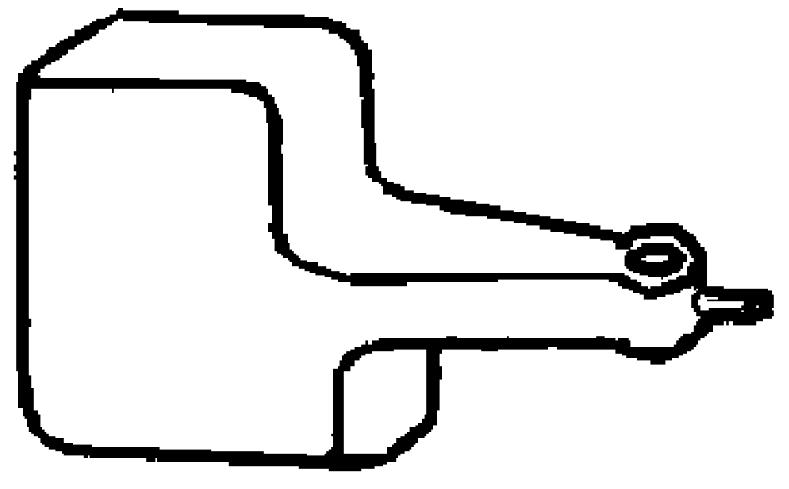

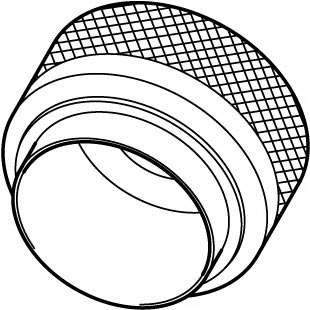

| Dial gauge support | Crankshaft oil seal installer | ||
| OUT 0000005
|
|
||
| 09912–37910 |
 |

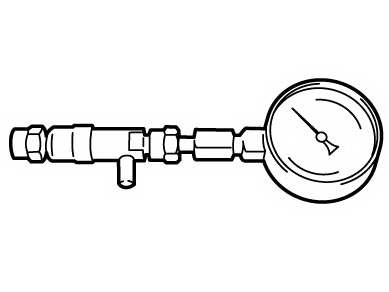

09912–57822 |
 |

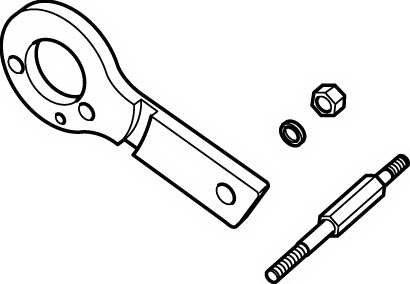

| Crankshaft TDC positioner | Compression gauge | ||
|
|
|
||
| 09912–97940 |
 |
09914–17930 |
 |

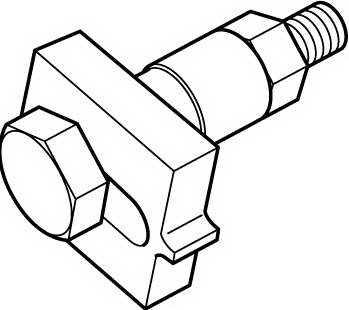

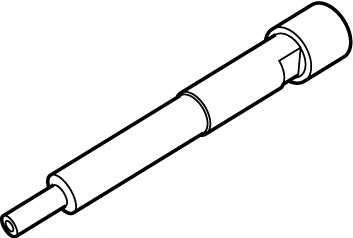

| Dummy injector | Flywheel holder | ||
|
|
|
||
| 09914–87920 |
 |
09916–14510 |
|
| Oil seal installer | Valve lifter | ||
|
|
|
||

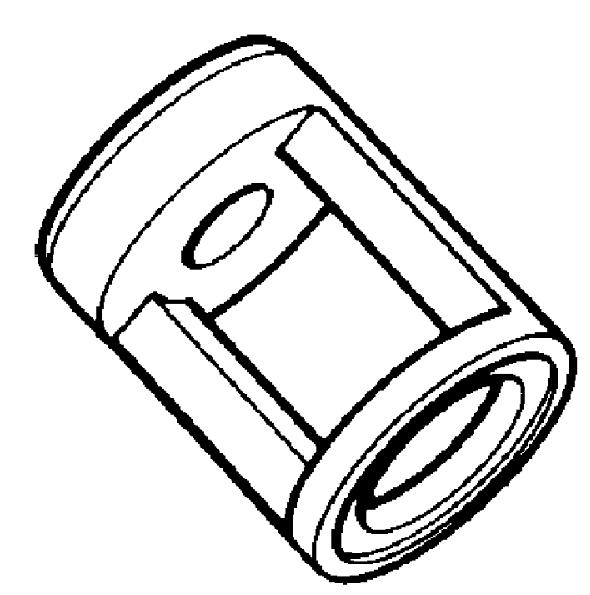

| 09916–14910 |
 |

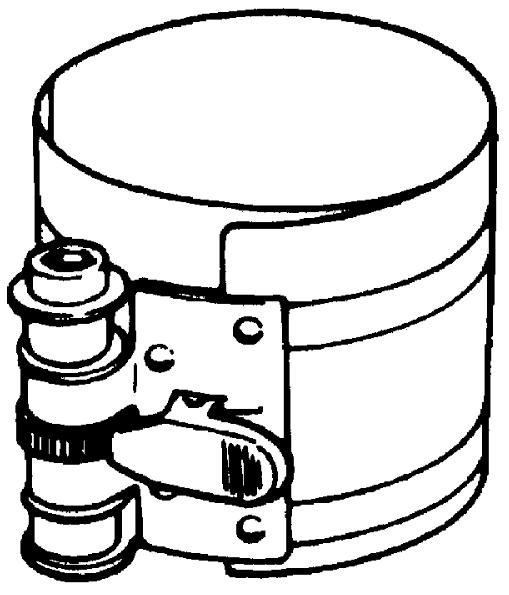

09916–77310 |
|
| Valve spring compressor attachment | Piston ring compressor (50 - 125 mm) | ||
|
|
|
||
| 09916–84511 |
|

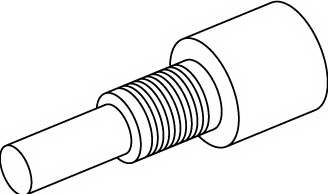

09917–68620 |
 |
| Forceps | Camshaft locking tool | ||
|
|
|
||
| 09917–97930 |
 |

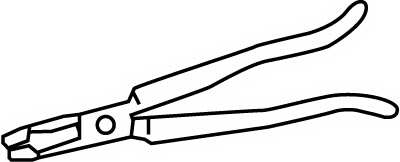

09917–98610 |
 |

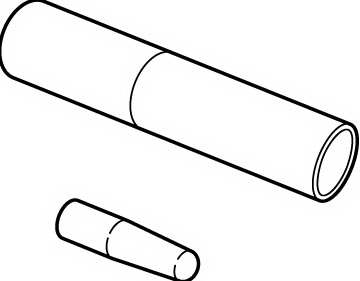

| Valve stem seal installer | Valve stem seal pliers | ||
|
|
KM-840
|
||

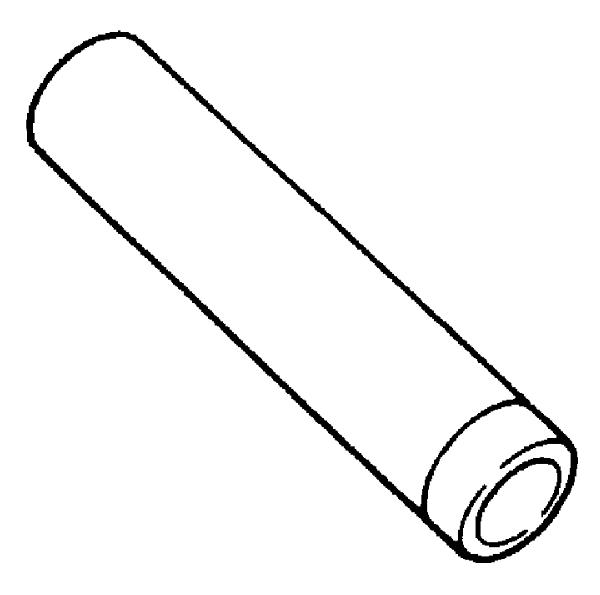

| 09925–98220 |
 |
||
| Bearing installer | |||
|
|
Section 1E - Engine Lubrication System
M16A

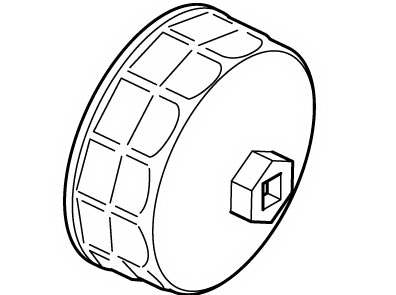

| 09915–47341 |
 |

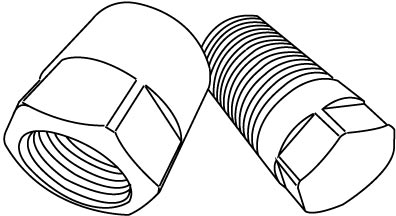

09915–47350 |
 |
| Oil filter wrench socket | Oil filter stand remover | ||
|
|
|
||
| 09915–77311 |
 |
09915–78211 |
 |

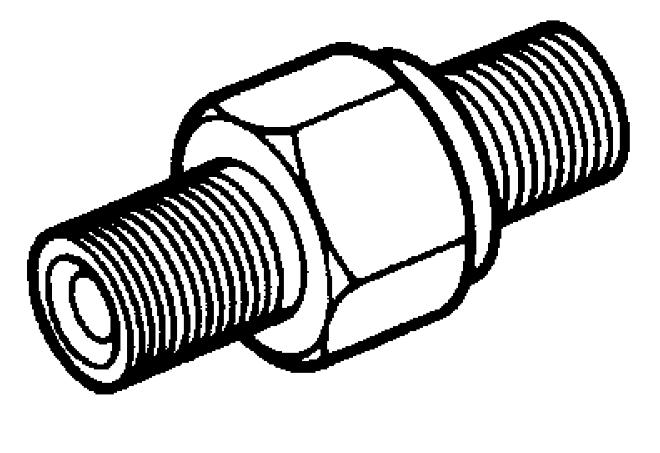

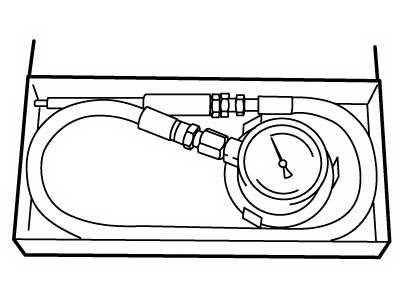

| Oil pressure gauge | Oil pressure gauge attachment | ||
|
|
|
||

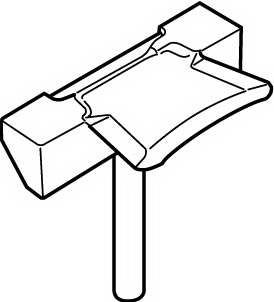

| 09921–96510 |
 |
||
| Oil pan seal cutter | |||
|
|
K14C
| 09915–47341 |
|
09915–47350 |
|
| Oil filter wrench socket | Oil filter stand remover | ||
|
|
|
||
| 09915–77311 |
|
09915–78211 |
|
| Oil pressure gauge | Oil pressure gauge attachment | ||
|
|
|
D16AA
| 09911–97920 |
|
09914–17910 |
 |

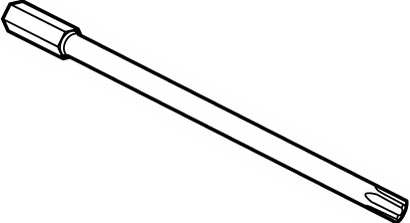

| Crankshaft oil seal installer | Angle key driver (M6) | ||
|
|
|
||

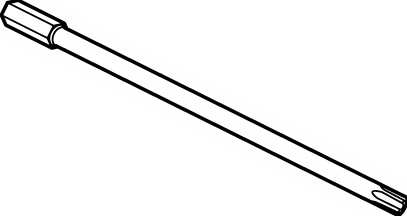

| 09914–17920 |
 |
09914–17930 |
|
| Angle key driver (M8) | Flywheel holder | ||
|
|
|
||

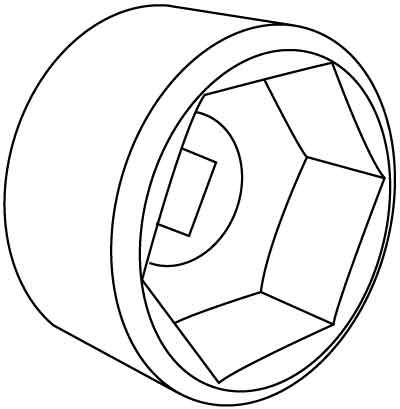

| 09914–86110 |
 |
09915–77311 |
|
| Oil filter wrench socket | Oil pressure gauge | ||
|
|
|
||
| 09915–77420 |
 |
09915–77430 |
 |

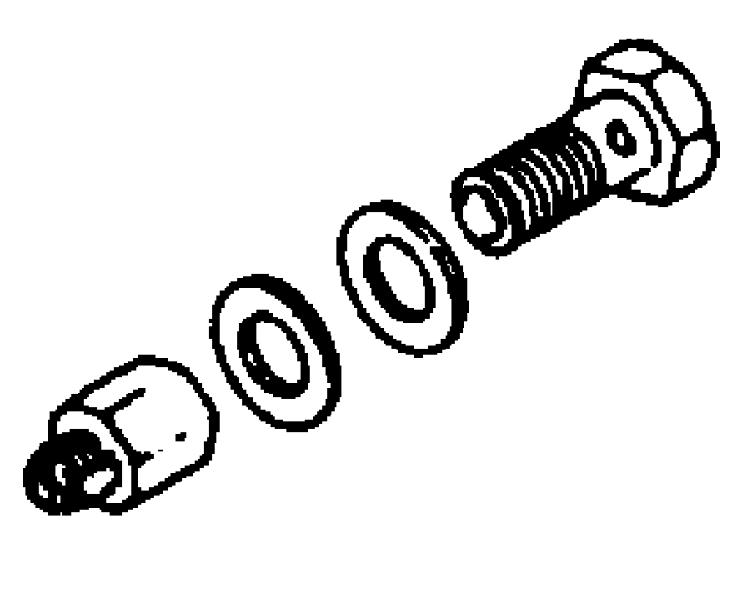

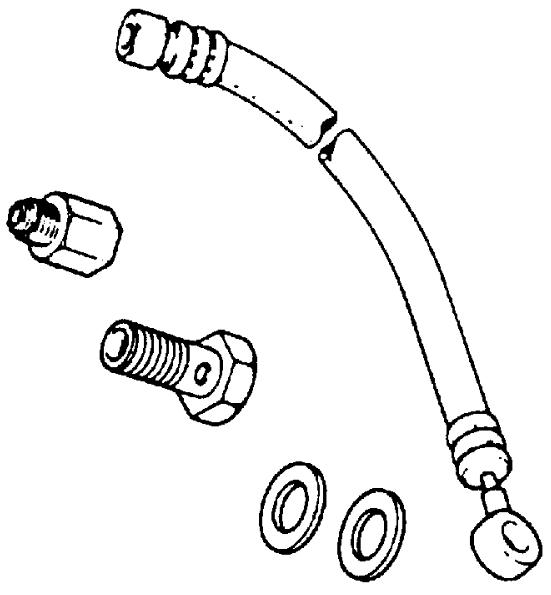

| Oil pressure gauge attachment and hose set | Oil pressure gauge attachment | ||
|
|
|
||
| 09921–96510 |
|
SUZUKI scan tool (Suzuki SDT-II) |
|
| Oil pan seal cutter | — | ||
|
|
|
Section 1F - Engine Cooling System
M16A
| SUZUKI scan tool (Suzuki SDT-II) |
|
||
| — | |||
|
|
K14C
| SUZUKI scan tool (Suzuki SDT-II) |
|
||
| — | |||
|
|
D16AA
| SUZUKI scan tool (Suzuki SDT-II) |
|
||
| — | |||
|
|
Section 1G - Fuel System
M16A
| 09912–57610 |
 |

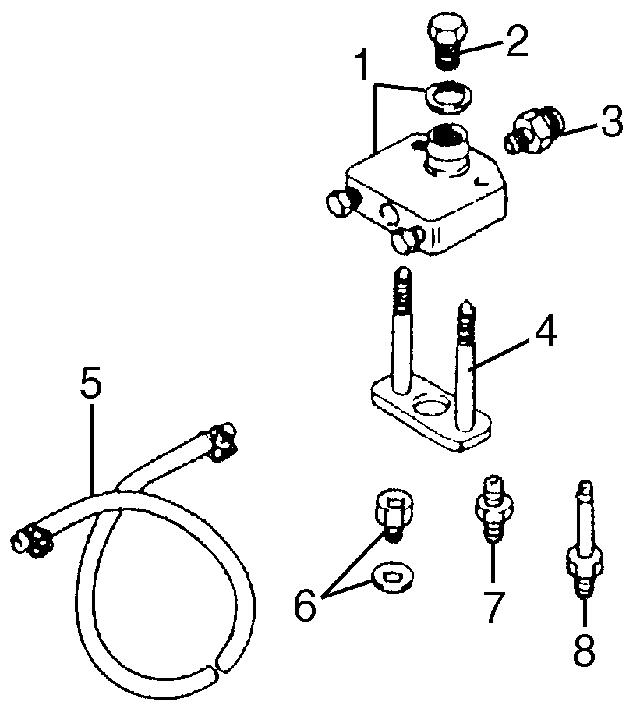

09912–58421 |
 |

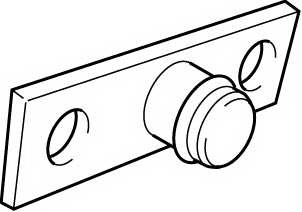

| Injector checking tool plate | Checking tool set | ||
|
|
This kit includes the following items. 1. Tool body and washer 2. Body plug 3. Body attachment-1 4. Holder 5. Return hose and clamp 6. Body attachment-2 and washer 7. Hose attachment-1, 8. Hose attachment-2
|
||

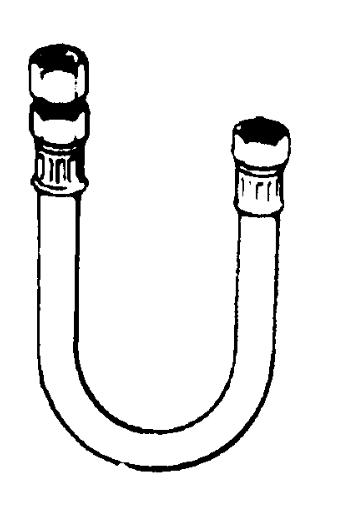

| 09912–58432 |
 |
09912–58442 |
 |

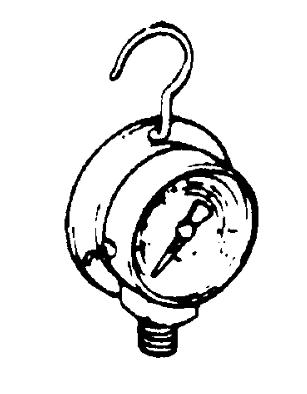

| Fuel pressure gauge hose | Fuel pressure gauge | ||
| This tool is included in fuel pressure gauge set (09912-58413).
|
This tool is included in fuel pressure gauge set (09912-58413).
|
||
| 09912–58490 |
 |
09930–88530 |
 |

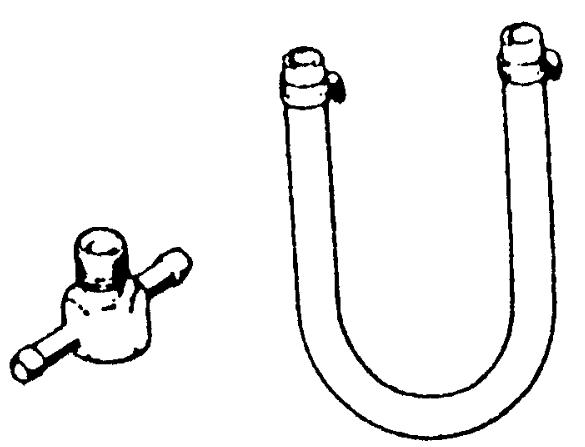

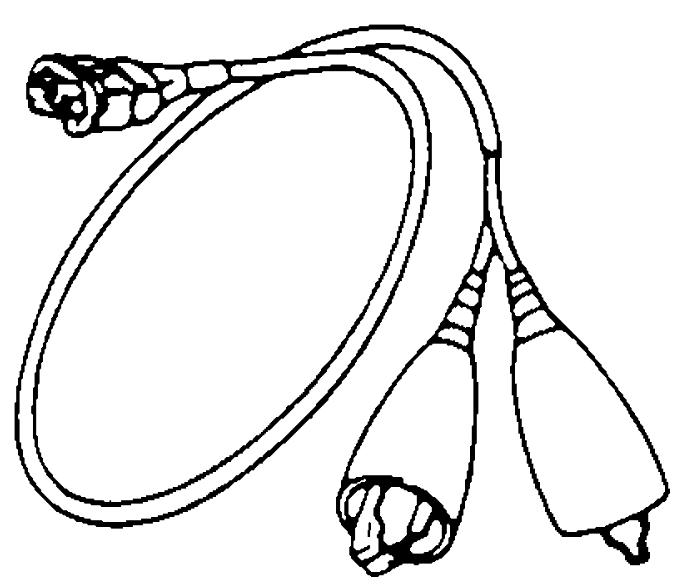

| 3-way joint & hose | Injector test lead | ||
|
|
|
||

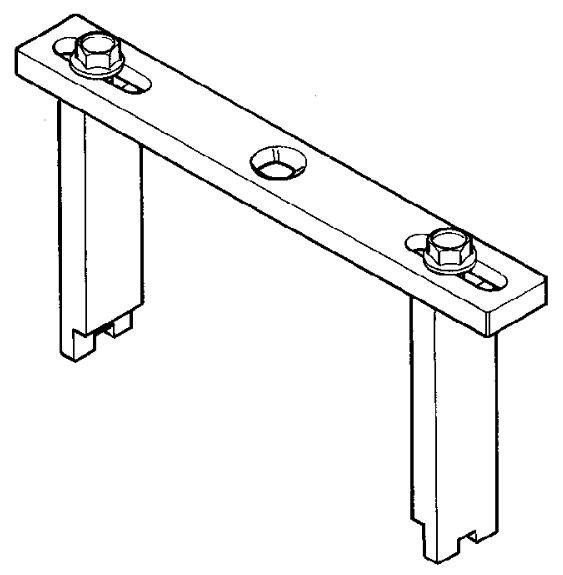

| 09941–51013 |
 |
SUZUKI scan tool (Suzuki SDT-II) |
|
| Lock ring wrench | — | ||
|
|
|
K14C
| 09912–58432 |
|
09912–58442 |
|
| Fuel pressure gauge hose | Fuel pressure gauge | ||
| This tool is included in fuel pressure gauge set (09912-58413).
|
This tool is included in fuel pressure gauge set (09912-58413).
|
||
| 09912–58490 |
|
09912–97130 |
 |
| 3-way joint & hose | Seal ring adjuster | ||
|
|
Bosch: 0 986 616 099
|
||
| 09912–97140 |
 |
09918–35811 |
 |

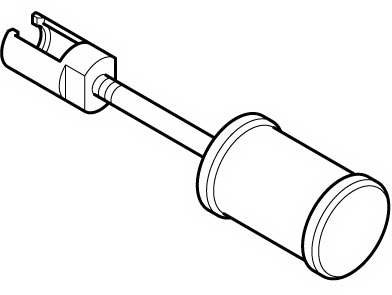

| Seal ring installer | Injector remover | ||
| Bosch: 0 986 616 098
|
|
||
| 09941–51013 |
|
SUZUKI scan tool (Suzuki SDT-II) |
|
| Lock ring wrench | — | ||
|
|
|
D16AA

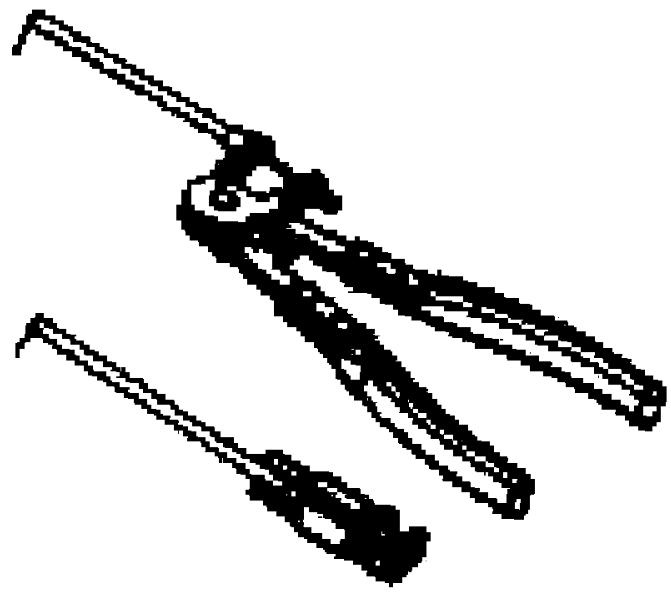

| 09910–68110 |
 |
09912–58432 |
|
| EGR pipe clamp pliers | Fuel pressure gauge hose | ||
|
|
This tool is included in fuel pressure gauge set (09912-58413).
|
||
| 09912–96540 |
 |
09912–96570 |
 |

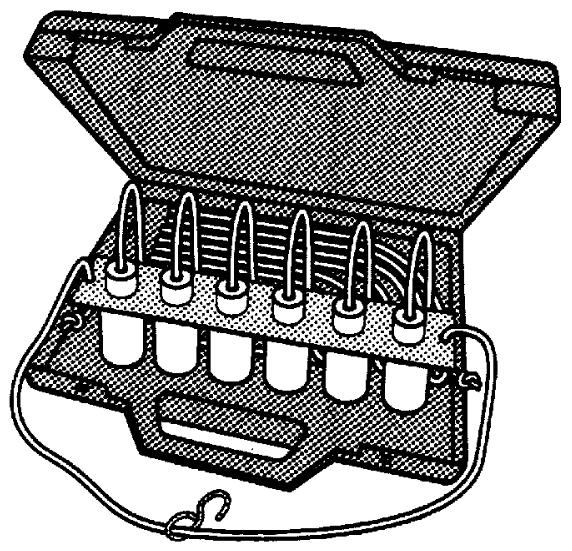

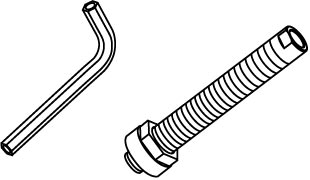

| Injector flow measuring kit | Fuel injector remover | ||
| Mot. 1711
|
|
||

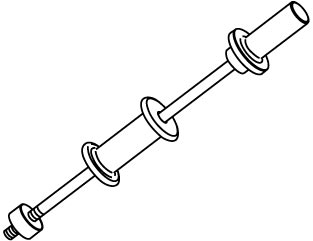

| 09912–96580 |
 |

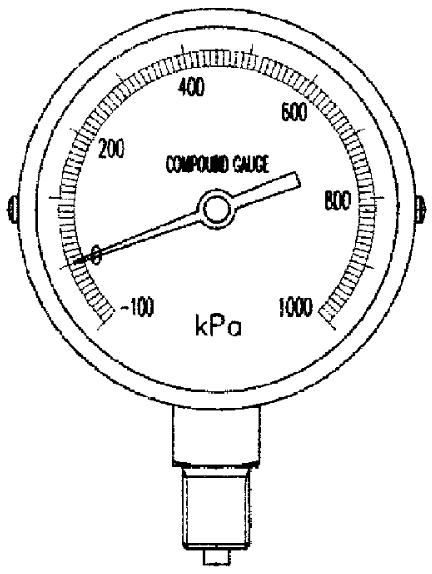

09914–08410 |
 |
| Sliding hammer | Gauge, diesel fuel pressure | ||
|
|
|
||

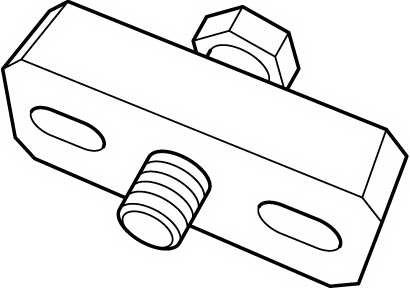

| 09918–47910 |
 |

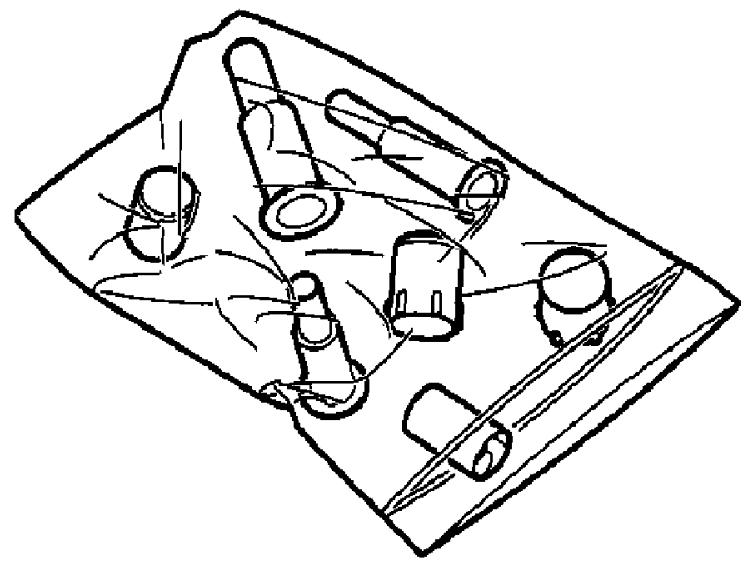

09919–46310 |
 |
| Pulley remover | Fuel system, plug set | ||
|
|
|
||

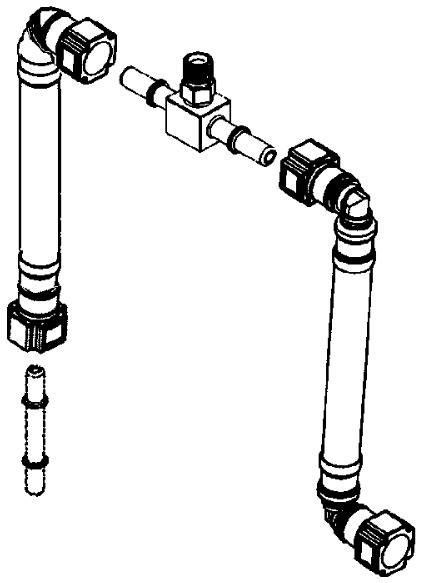

| 09919–48410 |
 |
09919–48610 |
 |

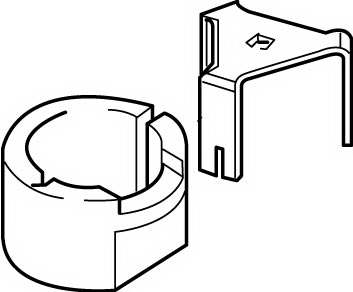

| Fuel pressure gauge adapter set | Fuel filter locking tool | ||
|
|
(EN-46784)
|
||
| 09941–51013 |
|
SUZUKI scan tool (Suzuki SDT-II) |
|
| Lock ring wrench | — | ||
|
|
|
Section 1H - Ignition System
M16A
| 09930–76311 |
 |
SUZUKI scan tool (Suzuki SDT-II) |
|

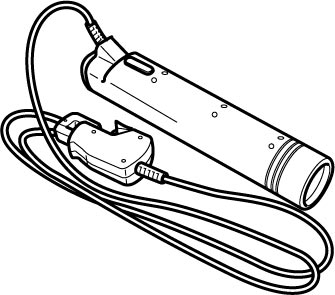

| Timing light | — | ||
|
|
|
K14C
| 09930–76311 |
|
SUZUKI scan tool (Suzuki SDT-II) |
|
| Timing light | — | ||
|
|
|
Section 1J - Charging System
M16A
| 09913–75821 |
|

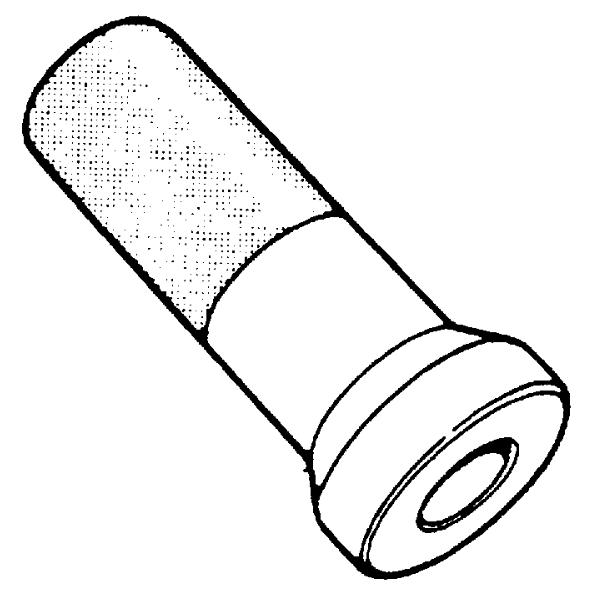

09913–76010 |
 |
| Bearing installer attachment | Bearing installer | ||
|
|
|
K14C

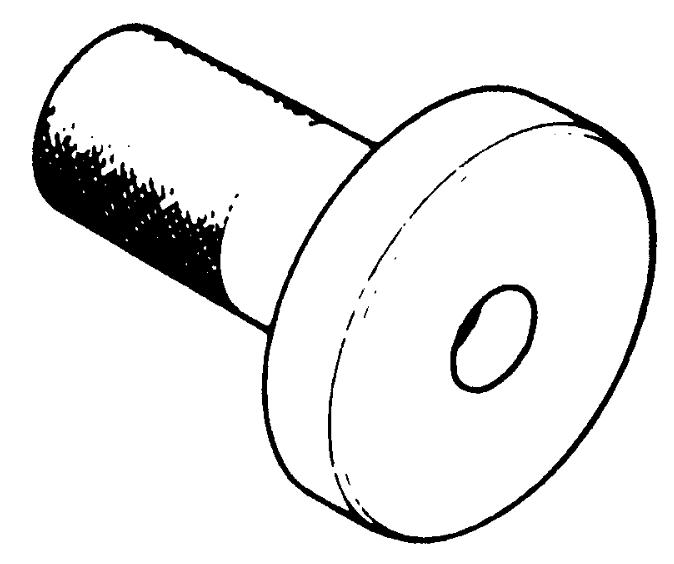

| 09913–75520 |
 |
09913–75821 |
|
| Bearing installer | Bearing installer attachment | ||
|
|
|
D16AA
| 09932–96511 |
 |
||
| Generator pulley remover | |||
|
|
